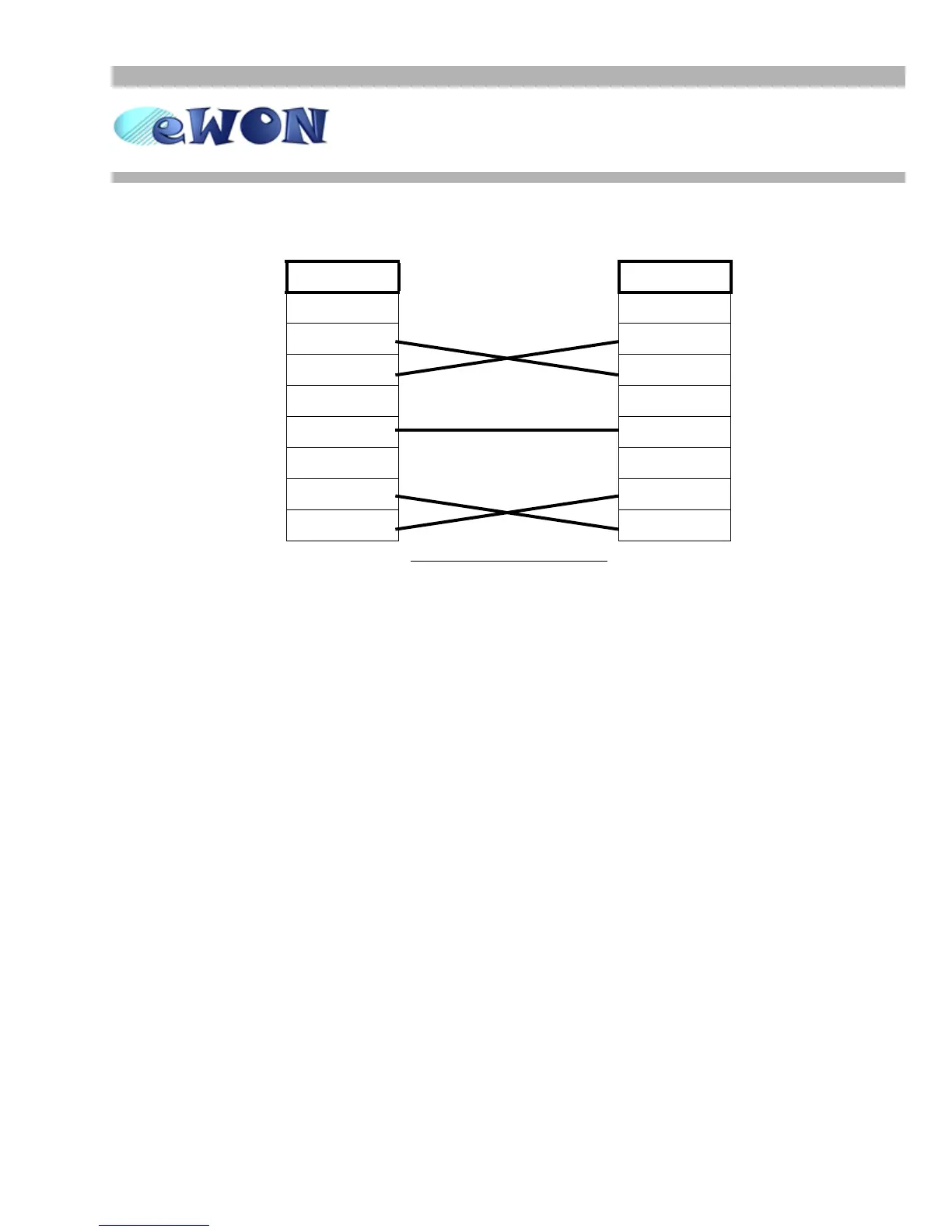

1747-CP3 cable between eWON and SLC-500 - pinout
The connectors are SUBD9 female at both sides.
9-pin eWON
1
2Rx
3Tx
4
5COM
6
7RTS
8CTS
Table 2: 1747-CP3 cable pinout
