eWON500™
The Transparent Gateway
ver 1.0
9/11/05
User Guide

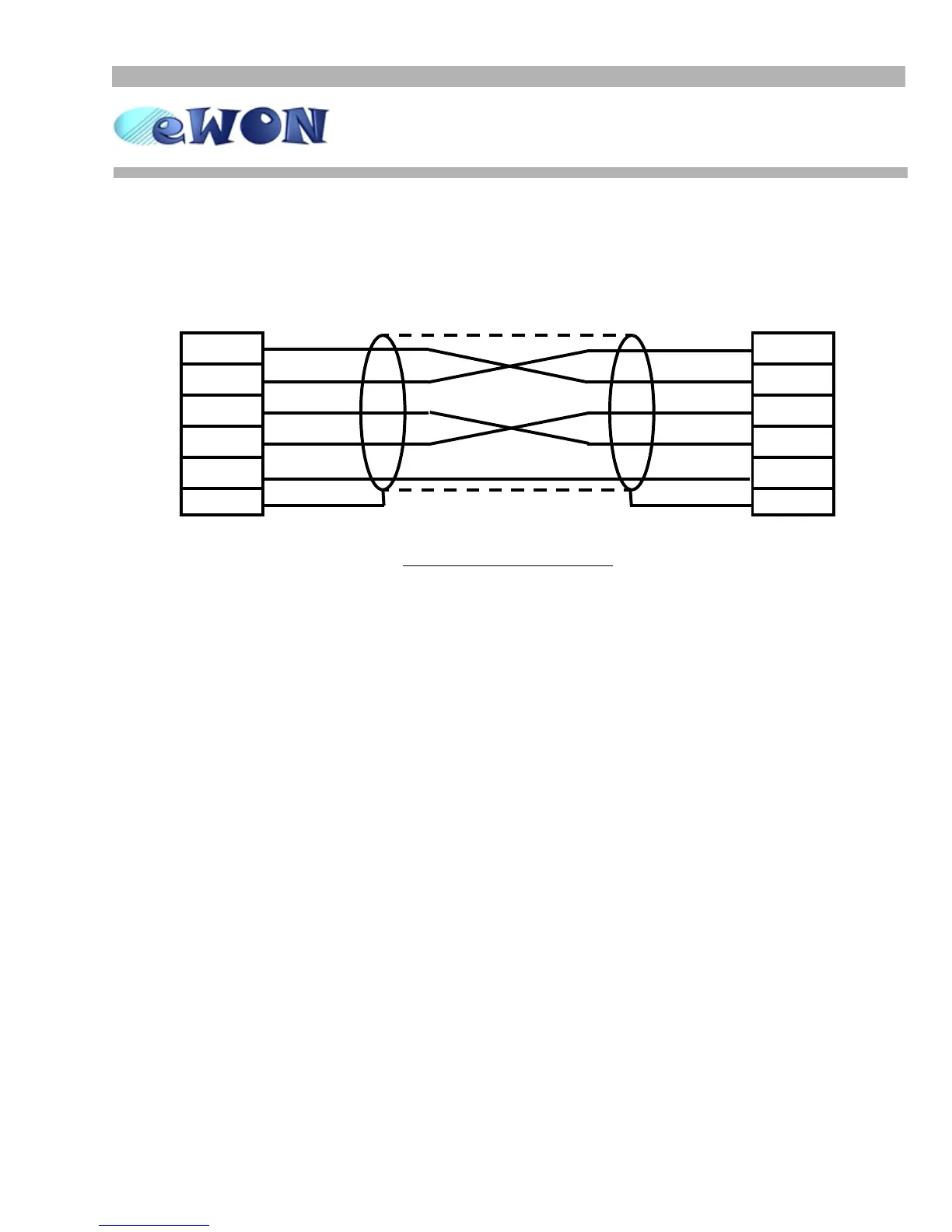

XW2Z-S002 cable between eWON and OMRON PLC - Pinout
9pin 9pin
Dsub (Female) Dsub (Male)
3 SD SD
2
2 RD RD
3
7 RS RS
4
8 CS CS
5
5 SG SG
9
eWON NS-series PT
Table 3: XW2Z-S002 cable pinout
