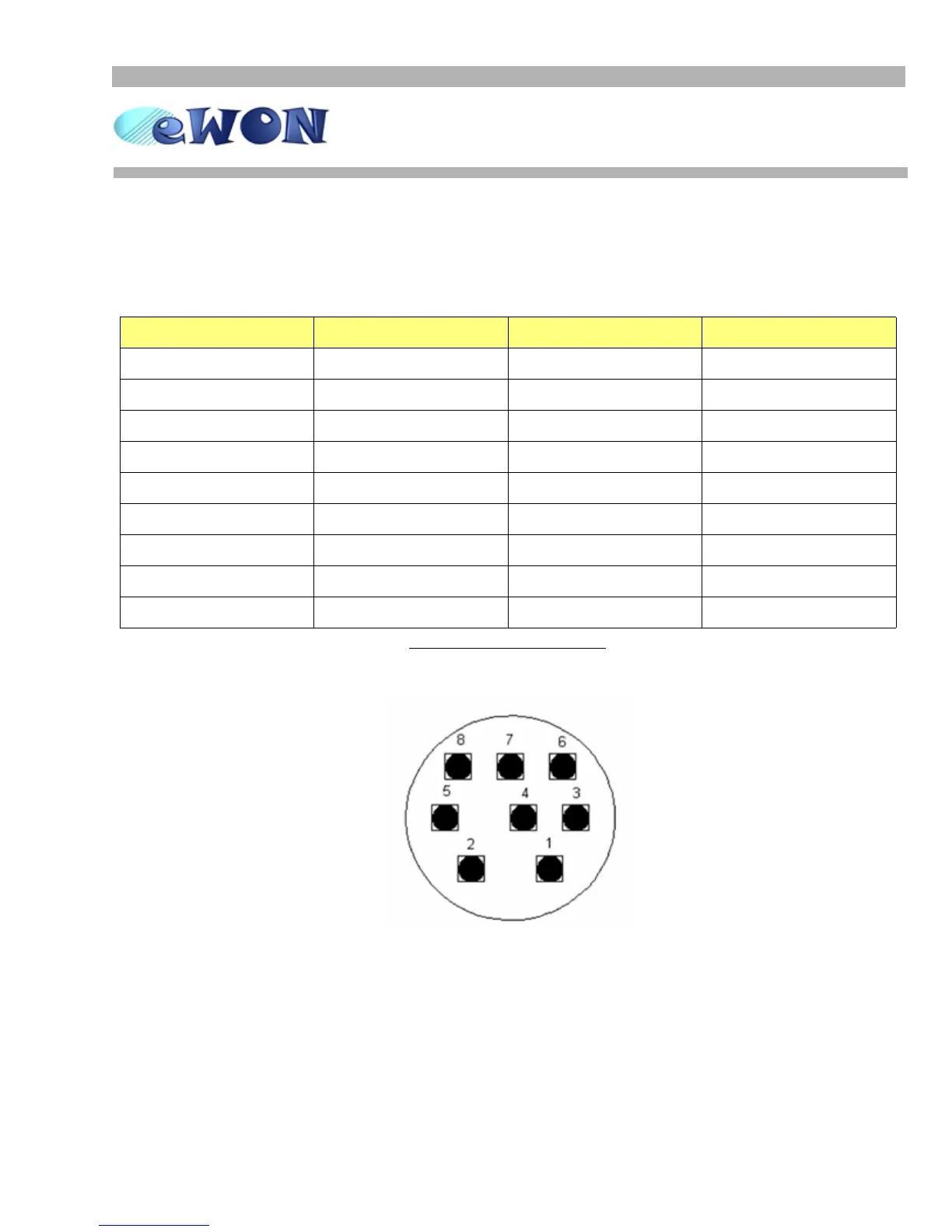

TSX CX 100 Schneider cable (between eWON and the PLC) - Pinout
This 2m cable can be delivered as accessory to connect Shneider PLCs; it has a SUBD9 connector at the eWON
side and a MiniDIN connector at the PLC side.
MiniDIN PIN Schneider Signal Name eWON Signal Name eWON SUBD9 PIN
1 D(B) A+ DB9 pin 3: A+
2 D(A) B- DB9 pin 8: B-
3
4
5
6
7 GND GND DB9 pin 5:GND
8
Connector Shield
Table 1: Schneider cable pinout
