eWON500™
The Transparent Gateway
ver 1.0
9/11/05
User Guide
The FINS Hostlink/FINS TCP gateway configuration
Hardware configuration
• Set up eWON™ dip switches to RS232 mode (All switches OFF) -Refer to appendix for dipswitch explanations
• Connect the
serial cable between your eWON500™ and the PLC (see page 15)
IO server configuration

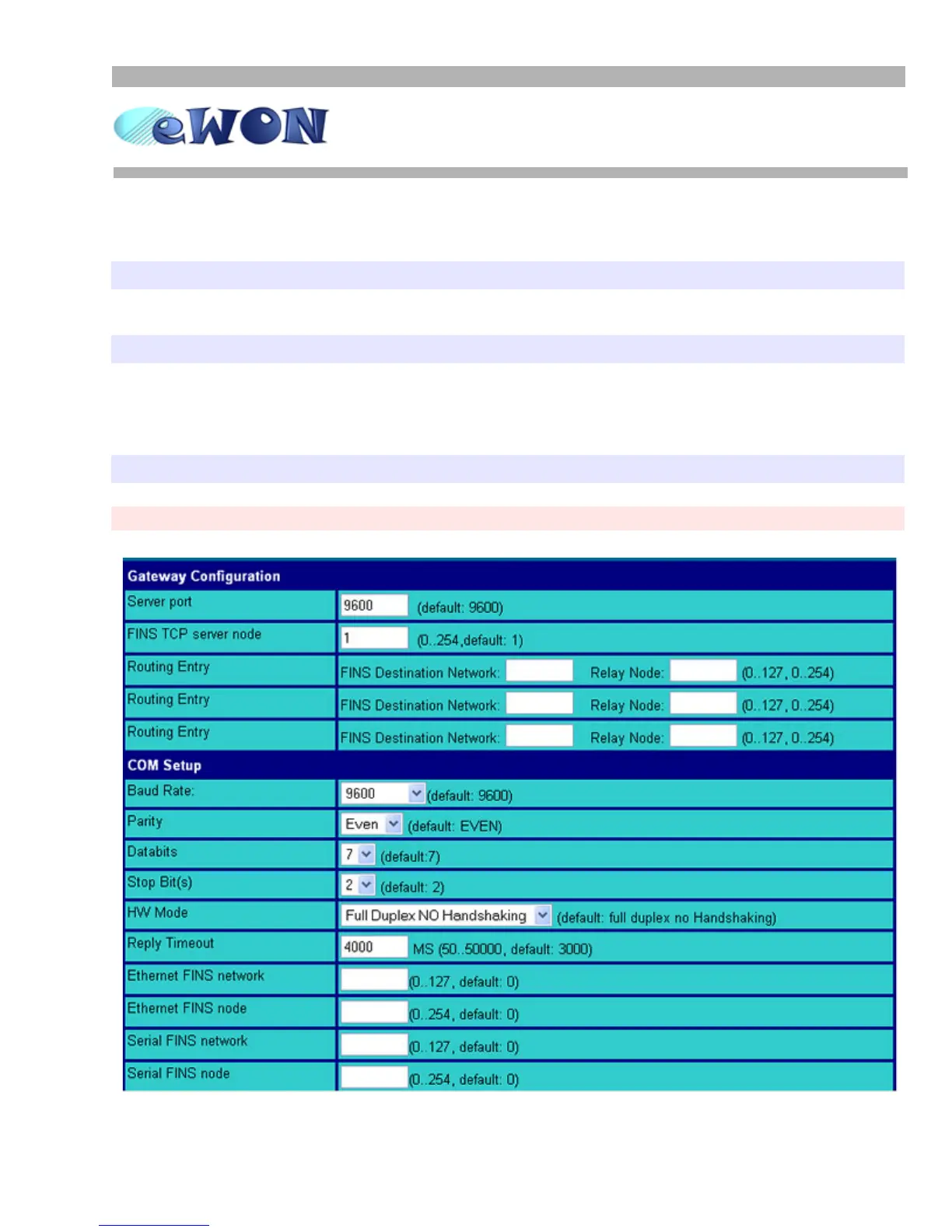

• Go to the FINS IO server page: Configuration/IO Server Config/FINS/Edit
• Set the Server Port and FINS TCP server node according to your device (let the Routing Entry fields empty)
• Set the Baud Rate, Parity, Databits, Stop Bit(s), HW Mode and Reply Timeout with the required values
•Set
Serial FINS network and Serial FINS node to 0 (The data entered in the Gateway part will be used instead)
PLC software configuration
• Check that the entered data match the one entered in the network configuration from CX-Programmer then GoOnline
You are now connected to your PLC through your eWON500™
• Please refer to the Troubleshooting section from this document in case of an issue
