Excelitas Technologies OmniCure SC0750 User Manual

OmniCure® SC- Series
UV Curing Solutions
www.excelitas.com/omnicure
Excelitas Canada Inc. 2021
All rights reserved
035-xxxxxR, rev.1
035-00539R rev 2
035-xxxxxR, rev.1
8
035-00539R rev 5

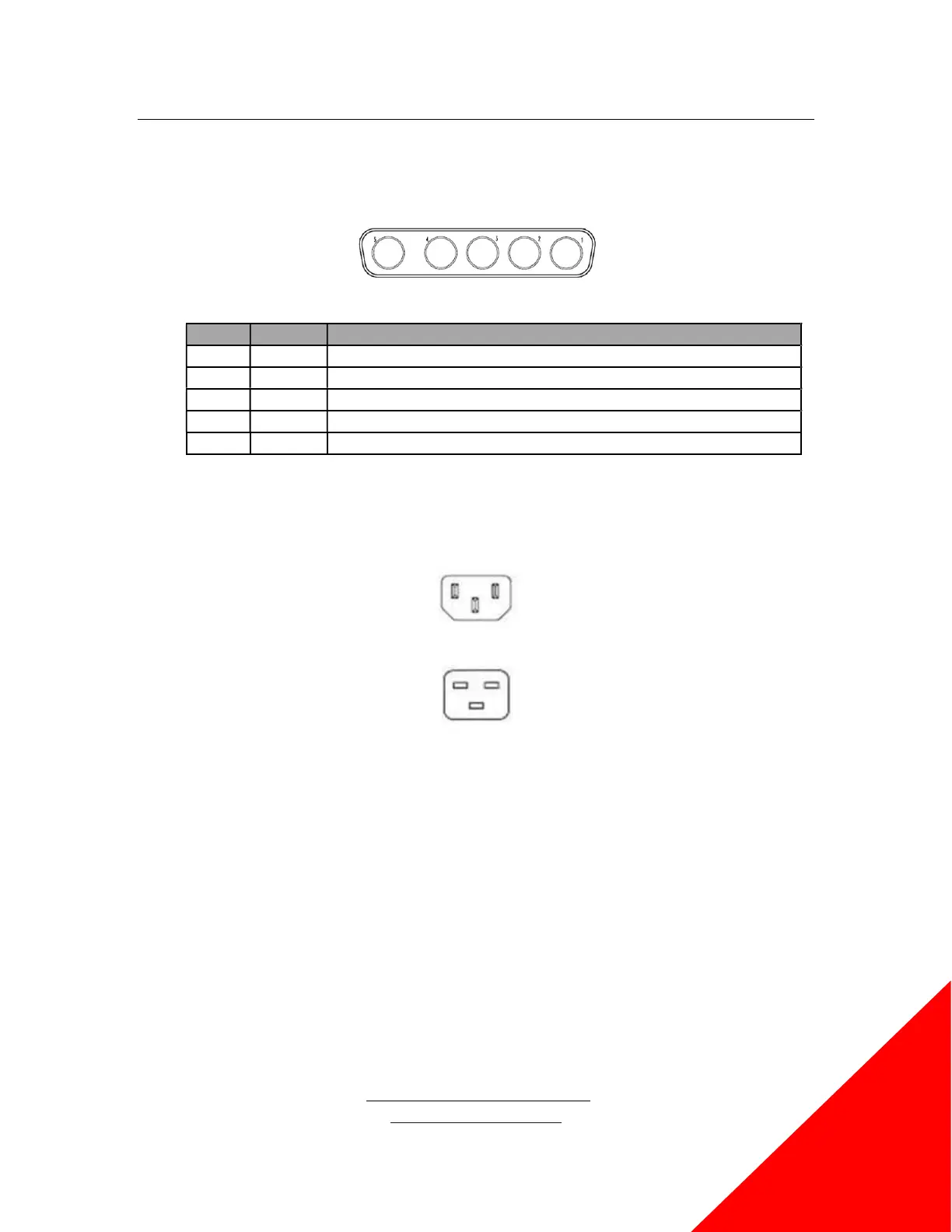

5.2 Electrical Connectivity
DC Power Connectors (x2)
Figure 5 Power Connector (looking at System Controller)
PIN Name Description
A1 +ve 48V DC power feed.
A2 +ve 48V DC power feed. (SC2000 & SC3000 only. Shared current through this pin)
A3 -ve 48V DC power return.
A4 -ve 48V DC power return. (SC2000 & SC3000 only. Shared current through this pin)
A5 Chassis Chassis ground connection
Table 1 Power Connector Pin Out
AC Power Connectors
SC0750/SC1000
SC2000/SC3000

Excelitas Technologies OmniCure SC0750 Specifications

General

Brand	Excelitas Technologies
Model	OmniCure SC0750
Category	Controller
Language	English
