Excell BH3 - Communication Protocol Setting

BH3 Series (02024013) ZSME300000289
33
EXCELL PRECISION CO., LTD.

P
CS

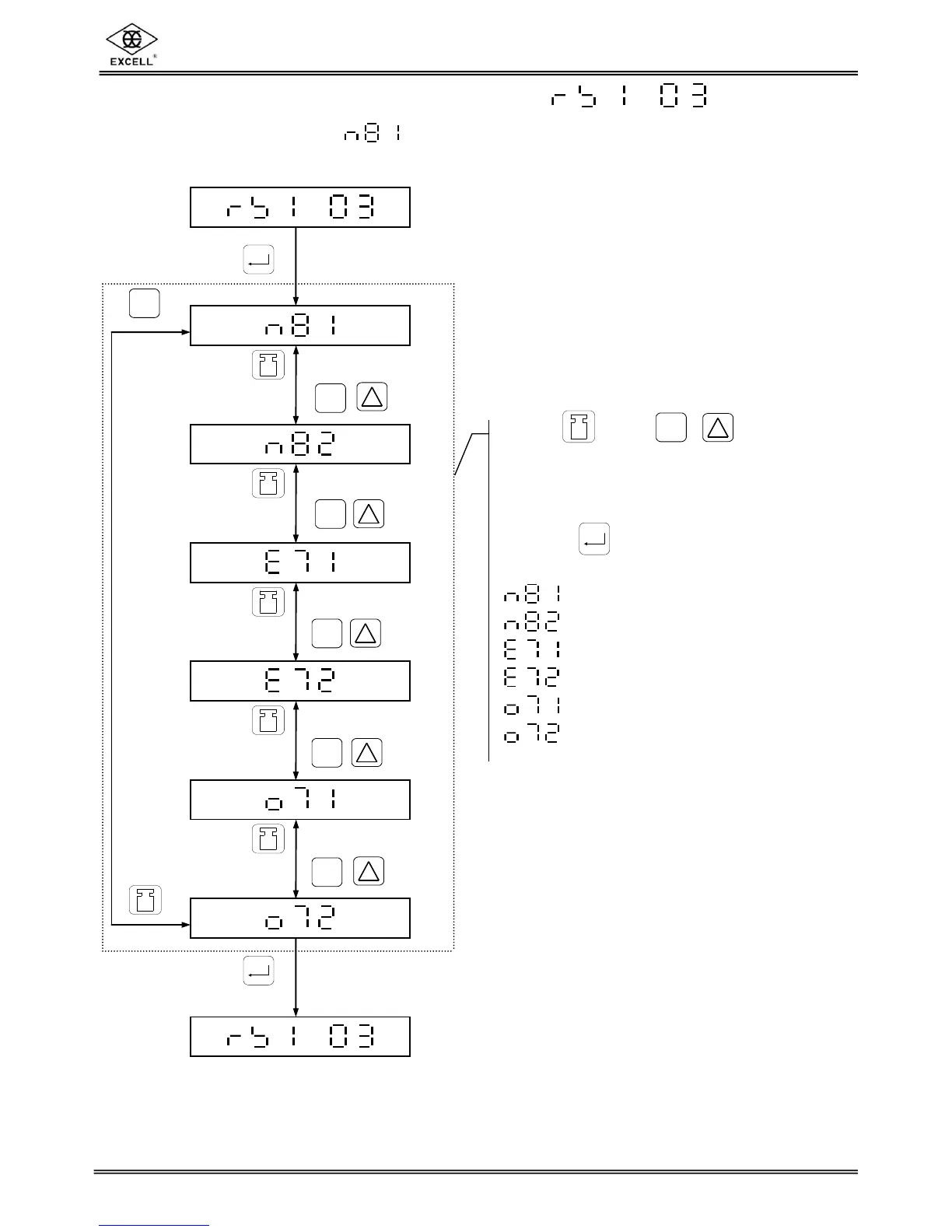

3-3-3 Communication Protocol Setting
 The default setting: “
”
Use the or the / key to set the
parameter
Press the key to confirm the setting.
 8 data bit, No parity bit, 1 stop bit
 8 data bit, No parity bit, 2 stop bit
 7 data bit, Even parity bit, 1 stop bit
 7 data bit, Even parity bit, 2 stop bit
 7 data bit, Odd parity bit, 1 stop bit
 7 data bit, Odd parity bit, 2 stop bit

