Excell SI-130 Service Manual

02025100 ZSME300000340
7
EXCELL PRECISION CO., LTD.

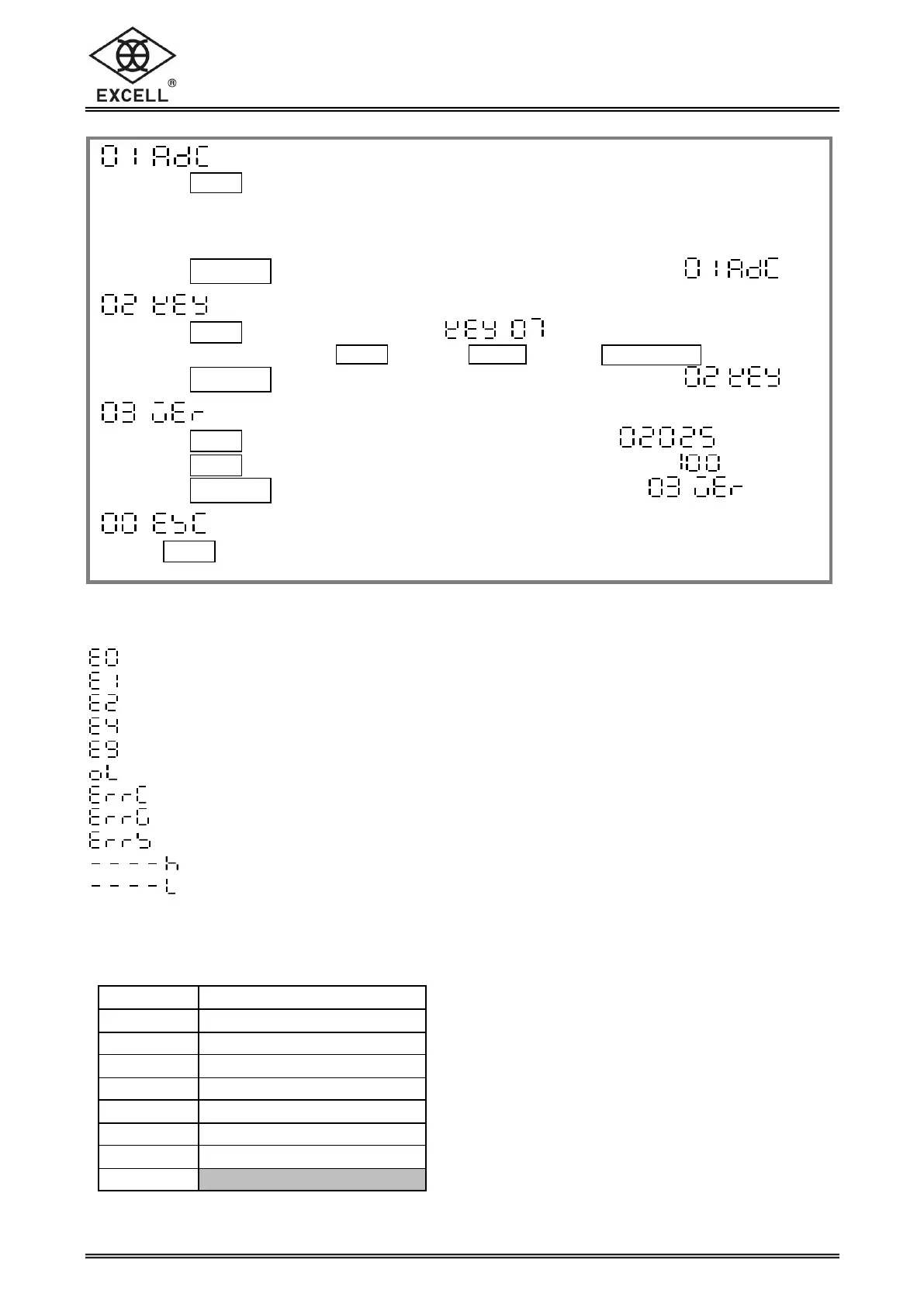

1-4 Error Messages
 The EEPROM memory is not working correctly.
 Zero is higher than the zero range when power on the scale.
 Zero is lower than the zero range when power on the scale.
 A/D value is unstable
 A/D IC malfunction (cannot read A/D value).
 The weight of the object is over 9 divisions of the maximum capacity
 The display resolution is greater than internal resolution after calibration.
 G value is not within the range 9.772~9.829
 Error setting
 The weight value is greater than zero range, when re-zero the scale.
 The weight value is below zero range, when re-zero the scale.
1-5 Selectable Weight Units and Piece Unit
kg
1 g = 0.001 kg
g
1 g = 1 g
lb
1 g = 0.002204623 lb
lb,oz
1 g = 0.03527396 oz
oz
1 g = 0.03527396 oz
GN
1 g = 15.432358 GN
dwt
1 g = 0.6430149 dwt
ct
1 g = 5 ct
Pcs
INTERNAL VALUE MODE ( must hook up Load Cell to test)
 Press TARE to enter, and the display shows internal value
 Please check whether the internal value has changed obviously with weight
changing.
 Please check the backlight.
 Press ON | ZERO key to back to the last screen , the display shows
KEYPAD TEST MODE
 Press TARE to enter, display shows
Keypad’s internal code: TARE key= 07 UNITS key= 06 NET | GROSS key=05
 Press ON | ZERO key to back to the last screen , the display shows
FIRMWARE VERSION DISPLAY MODE
 Press TARE to enter , display shows the firmware version
 Press TARE key again, the display shows maintenance number for 2 secs
 Press ON | ZERO key to back to the last screen, display shows
BACK TO THE LAST SCREEN
Press TARE key to exit self-test mode, the scale will restart automatically.
