16
ASSEMBLY
STEP 6
Note: The parts are marked with an “R” for right side and “L” for left side.

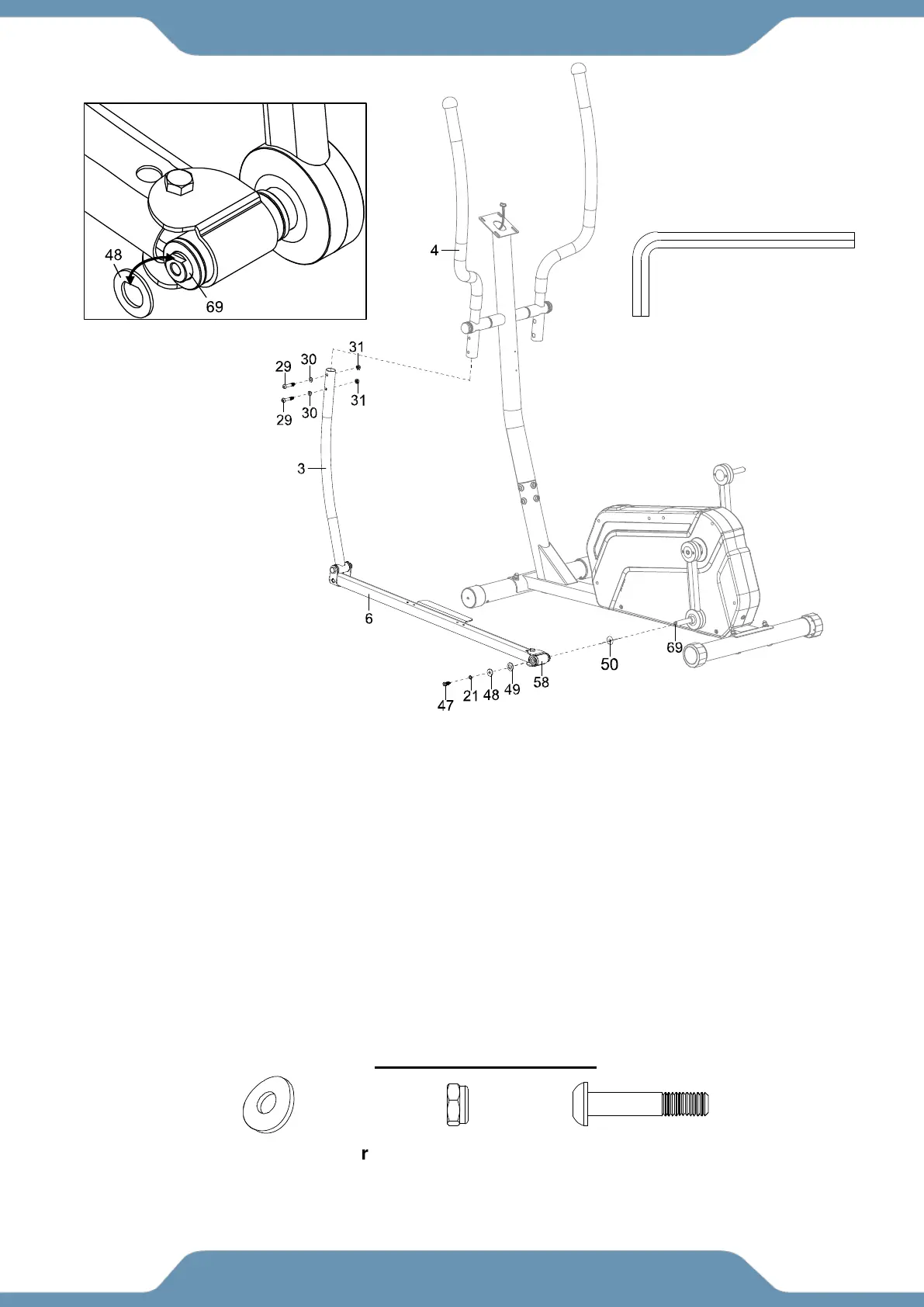

6a. Installing the Left Foot Bar – Slide one Wave Washer (50) followed by the U Shape Bracket
(58) on to the shaft of the left side Crank (69). Insert one D Washer (49), one Big Flat Washer (48),
one Spring Washer (21) and one Flat Hex Bolt (47) that were previously removed from STEP 5.
Tighten the hardware by using the 6mm Allen Wrench until firm and secure.
NOTE: The D Washer (48) should be installed as shown in Fig. D so it fits with the D shaped
shaft on the Crank (69).
6b. Installing the Left Handrail Arm – Insert the left Handrail Arm (3) into the Left Handrail (4).
Insert two Hex Bolts (29), two Curved Washers (30), and two Anti-Loosen Hex Nut (31). Tighten
the hardware with the 6mm Allen Wrench provided.
6 mm Allen Wrench
Tool:
HARDWARE PACK
(30) Curved Washer
2PCS
(31) Anti-Loosen
Hex Nut 2PCS
(29) Hex Bolt
2PCS
Fig. D
