17
STEP 7
Note: The parts are marked with an “R” for right side and “L” for left side.

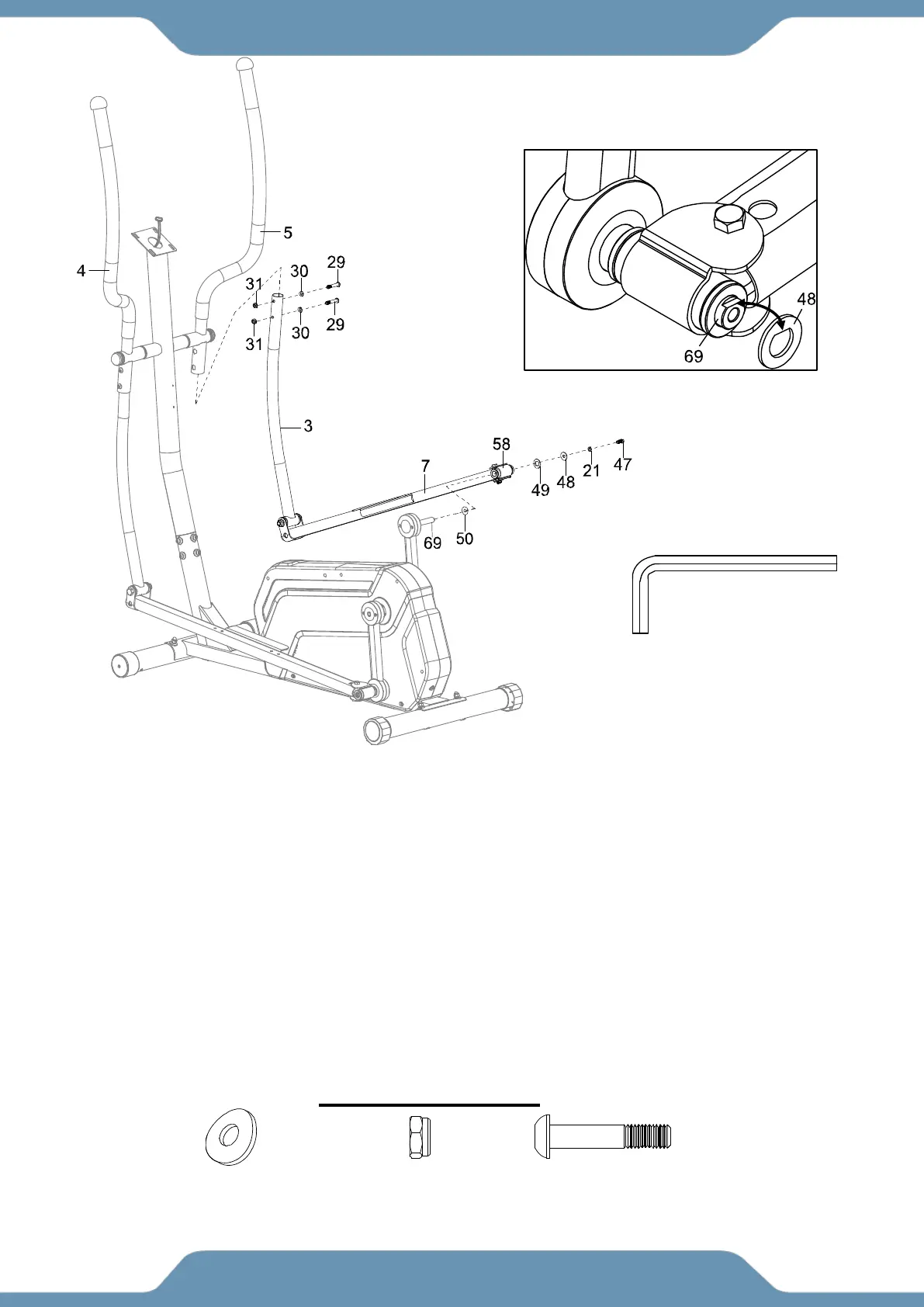

7a. Installing the Right Foot Bar – Slide one Wave Washer (50) followed by the U Shape
Bracket (58) on to the shaft of the right side Crank (69). Insert one D Washer (49), one Big Flat
Washer (48), one Spring Washer (21) and one Flat Hex Bolt (47) that were previously removed
from STEP 5. Tighten the hardware by using the 6mm Allen Wrench until firm and secure.
NOTE: The D Washer (48) should be installed as shown in Fig. E so it fits with the D shaped
shaft on the Crank (69).
7b. Installing the Right Handrail Arm – Insert the left Handrail Arm (3) into the Right Handrail
(5). Insert two Hex Bolts (29), two Curved Washers (30), and two Anti-Loosen Hex Nut (31).
Tighten the hardware with the 6mm Allen Wrench provided.
2PCS
Nut 2PCS
