Exerpeutic EXERWORK 2000i - ASSEMBLY; Frame and Stabilizer Installation

11
TOOL
13-15mm Wrench
ASSEMBLY
STEP 1

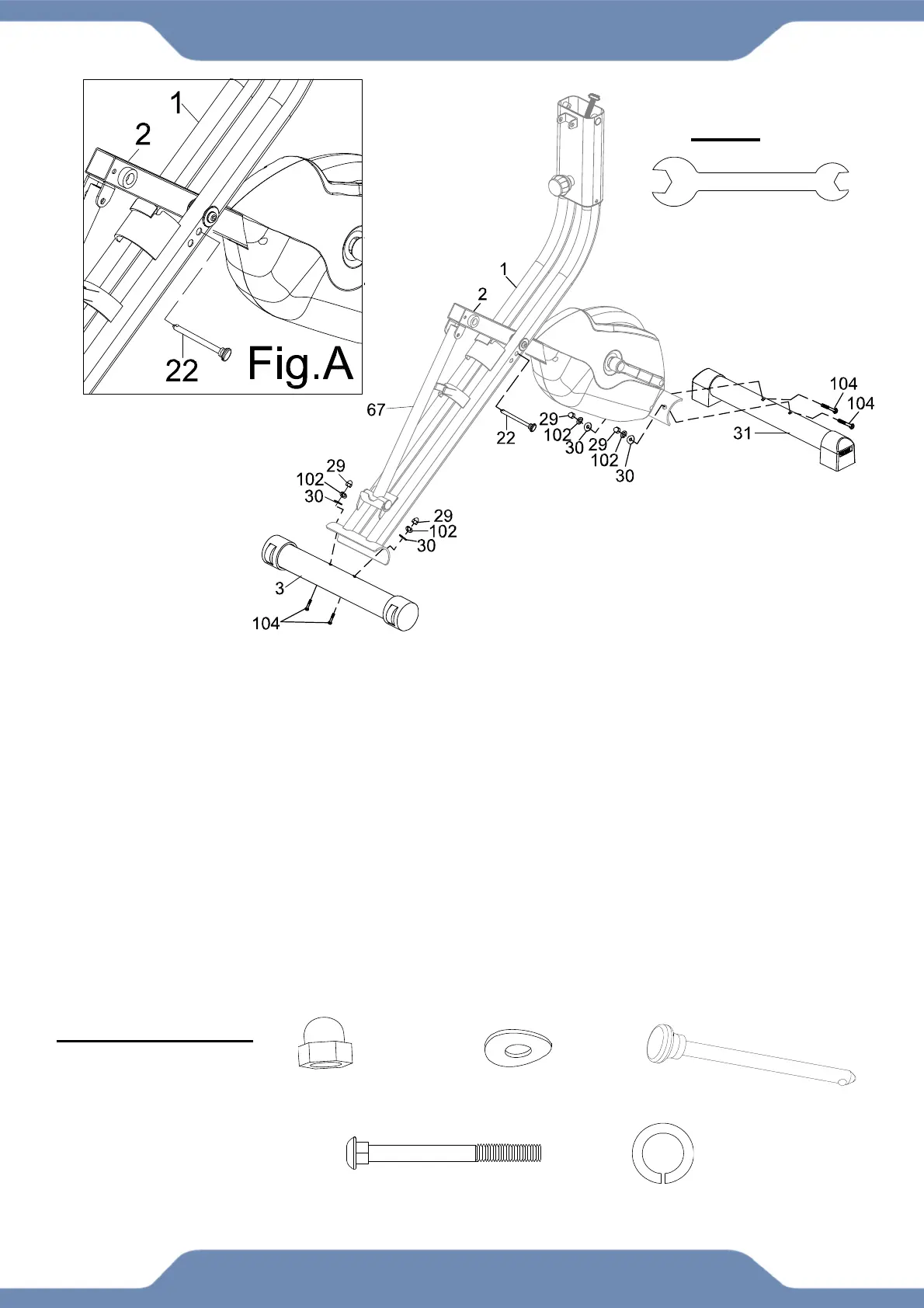

1A. Setting Up the Frames
Pull apart the Front Frame (2) and the Rear Frame (1). Rest the Rear Frame Support Tube (67)
into the hooked plate on the Rear Frame (1). Align the pin holes where the Front Frame (2) and
Rear Frame (1) intersect and insert the Safety Pin (22) into the aligned holes. See Fig. A. The
aligned holes can be found by tracing the Safety Pin (22) in the illustration.
1B. Installing the Front Stabilizer
Attach the Front Stabilizer (31) to the Front Frame (2) with two Hexagon Cap Nuts (29), two
Spring Washers (102), two Curve Washers (30), and two Carriage Bolts (104). Tighten the
Hexagon Cap Nuts (29) using the 13-15mm Wrench provided.
1C. Installing the Rear Stabilizer
Attach the Rear Stabilizer (3) to the Rear Frame (1) with two Hexagon Cap Nuts (29), two
Spring Washers (102), two Curve Washers (30) and two Carriage Bolts (104). Tighten the
Hexagon Cap Nuts (29) using the 13-15mm Wrench provided.
HARDWARE PACK
(29) Hexagon Cap Nut
4PCS
(30) Curve Washer
4PCS
(22) Safety Pin
1PC
(102) Spring Washer
4PCS
(104) Carriage Bolt
4PCS
