Exerpeutic EXERWORK 2000i - Pedal Installation

12
ASSEMBL
Y
IMPORTANT:
Make sure the right pedal matches up with the right crank and the left
pedal matches up with the left crank. If matched incorrectly, the cranks
may become damaged or stripped.
IMPORTANT:
Screw the Right Pedal (8) into the Right Crank (24)
in a CLOCKWISE direction.
Screw the Left Pedal (7) into the Left Crank (23) in a
COUNTER-CLOCKWISE direction.

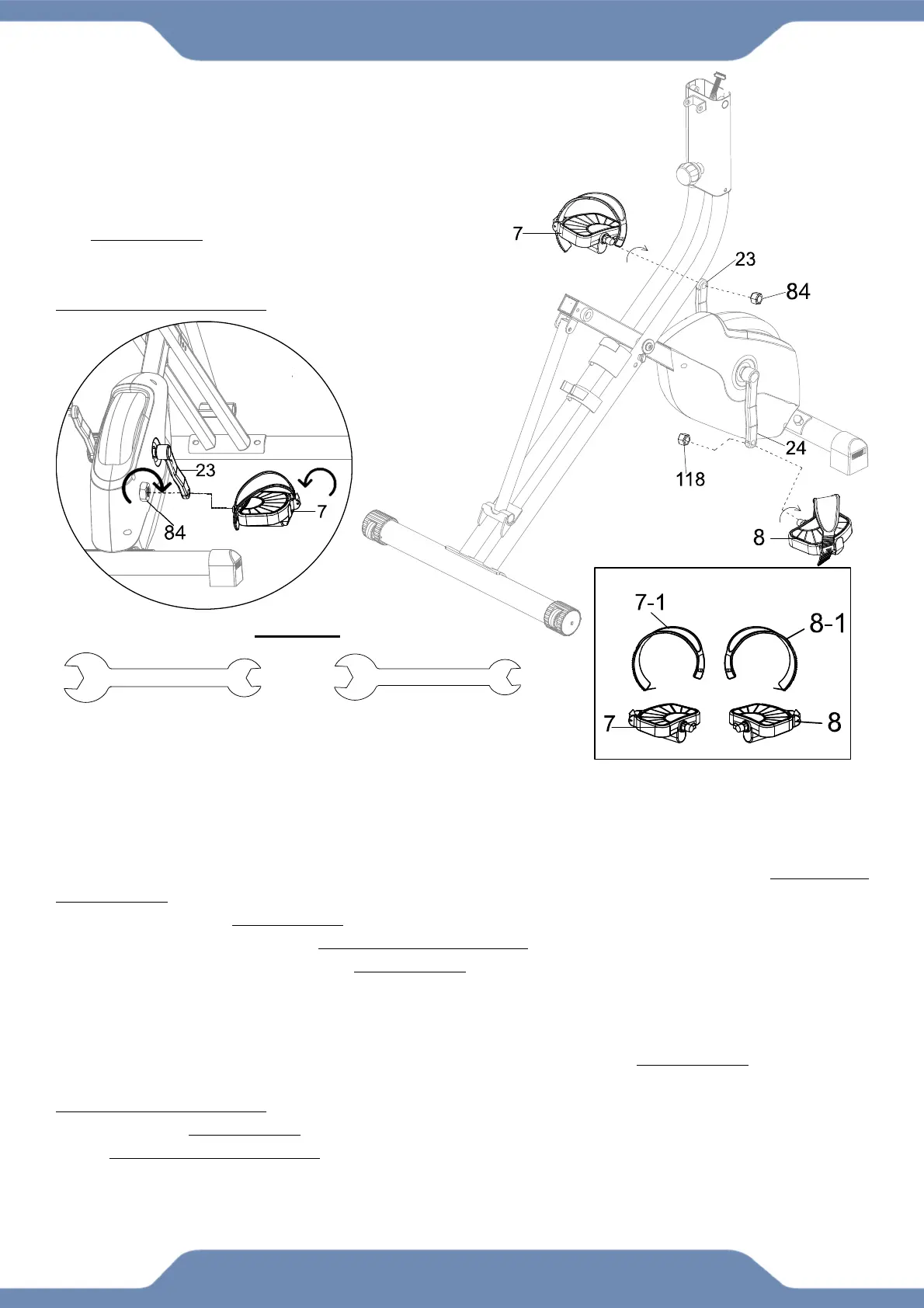

STEP 2
TIP: The Cranks, Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and “L” for Left.
2A. Installing the Left Pedal
Remove the Left Nylon Nut (84) from the Left Pedal (7). Insert the Left Pedal (7) into the
threaded hole in the Left Crank (23). Turn the Left Pedal (7) by hand in a COUNTER-
CLOCKWISE direction until snug. Attach the Left Nylon Nut (84) onto the protruding Left Pedal
(7) by turning it in a CLOCKWISE direction. Simultaneously tighten the Left Pedal (7) using the
13-15mm Wrench by turning it COUNTER-CLOCKWISE and tighten the Left Nylon Nut (84) with
the Wrench 19mm provided in the CLOCKWISE direction. See Fig. B.
2B. Installing the Right Pedal
Remove the Right Nylon Nut (118) from the Right Pedal (8). Insert the Right Pedal (8) into the
threaded hole in the Right Crank (24).Turn the shaft by hand in a CLOCKWISE direction until
snug. Attach the Right Nylon Nut (118) onto the protruding Right Pedal (8) by turning it in a
COUNTER-CLOCKWISE direction. Simultaneously tighten the Right Pedal (8) with the 13-15mm
Wrench in the CLOCKWISE direction and the Right Nylon Nut (118) with the 19mm Wrench
with a COUNTER-CLOCKWISE direction.
2C. Instalilng the Pedal Straps
Install the Left & Right Pedal Straps (7-1, 8-1) on to the Left & Right Pedals (7, 8). See Fig. C.
TOOLS
13-15mm Wrench 1 PC 17-19mm Wrench 1 PC
Fig. B
LEFT SIDE
Fig. C
