OPERATIONS & ADJUSTMENTS

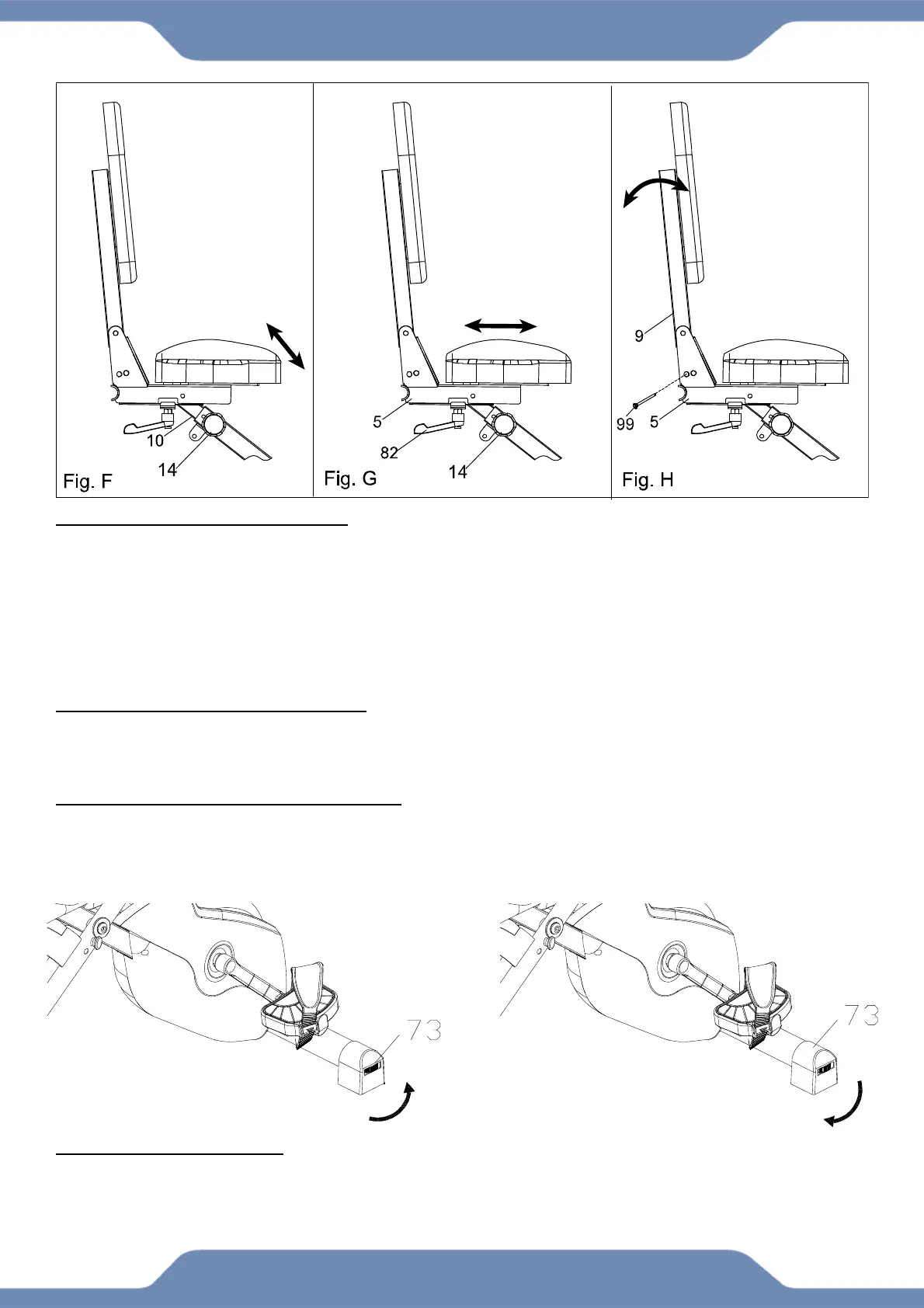

ADJUSTING THE SEAT HEIGHT (SEE FIG. F)
Loosen the Seat Adjustment Knob (14) and pull to release the Seat Post (10). Slide the Seat
Post (10) to the desired height. The tip of the Seat Adjustment Knob (14) should POP into one of
the holes on the Seat Post (10). Retighten the Seat Adjustment Knob (14) to lock the Seat Post
(10) in place.
NOTE: Do NOT exceed the MAX line on the seat post when adjusting the height of Seat Post (10).
ADJUSTING THE SEAT POSITION (SEE FIG. G)
Loosen the Knob (82) to release the Seat Bracket (5). Slide the Seat Bracket (5) to the desired
position. Lock the Seat Bracket (5) in place by retightening the Knob (82).
ADJUSTING THE SEAT BACK ANGLE (SEE FIG. H)
Pull the Pin (99) from the hole on the Seat Bracket (5) and Backrest Frame (9). Adjust the
Backrest Frame (9) to the desired angle. Replace the Pin (99) to lock the Seat Bracket (5) and
Backrest Frame (9) together.
LEVELING THE MACHINE
Turn the wheel inside the Front Stabilizer End Caps (73) to extend the foot pads so they are in
contact with the ground to help stabilize the bike. Do this as needed to level the machine.
