10

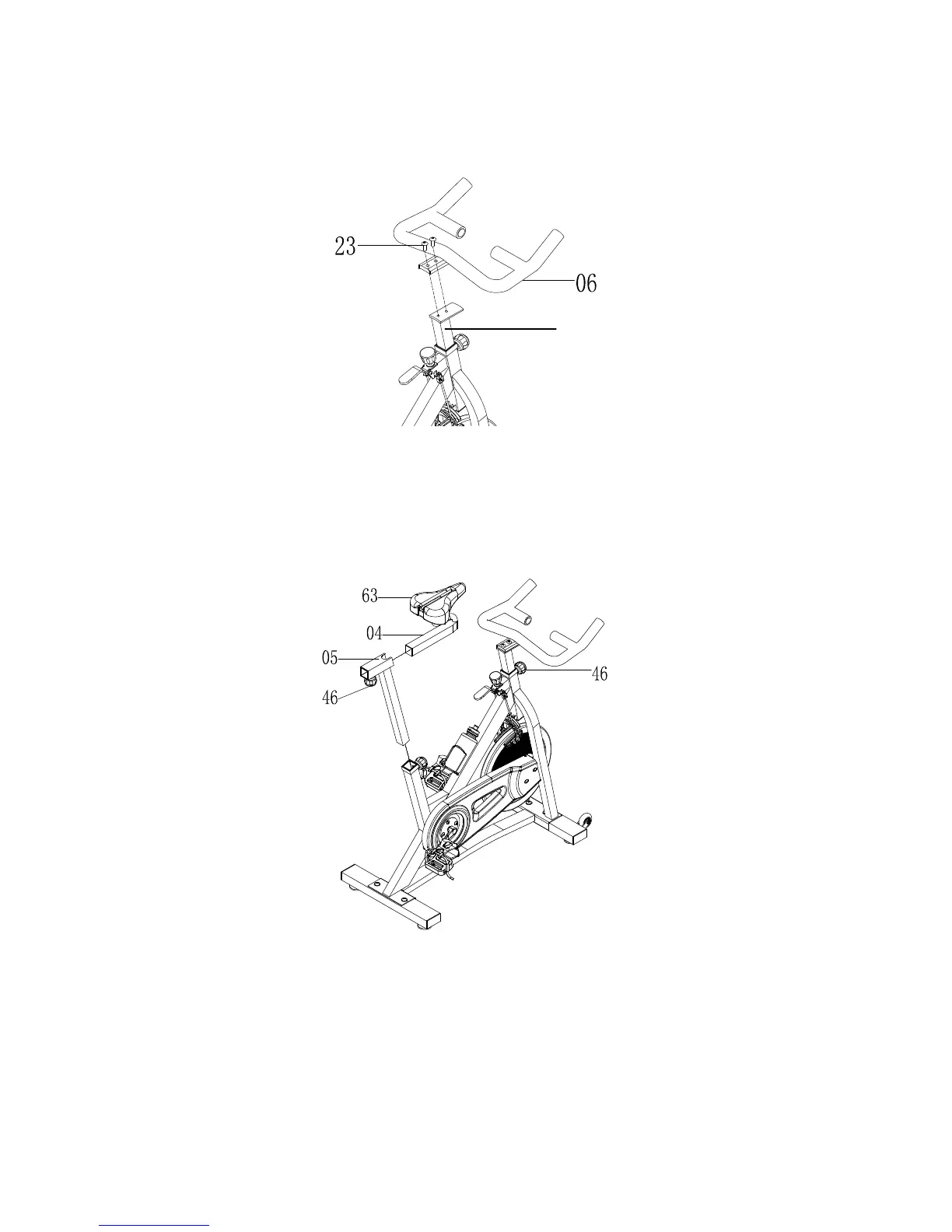

Step 4: Assemble the Handlebar.
Fix the Handlebar (06) to the Handlebar Post (07) and tighten it with Hexagon Flat Round Head
Screw (23).
Step 5: Assemble the Seat Post.
Slacken the Pop Pin (46), and slide the Seat Post (05) to the Seat Post Housing on the Main Frame,
then retighten the Pop Pin (46). Slide Seat Slider (04) into the Seat Post (05), and then fix the Seat (63)
to the Seat Slider (04).
Step 6：
：：
：Assembly completed.
After finishing installation, please inspect all the screws and nuts carefully to make sure all of them
are properly tightened
07
