Step 1: Assemble Front Base and Rear Base.

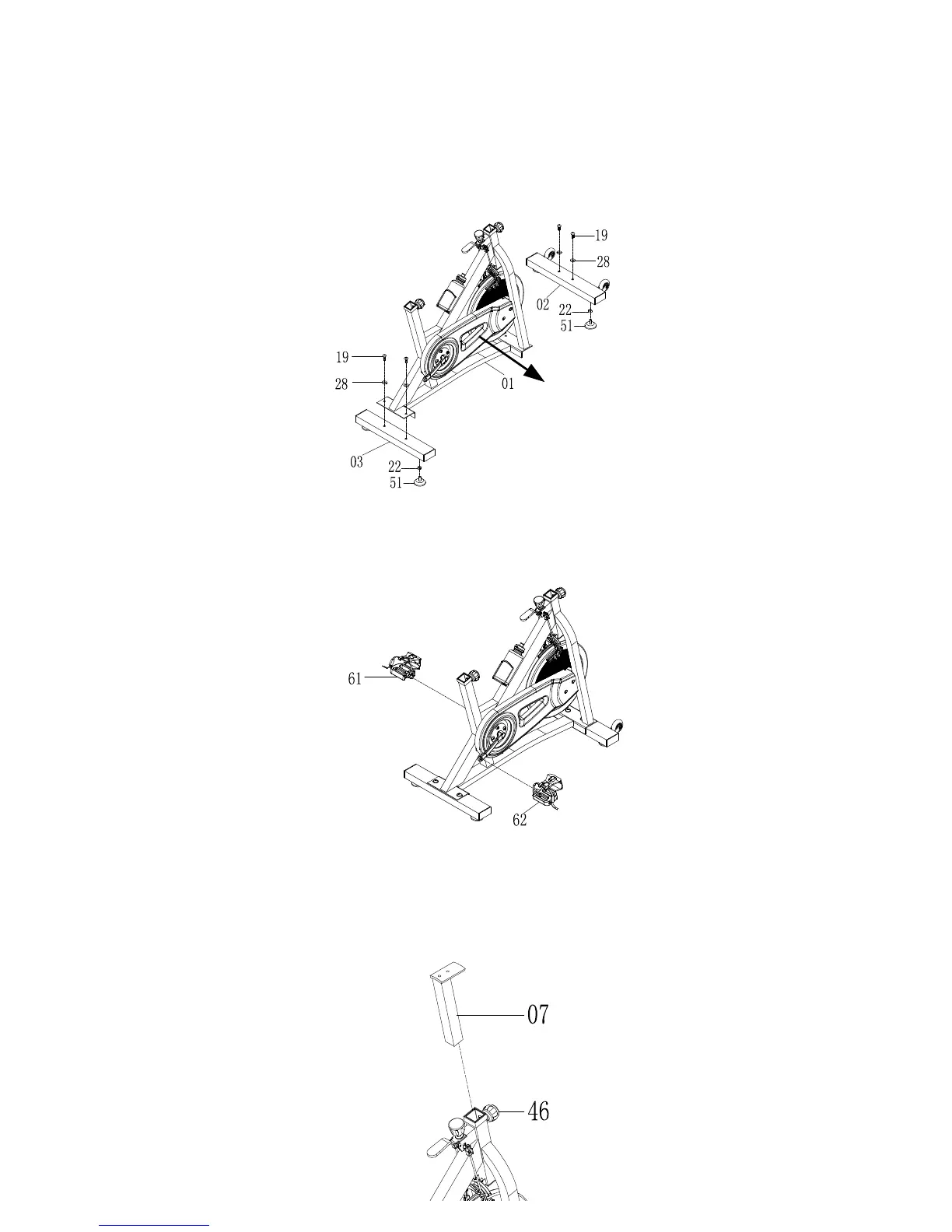

According to the following figure, fix the Front Base (02) and Rear Base (03) to the Main Frame (01)
respectively with 4 pcs of Inner Hexagon Flat Round Head Screw (19), Flat Washer (28) by Inner
Hexagon tool for fastening.
Step 2: Install Left Pedal and Right Pedal.
Refer to the figure below. Insert the Left Pedal (61) and Right Pedal (62) into the Crank. Tightening
the pedals clock-wise by using the Opening Wrench (43).
Step 3: Assemble the Handlebar Post.
According to the following figure, slacken the Pop Pin (46), and slide the Handlebar Post (07) into the
Handlebar Post Housing on the Main Frame (01), and re-tighten the Pop Pin.
The main frame is pre-assembled.
To Next Page
