Things to consider:
• Other wireless equipment using thesame frequency band can reduce
thetransmissionrange.
• Therange of all wireless equipment depends on thetype of obstacles located
between thetransmitter and thereceiver (e.g. aconcrete wall will interfere with
thesignal more than aplasterboard wall).
If you experience problems, try thefollowing:
• Turn off any other existing wireless equipment to check whether this is thecause
of theproblem.
• Reposition thewireless equipment, shorten thedistance between thetransmitter
and thereceiver or reduce thenumber of obstacles (walls, furniture,etc.)
betweenthem.

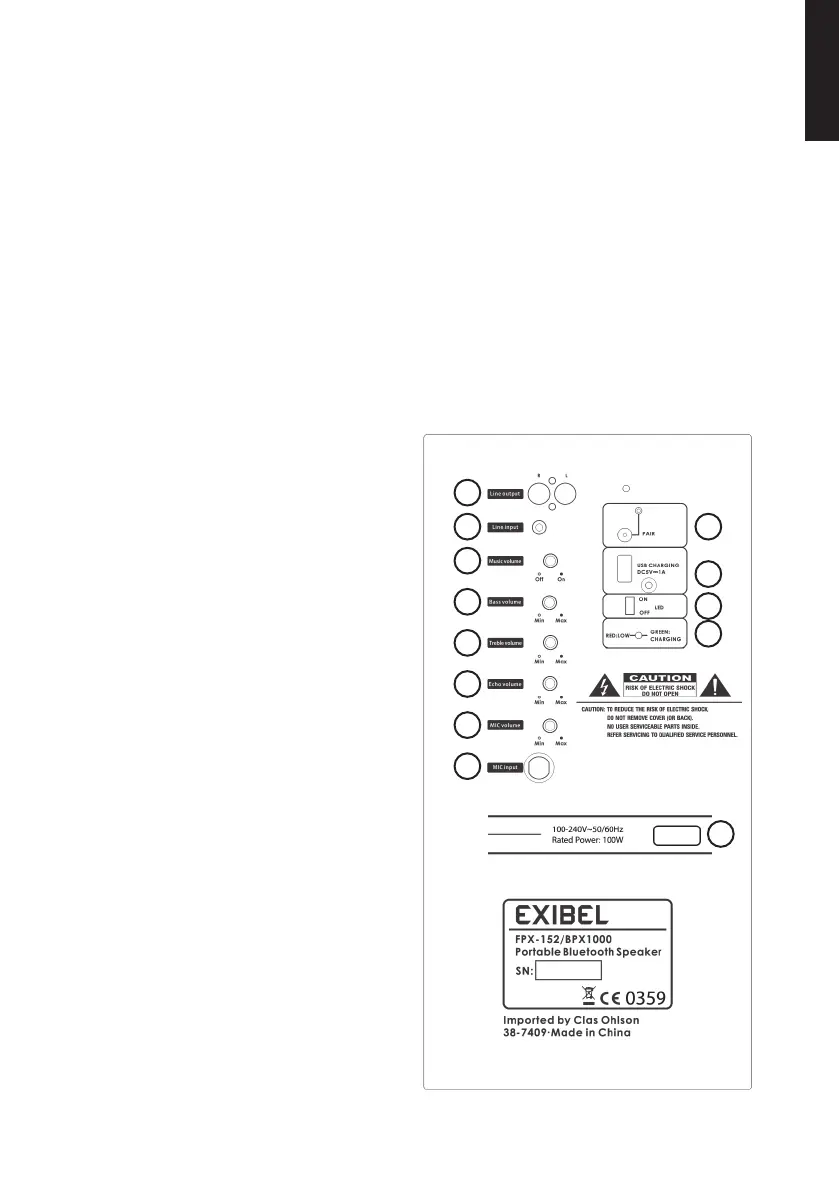

Buttons, functions and connections
1. Line output: RCAoutput
2. 3.5 mm line-ininput
3. [ Music volume/On-Off ] Master
volume, on/off
4. [ Bass volume min/max ]
5. [ Treble volume min/max ]
6. [ Echo volume min/max ]
7. [ Mic volume min/max ] Externally
connected mic or instrument
volume control
8. 6.3 mm mic or instrumentinput
9. [ PAIR ] Bluetooth pairing button
10. DC 5 V, 1 AUSB-chargingport
11. LED ON/OFF, LED effect lighting
on/off
12. Battery indicator: RED = LOW,
GREEN = CHARGING
13. Charging socket
