1.9.2 The 5/16-18 x 3/4 Button Head Screw and 5/16-18 Flanged Nyloc Nut that secures
the floor plate can be removed. See Figure 3

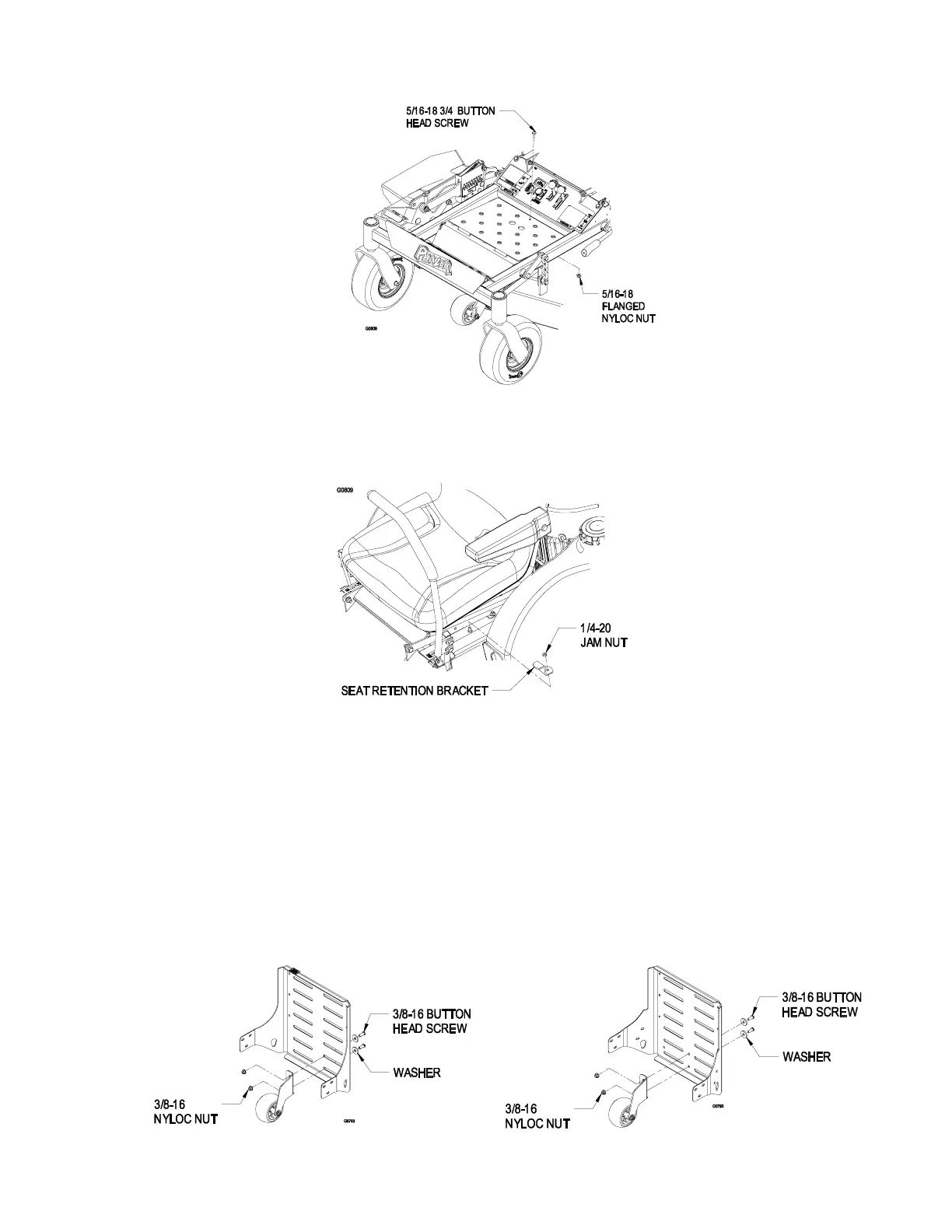

FIGURE 3
1.9.3 The Seat Retention Bracket and 1/4-20 Jam Nut can be removed from the
mainframe. See Figure 4.
FIGURE 4
NOTE: The changes outlined in Steps 1.9.1-1.9.3 are in compliance with the
American National Standards Institute (ANSI) B71.4-2004 Safety Standard for
Commercial Turf Care Equipment – Safety Specifications.
1.9.4
For Non-Commercial (Consumer) Users:
IMPORTANT: DO NOT make the changes outlined in Steps 1.9.1-1.9.3. These
changes are not in compliance with ANSI B71.1-2003 Safety Standard for
Consumer Turf Care Equipment – Walk-Behind Mowers and Ride-On Machines with
Mowers – Safety Specifications.
1.9.5 For non-commercial users locate roller bracket assembly (attached to crate) and
install as shown in Figure 5.
FIGURE 5
