13
2. SPECIFICATIONS
2.1 MODEL NUMBER:
Serial Nos. 600,000 & Higher: PHZ19KA343, PHZ19KA443
2.2 ENGINE:
2.2.1 Engine Specifications: See Your Engine Owner’s Manual
2.2.2 RPM: Full Speed: 3750 (max) RPM (No Load) Idle: 1400 (min) RPM
2.3 FUEL SYSTEM
2.3.1 Capacity: 7.7 gal. (29.1 L.)
2.3.2 Type of Fuel: Regular unleaded gasoline, 87 octane or higher.
2.3.3 Fuel Filter: Replaceable in-line Kawasaki P/N 49019-7001
2.3.4 Fuel Shut-Off Valve: in-line, 1/4 turn
2.4 ELECTRICAL SYSTEM
2.4.1 Charging System: Flywheel Alternator
2.4.2 Charging Capacity: 13 amps
2.4.3 Battery Type: BCI Group U1
2.4.4 Battery Voltage: 12 Volt
2.4.5 Polarity: Negative Ground
2.4.6 Fuses: Two 20 amp blade type
2.4.7 Safety Interlock System:
PTO must be disengaged, brake engaged, and motion control levers out (neutral
lock) to start engine. (It is not necessary for the operator to be in the seat to start the
engine.)

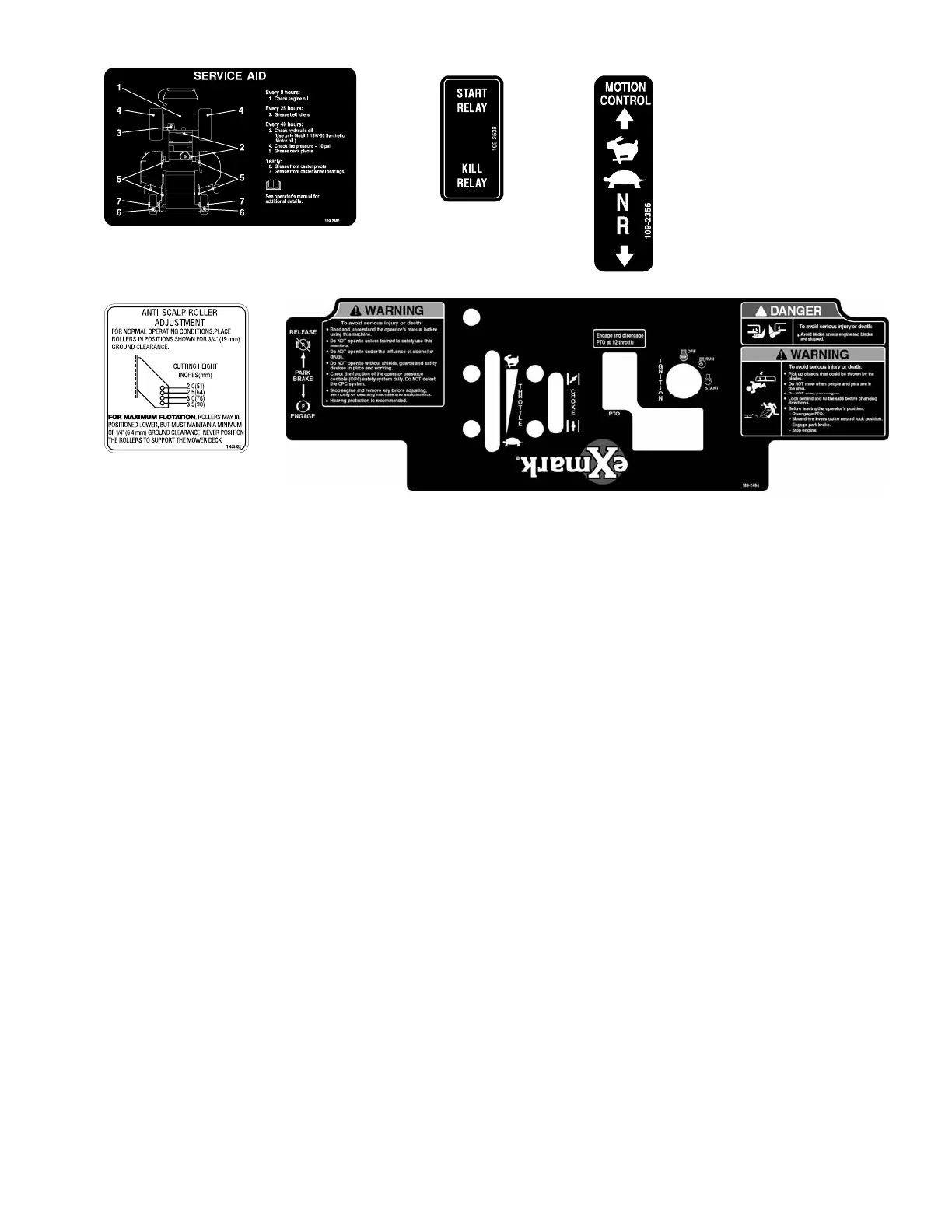

PART NO. 109-2494
LOCATION: Center of Console
PART NO. 1-633922
LOCATION: 44” Only - On
Top LH Side
of Mower
Deck
PART NO. 109-2461
LOCATION: Backside of Seat
PART NO. 109-2539
LOCATION: Under Seat
PART NO. 109-2356
LOCATION: On Top LH
and RH Frame
Panels
