Exmark Radius S Series User Manual

ProductOverview
TorqueRequirements
BoltLocation
Torque
X-Series:
BladeDriveSheave
MountingNut
130-160ft-lb(176-217N-m)
S-andE-Series:
BladeDriveSheave
MountingNut
75-85ft-lb(102-115N-m)
BladeMounting
Bolt(lubricatewith
anti-seize)
50-60ft-lb(68-81N-m)
Anti-ScalpRoller
NylocNut—Side
DischargeUnitsOnly
(SeeFigure18)
50-55ft-lb(68-75N-m)
Anti-ScalpRoller
NylocNut—Rear
DischargeUnitsOnly
(SeeFigure19)
30-35ft-lb(41-47N-m)
EngineMountingBolts
27-33ft-lb(37-45N-m)
WheelLugNuts
90-100ft-lb(122-136N-m)
RolloverProtection
System(RollBar)5/8
inchMountingBolts
90-100ft-lb(122-136N-m)
ClutchRetaining
Bolt(securedwith
threadlocker)
49-61ft-lb(66-83N-m)
RearDischargeSide
Bumpers
10-12ft-lb(14-16N-m)

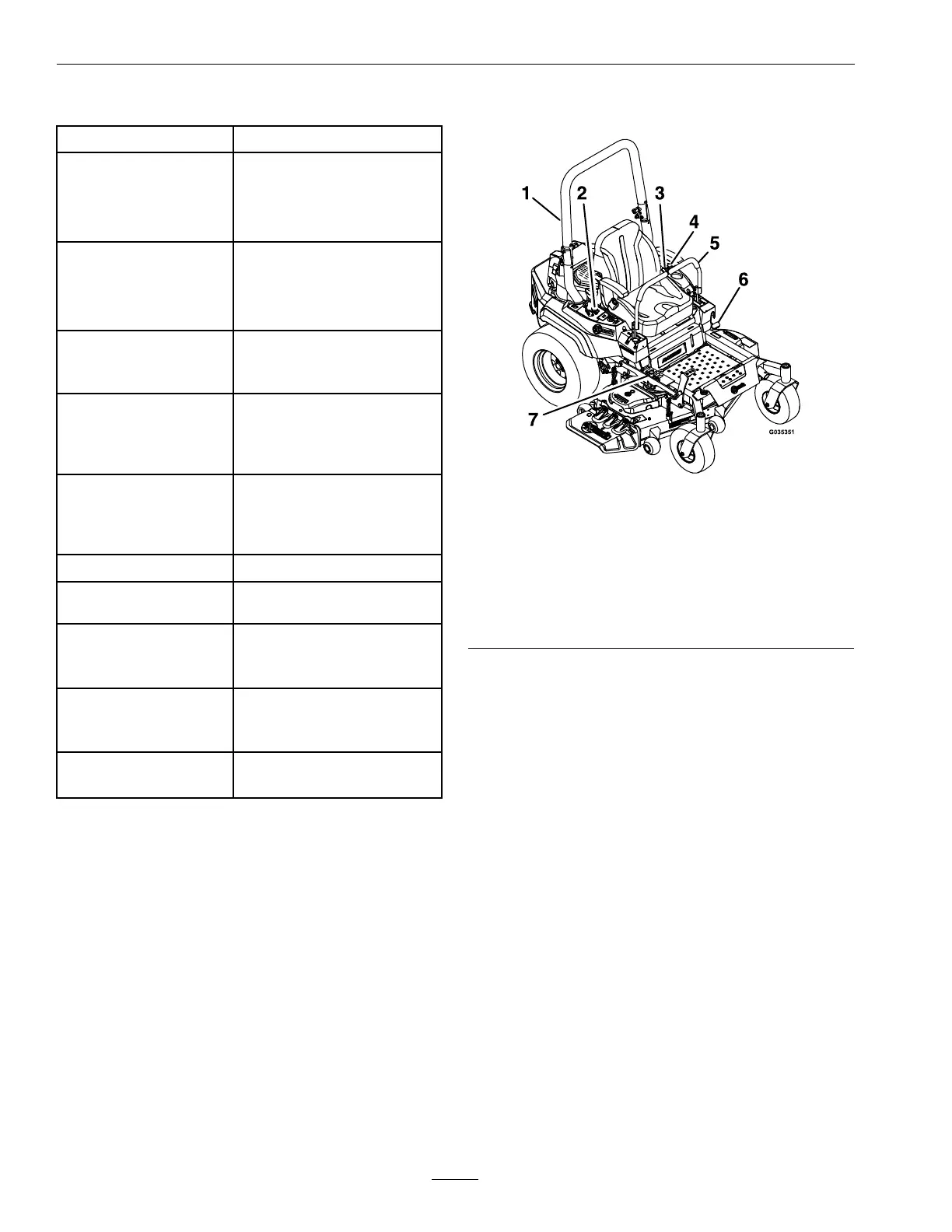

ProductOverview
g035351
Figure3
1.RolloverProtection
System(ROPS)
5.Motioncontrollevers
2.EngineControls(right
console)
6.Parkingbrake
3.Seatbelt7.Heightofcutadjustment
4.Fuelcap
18

Exmark Radius S Series Specifications

General

Engine Brand	Kawasaki
Cutting Width	52 inches
Transmission	Hydrostatic
Deck Construction	Fabricated
Deck Material	10-gauge steel
Engine Type	4-cycle
Drive Type	Rear-wheel drive
Speed	8 mph
Spindle Material	Aluminum
Deck Lift System	Foot-operated
