4.Temporarilyinstallajumperwireacrossthe
terminalsintheconnectorofthemainwiring
harness.
5.Startengine.Brakemustbeengagedand
motioncontrolleversouttostartengine.
Operatordoesnothavetobeintheseat.Run
engineatfullthrottleandreleasebrake.
6.Runtheunitatleast5minuteswiththedrive
leversatfullforwardspeedtobringhydraulicoil
uptooperatingtemperature.
Note:Themotioncontrolleverneedstobein
neutralwhilemakinganynecessaryadjustments.
7.Bringthemotioncontrolleversintotheneutral
position.Thecontrolplatetabsshouldtouchthe
returntoneutralplatesonthehydros.Adjust
pumpcontrolrodlengthsbyturningthenutin
theappropriatedirectionuntilthewheelsslightly
creepinreverse(seeFigure76).Movethemotion
controlleverstothereversepositionandwhile
applyingslightpressuretotheleverallowthe
reverseindicatorspringstobringtheleversback
toneutral.Thewheelsmuststopturningor
slightlycreepinreverse.
Themotioncontrolcovermayneedtobe
removedtogainaccess.

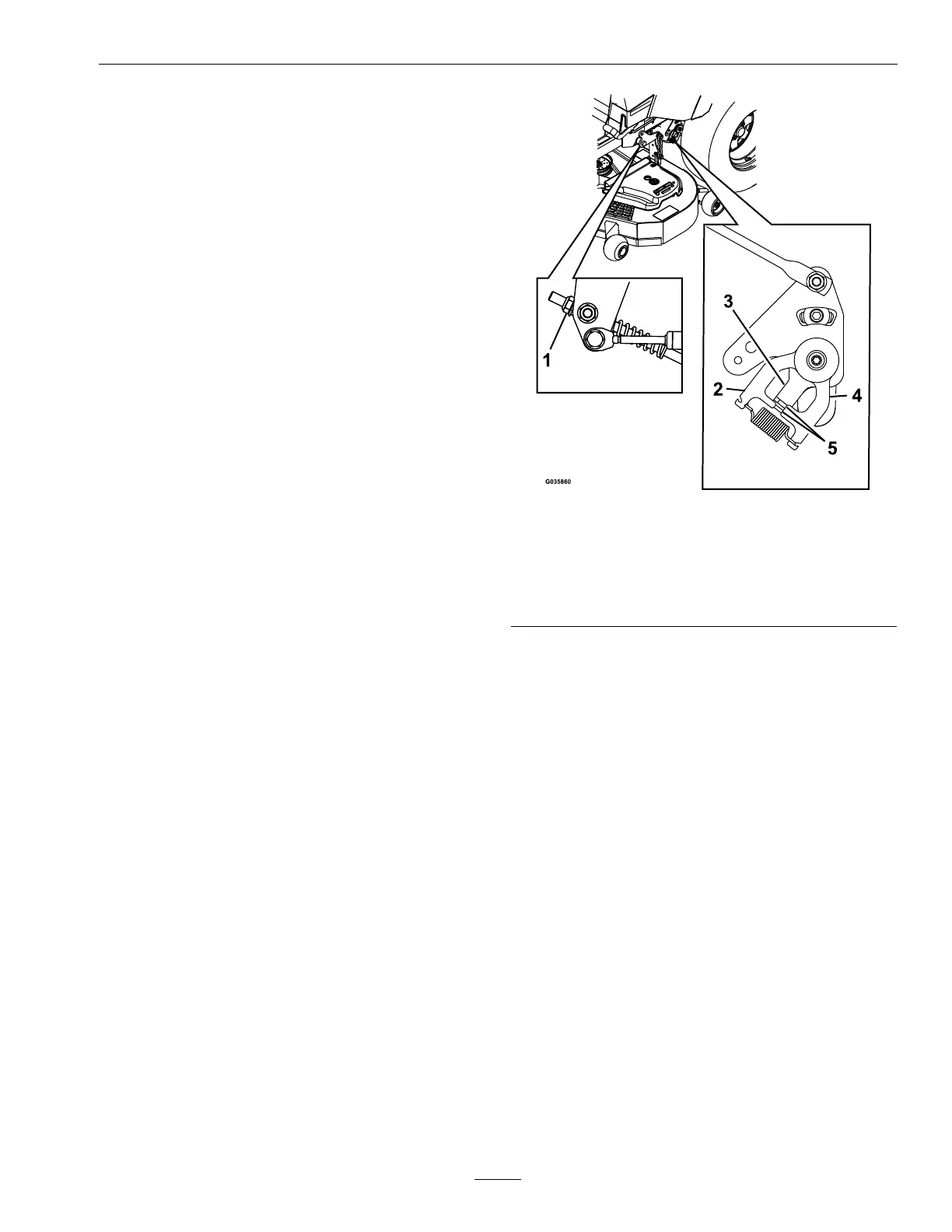

g035860
Figure76
1.Nut4.Returntoneutralplate
2.Stationaryplate
5.Tabstouchingreturnto
neutralplate
3.Controlplate
8.Shutoffunit.Removejumperwirefromwire
harnessandplugconnectorintoseatswitch.
9.Removethejackstands.
10.Raisethedeckandre-installtheheightofcutpin.
11.Checkthatthemachinedoesnotcreepinneutral
withtheparkbrakedisengaged.
ElectricClutchAdjustment
Noadjustmentnecessary.
71
