Operation

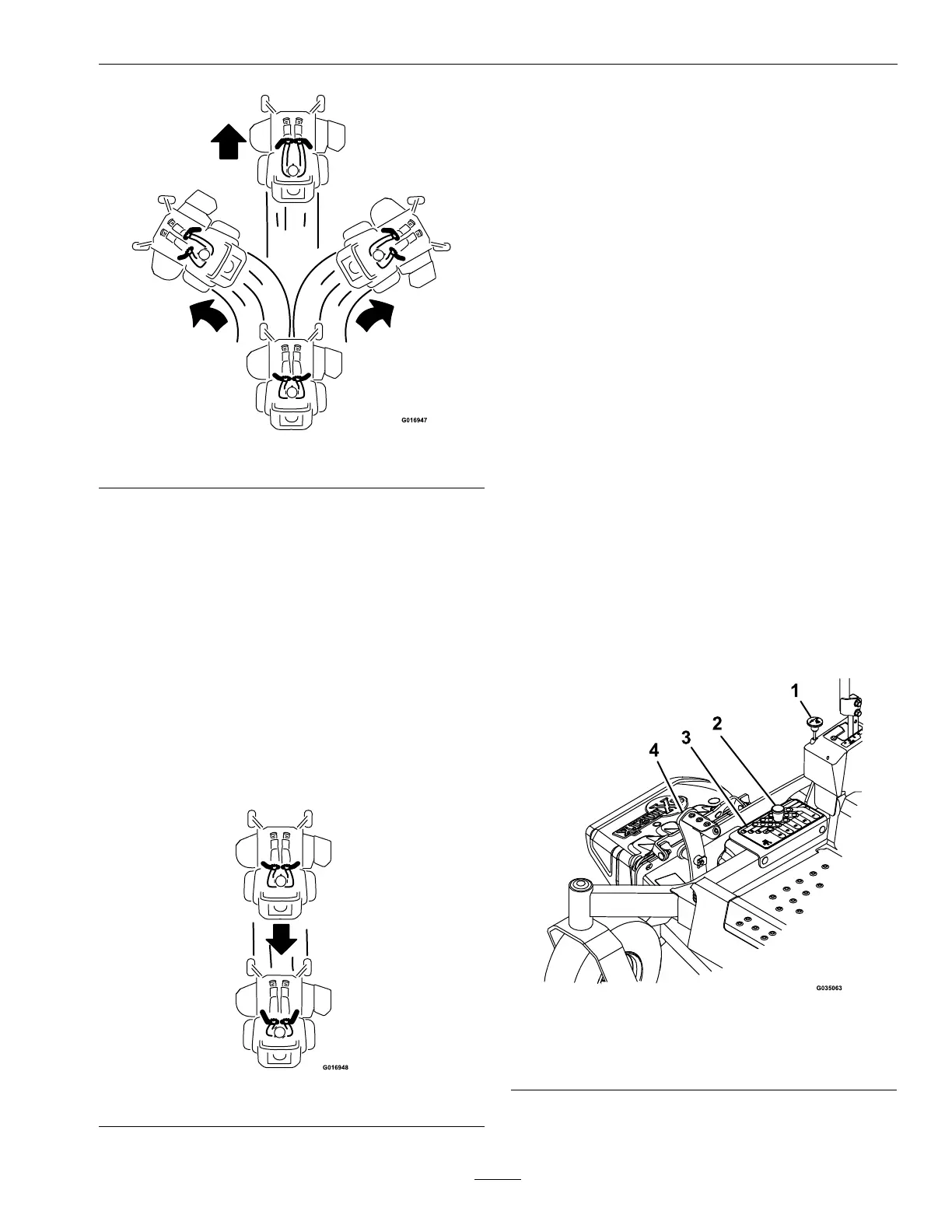

g016947
Figure14
Toturnleftorright,pullthemotioncontrollever
backtowardneutralinthedesiredturndirection.
Themachinewillmovefasterthefartherthe
motioncontrolleversaremovedfromtheneutral
position.
4.Tostop,positionbothmotioncontrolleversin
theneutraloperateposition.
DrivinginReverse
1.Movethemotioncontrolleversinwardtothe
neutraloperateposition.
2.Tomoverearwardinastraightline,moveboth
leversrearwardwithequalpressure.
g016948
Figure15
Toturnright,releasepressureontheRHmotion
controlleverandtherearofthemachinewill
movetowardstherearandtotheright.
Toturnleft,releasepressureontheLHmotion
controlleverandtherearofthemachinewill
movetowardstherearandtotheleft.
3.Tostop,positionbothmotioncontrolleversin
theneutraloperateposition.
AdjustingtheCuttingHeight
Thecuttingheightofthemowerdeckisadjusted
from11/2to5inches(3.8cmto12.7cm)in1/4
inch(6.4mm)increments.
1.Stopthemachineandmovethemotioncontrol
leversoutwardtotheneutrallockedposition.
2.DisengagethePTO.
3.Raiseandlockthedecktothetransportposition
(Figure16).
Thedeckisraisedbypushingthefootoperated
deckliftpedalforward.Thepedalislocatedatthe
frontrightcorneroftheoorpan.
Note:Whenchangingthecuttingheight
positions,alwayscometoacompletestop
anddisengagethePTO.
g035063
Figure16
1.Transportlockknob
3.Heightofcutdecal
2.Heightadjustmentpin
4.Deckfootpedal
4.Inserttheheightadjustmentpinintothehole
correspondingtothedesiredcuttingheight.
29

Exmark Radius X Series Specifications

General

Engine Brand	Kawasaki
Deck Construction	Fabricated
Deck Material	10-gauge steel
Engine Type	V-Twin
Drive Type	Rear-wheel drive
Turning Radius	Zero-turn
Cutting Width	60 inches
Transmission	Hydro-Gear ZT3400
Spindle Type	Aluminum
Speed	Up to 10 mph
