Exmark Radius X Series User Manual

Maintenance
1.Drivethemachineontoalevelsurface.
2.Disengagethebladecontrolswitch(PTO),move
themotioncontrolleverstotheneutrallocked
positionandsettheparkingbrake.
3.Stoptheengine,waitforallmovingpartstostop,
andremovethekey.
4.Setupthemachinetobepushedbyhand(see
DriveWheelReleaseValvesintheOperation
section).
5.Raisethebackofthemachineupandsupportthe
machinewithjackstands.
6.Engage/disengagethebrakeandcheckeachdrive
tiretomakesureeachbrakeengages/disengages.
7.Ifadjustmentisnecessary,disengagethepark
brake.Removecotterpinfromthebrakelinkage
shaft(seeFigure72).

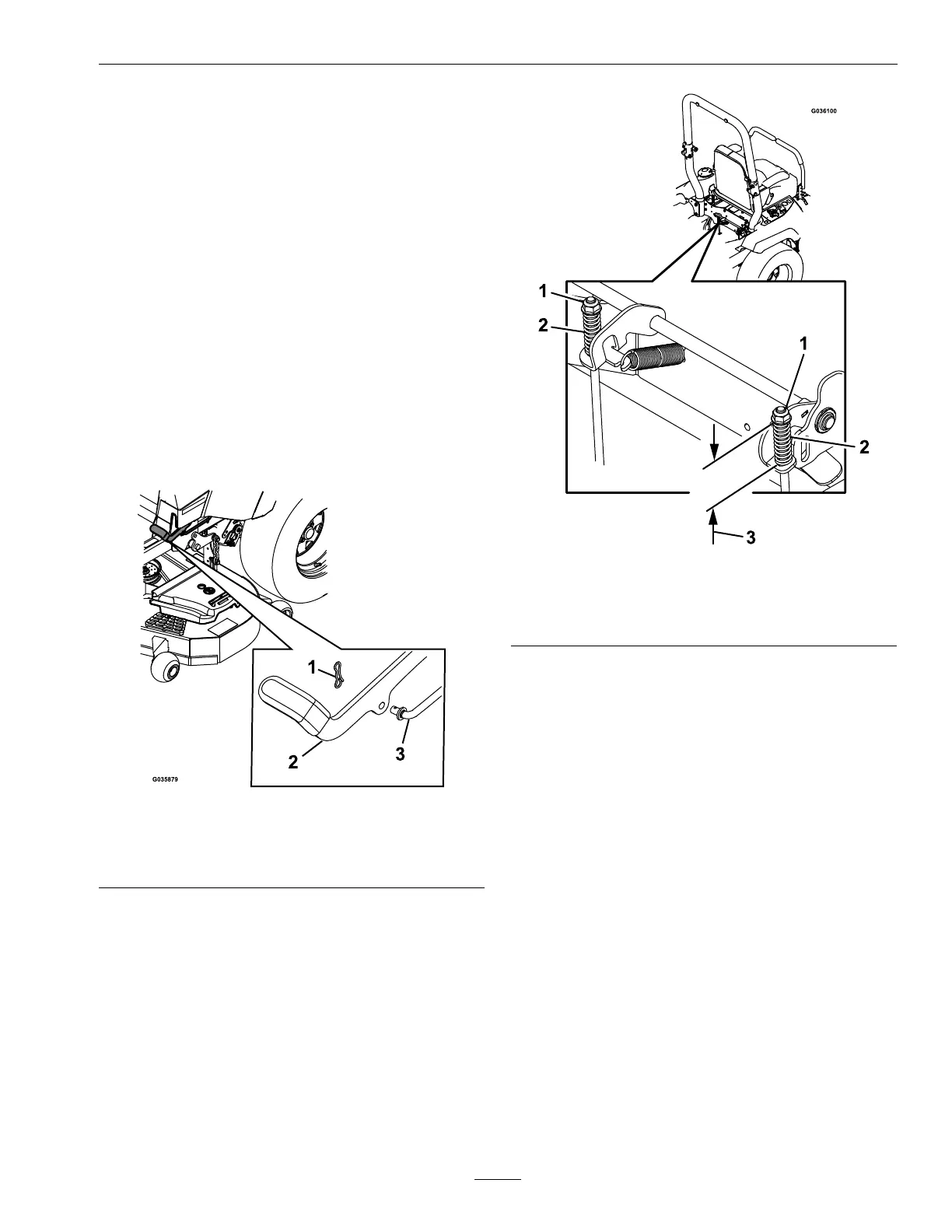

g035879
Figure72
1.Cotterpin3.Brakelinkageshaft
2.Parkingbrake
8.CheckbothspringlengthsasshowninFigure73.
Ifadjustmentisnecessary,turnthetopnut
clockwisetoshortenandcounterclockwiseto
lengthen.
g036100
Figure73
1.Topnut
3.1.75inches(44mm)
2.Spring
9.Pushtheparkingbrakeleverallthewayforward
anddown.Rotatethebrakelinkageshaftuntilthe
endalignswithholeinlever.
•Shortenthelinkagebyturningitclockwise.
•Lengthenthelinkagebyturningit
counterclockwise.
Insertthebrakelinkageshaftintoparkingbrake
holeandsecurewiththecotterpin.Repeatstep6
andreadjustifnecessary.
10.Whenadjustmentiscomplete,removethejack
standsorequivalentsupportandlowerthe
machine.
11.Placethemachineintothe“operating”position.
RefertotheDriveWheelReleaseValvessection
inOperation.
MotionControlHandle
Adjustment
Adjustingtheheight:
69

Exmark Radius X Series Specifications

General

Engine Brand	Kawasaki
Deck Construction	Fabricated
Deck Material	10-gauge steel
Engine Type	V-Twin
Drive Type	Rear-wheel drive
Turning Radius	Zero-turn
Cutting Width	60 inches
Transmission	Hydro-Gear ZT3400
Spindle Type	Aluminum
Speed	Up to 10 mph
