- 7 -
1.7.5 Safety signs may be affixed by peeling off the backing to expose the adhesive
surface. Apply only to a clean, dry surface. Smooth to remove any air bubbles.

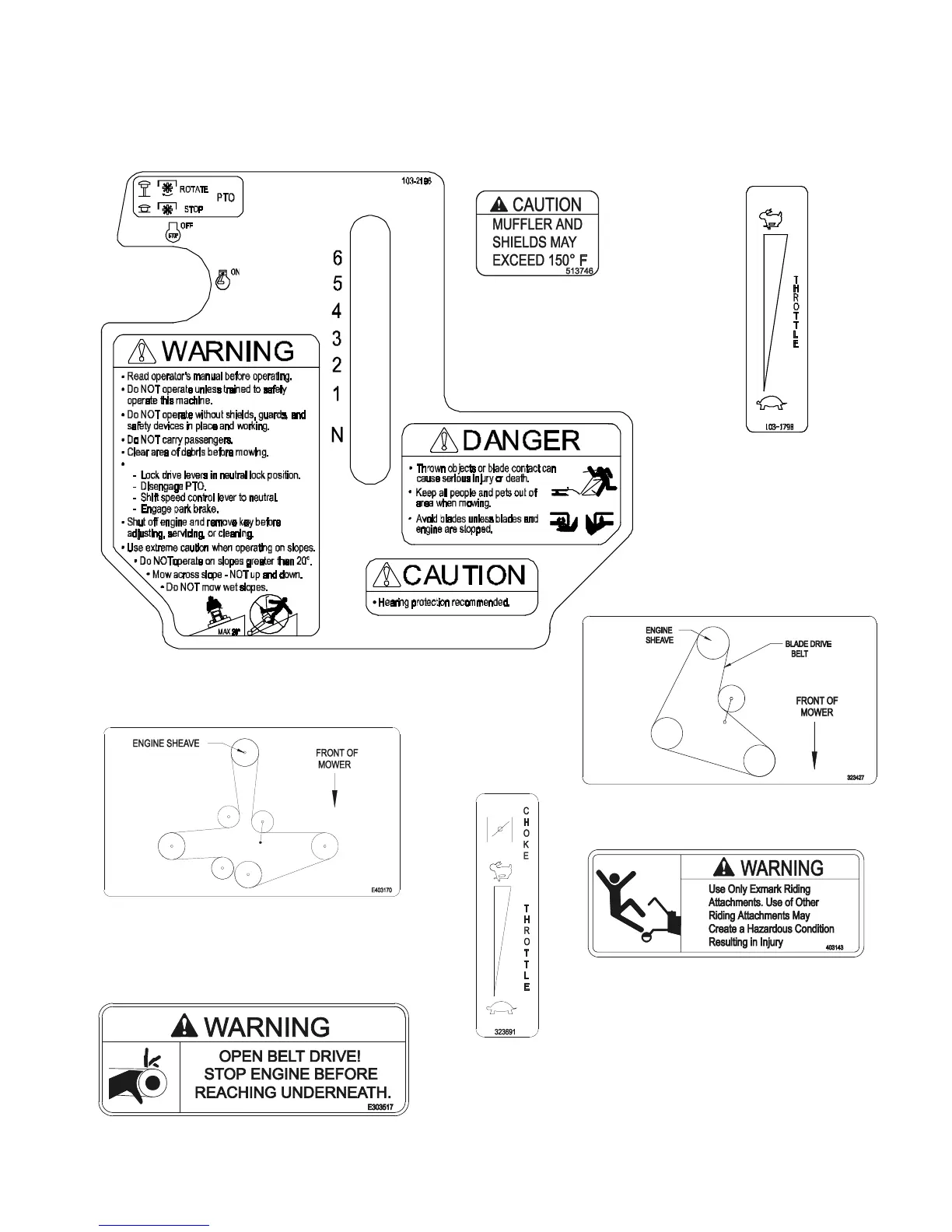

1.7.6 Familiarize yourself with the following safety signs and instruction labels. They
are critical to the safe operation of your Exmark commercial mower.
15 HP Kawasaki Units
PART NO. 103-2196
LOCATION: Console
15 HP Kawasaki Units
Engine Code FH451V-BS04
36” units – S/N 345,496 & higher
48” units – S/N 346,717 & higher
PART NO. 103-1798
LOCATION: RH Side of Console
PART NO. 1-303517
LOCATION: Left Side of Rear
Surface on Engine Deck
PART NO. 1-403143
LOCATION: Right Side of Rear
Surface on Engine Deck
PART NO. 1-513746
LOCATION: On Engine Blower
Housing Next to Muffler
PART NO. 1-403170
LOCATION: 48” Deck
PART NO. 1-323427
LOCATION: 36” Deck
15 HP Kawasaki Units
Engine Code FH451V-AS04
36” units – S/N 320,000-345,495
48” units – S/N 320,000-346,716
PART NO. 1-323691
LOCATION: RH Side of Console
To Next Page
