- 27 -

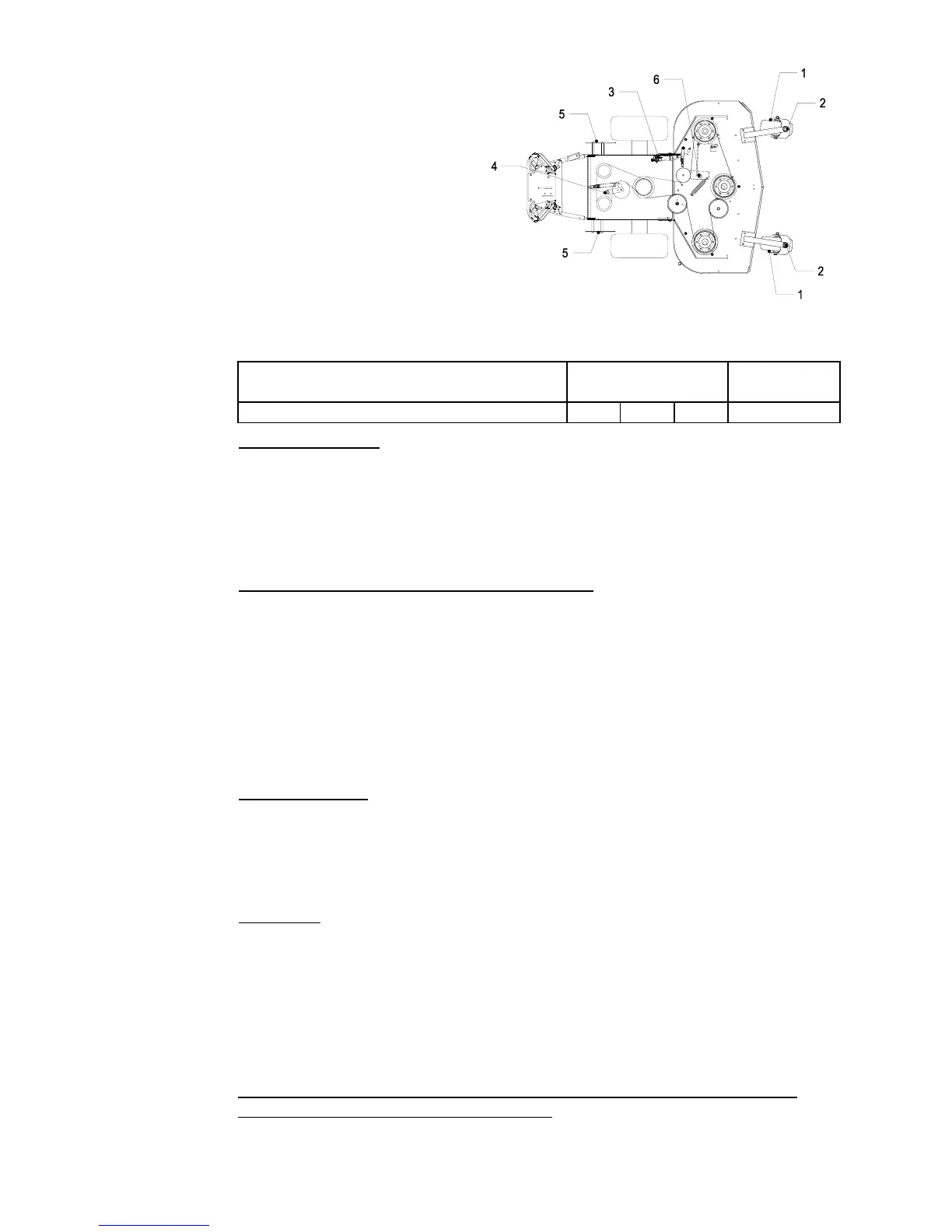

No. 4 Idler Pivot (Pump Drive)
Located Under Engine Deck
No. 4 & 6 (Idler Pivots)
Disassemble and grease once a
month under a “No Load” condition.
c) Lubricate pivot points with a spray penetrating lubricant as directed below.
SPRAY LUBRICANT CHART
PIVOT POINT
NO. OF PLACES
32” 36” 48”
SERVICE
INTERVAL
1. PTO Engagement Upper Bellcrank 1 1 1 Weekly
5.1.14 Check spark plugs.
Service Interval: See Engine Owners Manual
a) Stop engine and wait for all moving parts to stop. Remove key or spark
plug wire(s).
b) Remove spark plugs, check condition and adjust plug gap or replace with
new plugs.
5.1.15 Remove engine shrouds and clean cooling fins.
Service Interval: See Engine Owner's Manual
a) Stop engine and wait for all moving parts to stop. Remove key or spark
plug wire(s).
b) Remove cooling shrouds from engine and clean cooling fins. Also clean
dust, dirt and oil from external surfaces of engine which can cause
improper cooling.
c) Make sure cooling shrouds are properly reinstalled. Operating the engine
without cooling shrouds will cause engine damage due to overheating.
5.1.16 Change fuel filter.
Service Interval: As Required
a) A fuel filter is installed in the fuel line between the fuel tank and the
engine. Replace when necessary.
5.1.17 Refer to Engine Operators Manual for detailed maintenance regarding the engine.
5.1.18 Wheel hub - slotted nut torque specification.
When tightening the slotted nut on the wheel motor tapered shaft:
a) Torque the slotted nut to 100 ft. lbs. (136 N-m).
b) Further tighten the nut until the next set of slots line up with the cross hole
in the shaft.
c) Replace cotter pin.
Note: Do not use anti-seize compound on the wheel hub.
5.1.19 Thread locking adhesives such as “Loctite 242” or “Fel-Pro, Pro-Lock Nut-
Type” are used on the following fasteners:
a) All belt drive pulley setscrews.
