CAUTION
POTENTIAL HAZARD
♦ Raising the mower deck for service or maintenance
relying solely on mechanical or hydraulic jacks could
be dangerous.
WHAT CAN HAPPEN
♦ The mechanical or hydraulic jacks may not be enough
support or may malfunction allowing the unit to fall,
which could cause injury.
HOW TO AVOID THE HAZARD
♦ DO NOT rely solely on mechanical or hydraulic jacks
for support. Use adequate jack stands or equivalent
support.
c) Loosen but do not remove the top two bolts on each hydraulic motor
mounting bracket, (See Figure 12).
d) Remove the bottom sets of hardware for each bracket.
e) Reposition the mounting bracket to the desired height and reinstall the
bottom hardware.
f) Tighten all hardware and remount drive wheels.

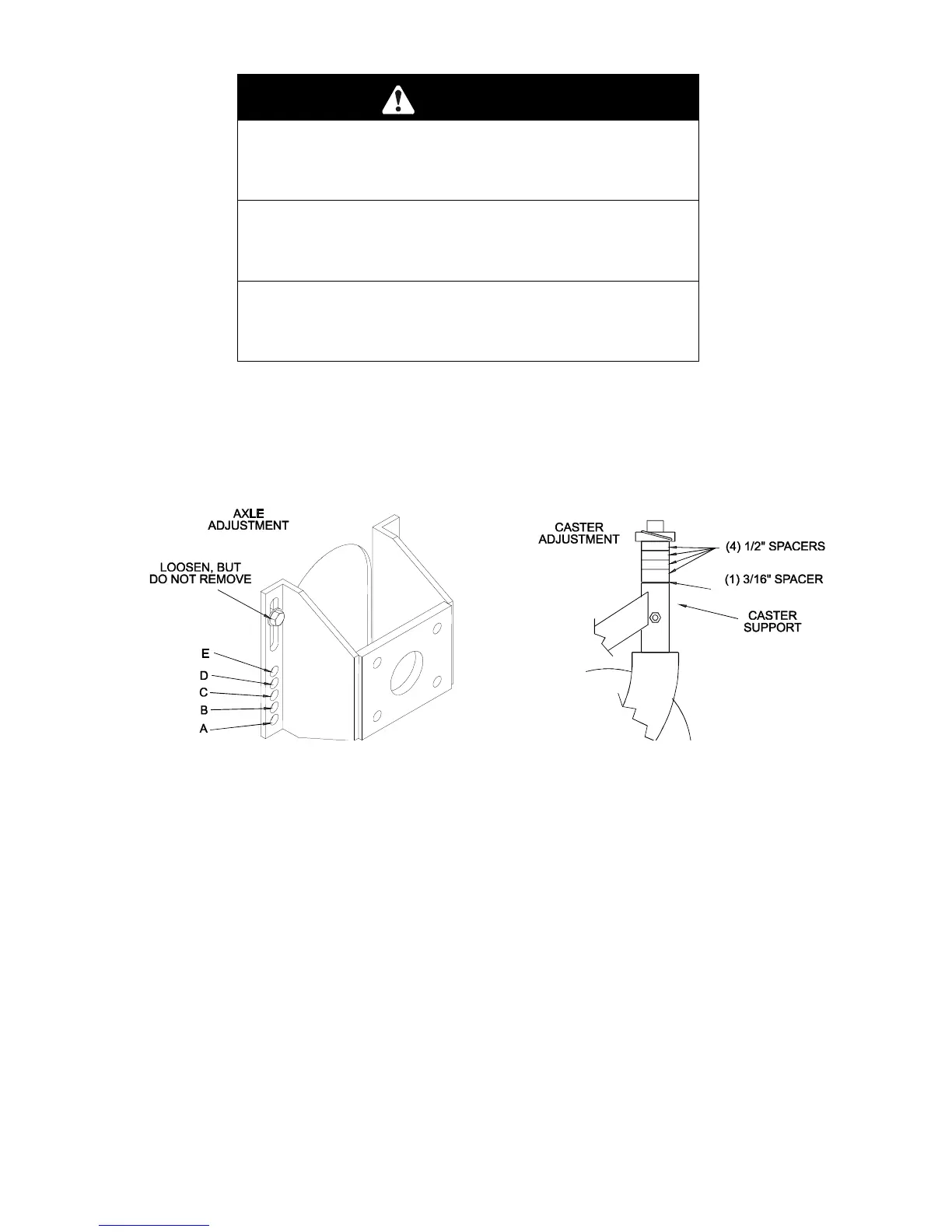

FIGURE 12
AXLE and CASTER HEIGHT ADJUSTMENT
Refer to the following chart to properly adjust desired cutting height.
(1.3 cm)
(.47 cm)
