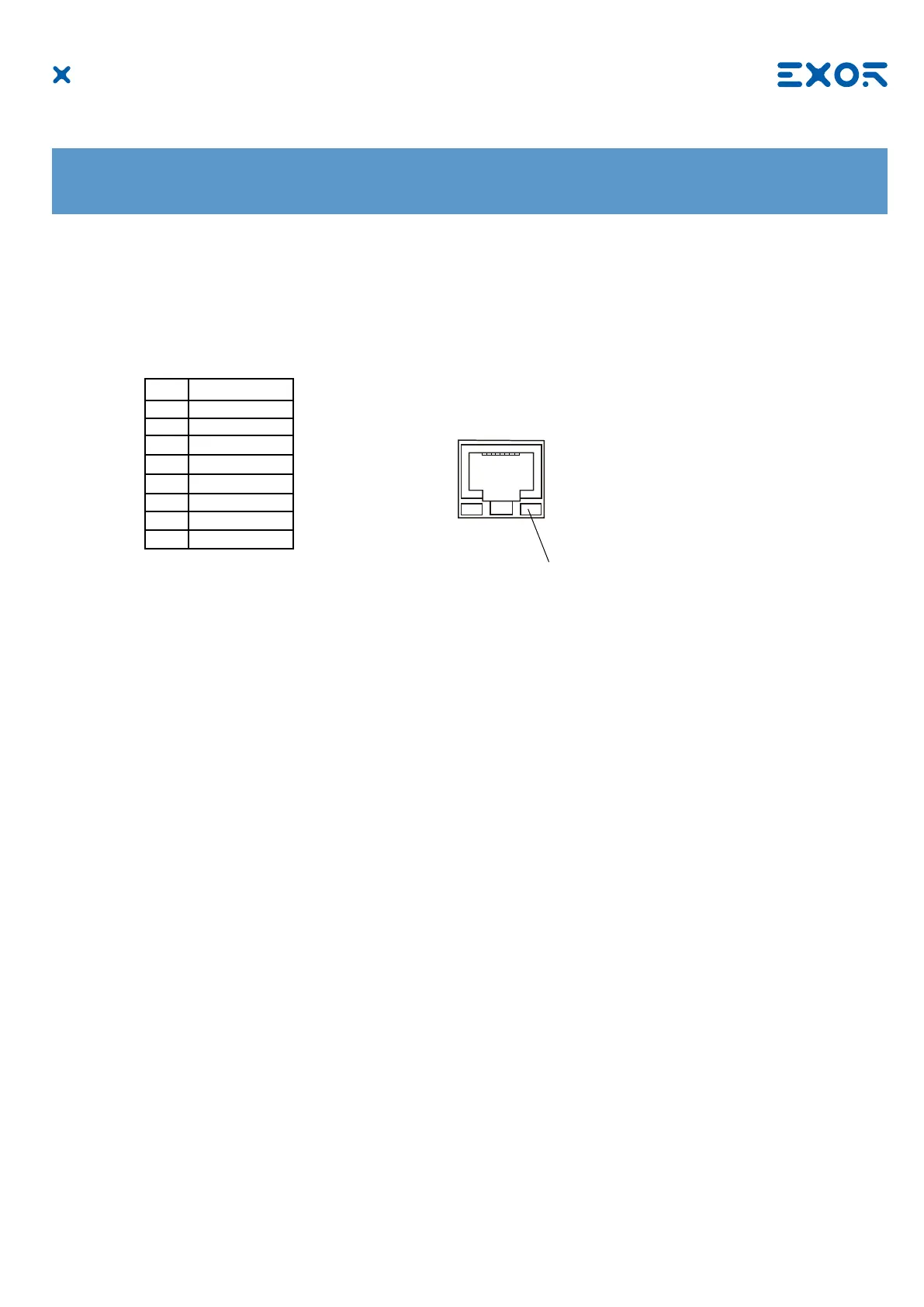

Pin Description
1 TX OUT +
2 TX OUT -
3 RX OUT +
4
5
6 RX OUT -
7
8
1 8
ON: Valid link has NOT been detected
OFF: Valid link has been detected
5 Connections
5.2 Ethernet Port
