- 11 -

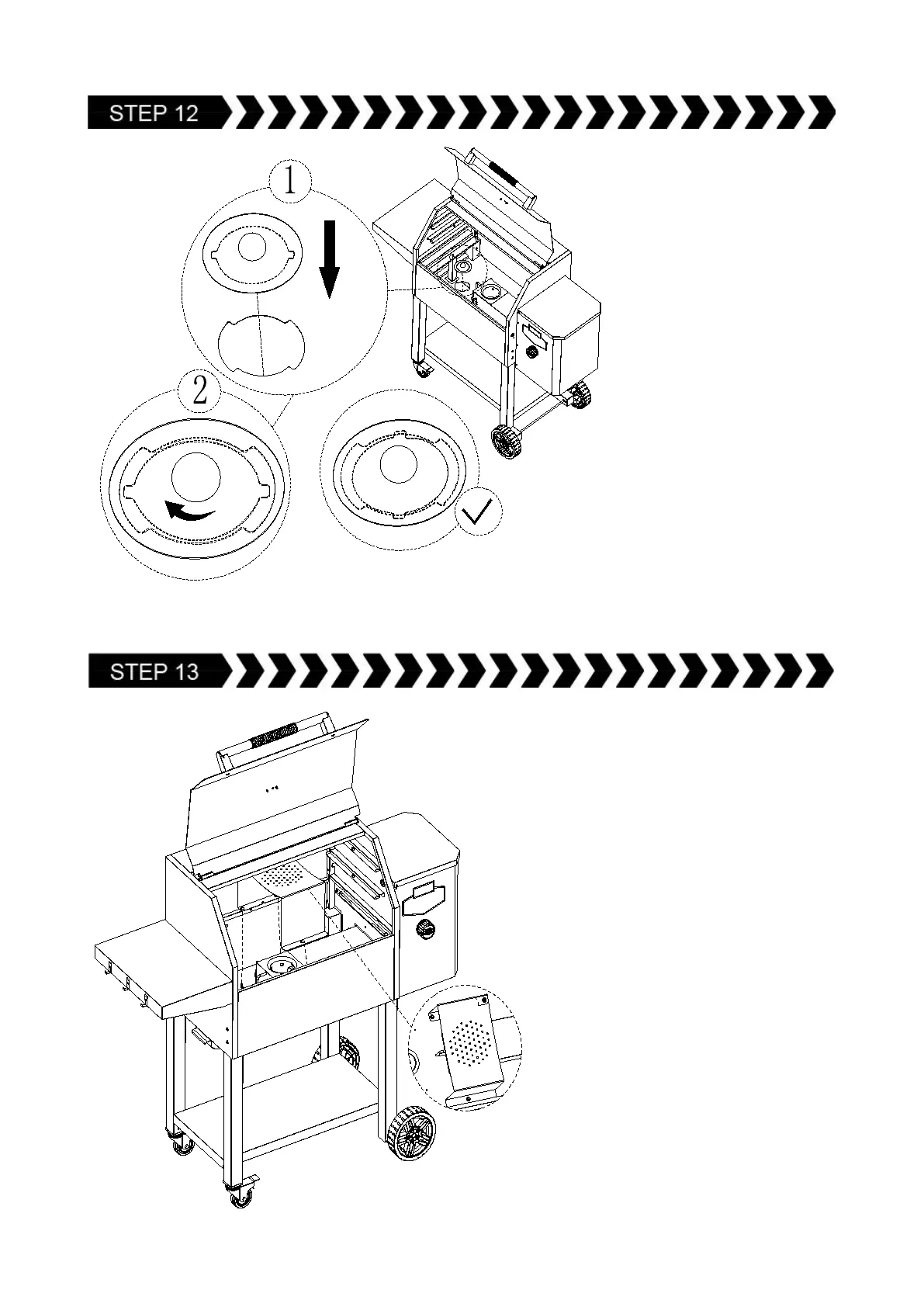

Parts Required:
 Ash Clean-out Cover (Part
#21) x1
Installation:
 There are two ears on the
back side of Ash Clean-out
Cover (Part #21).
 Put this cover into the
hole, with 2 ears at
orientation shown, then
turn 90 degree as shown.
Parts Required:
 Flame Tamer (Part #3) x1
Installation:

Place Flame Tamer (Part
#3) over Fire pot. Locate
using 3 Holes .
