EXPERT GRILL Commodore - Page 8

- 6 -

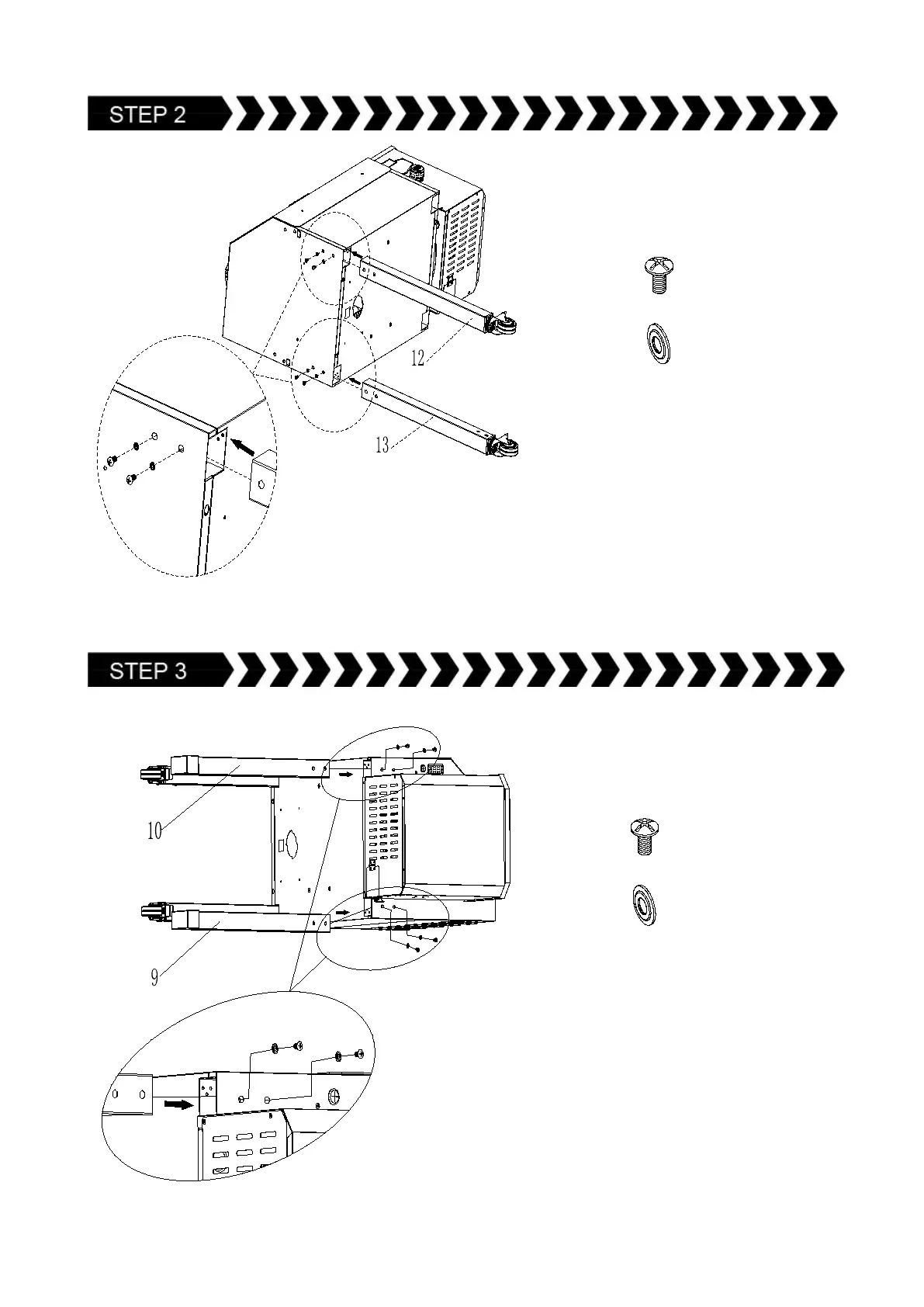

Parts / Hardware Required:
 Left Front Leg (Part #12) x1
 Left Rear Leg (Part #13) x1
 Firebox Body (Part #2) x1
 (Hardware B) x4
 (Hardware C) x4
Installation:
 Insert the Left Front Leg (Part
#12) and Left Rear Leg (Part
#13) into Firebox Body (Part
#2)
 Use 4 screws (Hardware B) and
4 washers (Hardware C).
Note: The washers concave side down
when install.
Parts / Hardware Required:

Right Rear Leg (Part #9) x1

Right Front Leg (Part #10) x1

Firebox Body (Part #2) x1

(Hardware B) x4

(Hardware C) x4
Installation:

Insert the Right Rear Leg (Part
#9) and Right Front Leg (Part
#10) into Firebox Body (Part
#2)

Use 4 screws (Hardware B) and
4 washers (Hardware C).
Note: The washers concave side down
when install.
