Expobar Office automatic - Identification of External Components; General Features; Water Reservoir

1. Identification of External Components
3 2
4
WIDE 240 m.
HIGH 225 mm
DEPTH 420 m
m
5 1
9
8
6
WIDE 240 mm
HIGH 225 mm
DEPTH 420 m
m
WIDE 260 mm
HIGH 225 mm
DEPTH 450 m
m
10
3.1 7
3.1
F
ig. 1

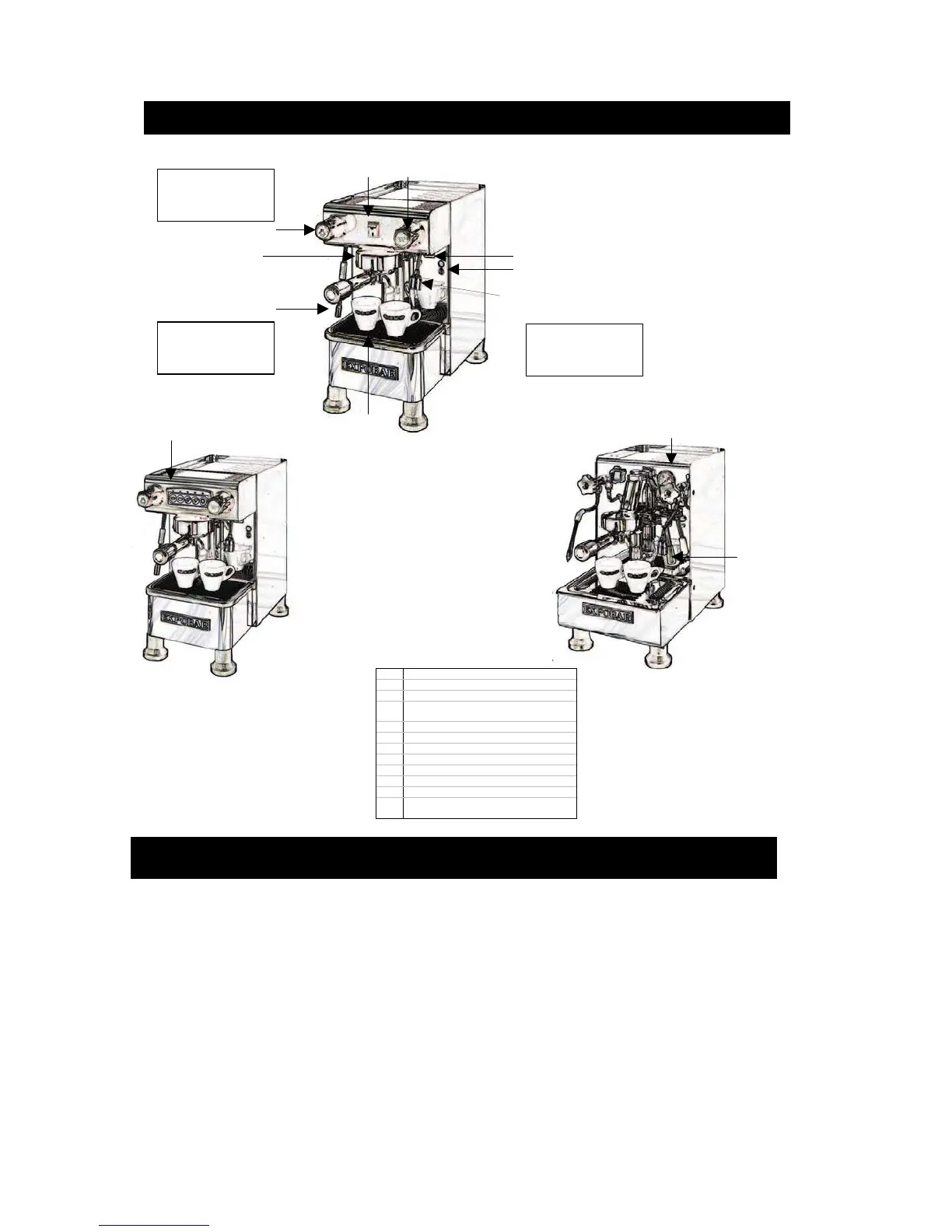

1 MAIN SWITCH
2 HOT WATER TAP
3 BREWING PUSH BUTTON
3.1 ELECTRONIC SWITCHBOARD
(CONTROL MODEL)
3.2 BREWING LEVER
4 STEAM TAP
5 BREWING GROUP UNIT
6 STEAM PIPE
7 DRIP TRAY
8 HOT WATER PIPE
9 ELEMENT PILOT
10 BOILER PRESSURE READER
(MANOMETER)
2. General Features
• Stainless steel body.
• Switch panel with 4 automatic dosing levels or lever operated.
• Automatic boiler refill from either mains water or tank.
• Water and steam tap.
• Professional brewing group with direct pre-infusion chamber.
• Cleaning valve.
• 1200W element.
• Water softener incorporated.
• Copper boiler with heat exchanger.
• Water reservoir.
• Vibrating motor-pump built-in.
