Extech Instruments 380260 User Manual

380260-en-EU_V2.5 8/14
6

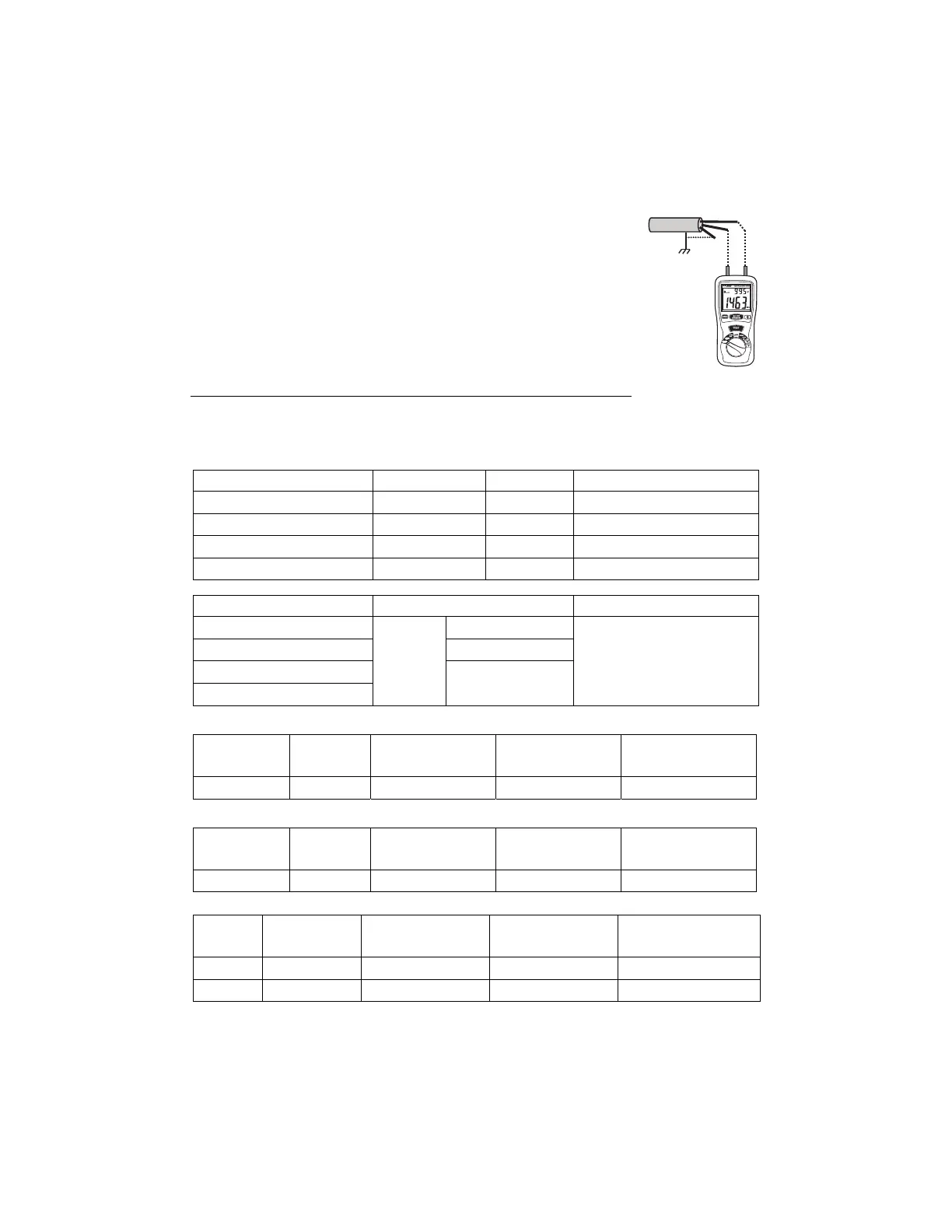

Testing Cables
1. Disconnect the cable under test from the line.
2. Disconnect the opposite end of the cable to avoid errors as a result of
leakage from other equipment.
3. Check each conductor to ground and/or lead sheath by connecting one
meter lead to ground and/or lead sheath and the other meter lead to
each of the conductors in turn.
4. Check insulation resistance between conductors by connecting meter
leads to conductors in pairs. Refer to diagram at right.
Specifications
Range Specifications
Accuracies are specified as % reading + digits at 23
o
C ± 5
o
C < 80% RH
MEGOHMMETER RANGES
Range Resolution Accuracy Terminal Voltage
200M250V 0.1M
±3% + 5d 250V + 10% ~ -0%
200M500V 0.1M
±3% + 5d 500V + 10% ~ -0%
0-1000M1000VDC1M
±3% + 5d
1000V + 10% ~ -0%
1000-2000M1000VDC 1M
±5% + 5d 1000V + 10% ~ -0%
Range Test Current Short Circuit Current
200M250V
1mA
250k(load)
<1mA
200M500V 500k(load)
0-1000M1000VDC
1M
1000-2000M1000VDC
AC VOLTAGE (40Hz-400Hz)
Range Resolution Accuracy Input Impedance Overload
Protection
750VAC 1V ±1.2% + 10d
10M
750Vrms
DC VOLTAGE
Range Resolution Accuracy Input Impedance Overload
Protection
1000VDC 1V ±0.8% + 3d
10M
1000Vrms
RESISTANCE
Range Resolution Accuracy Max. Open Circuit
Voltage
Overload
Protection
200 0.1
±1% + 2d 4.5V 250Vrms
200k 0.1k
±1% + 2d 3V 250Vrms
