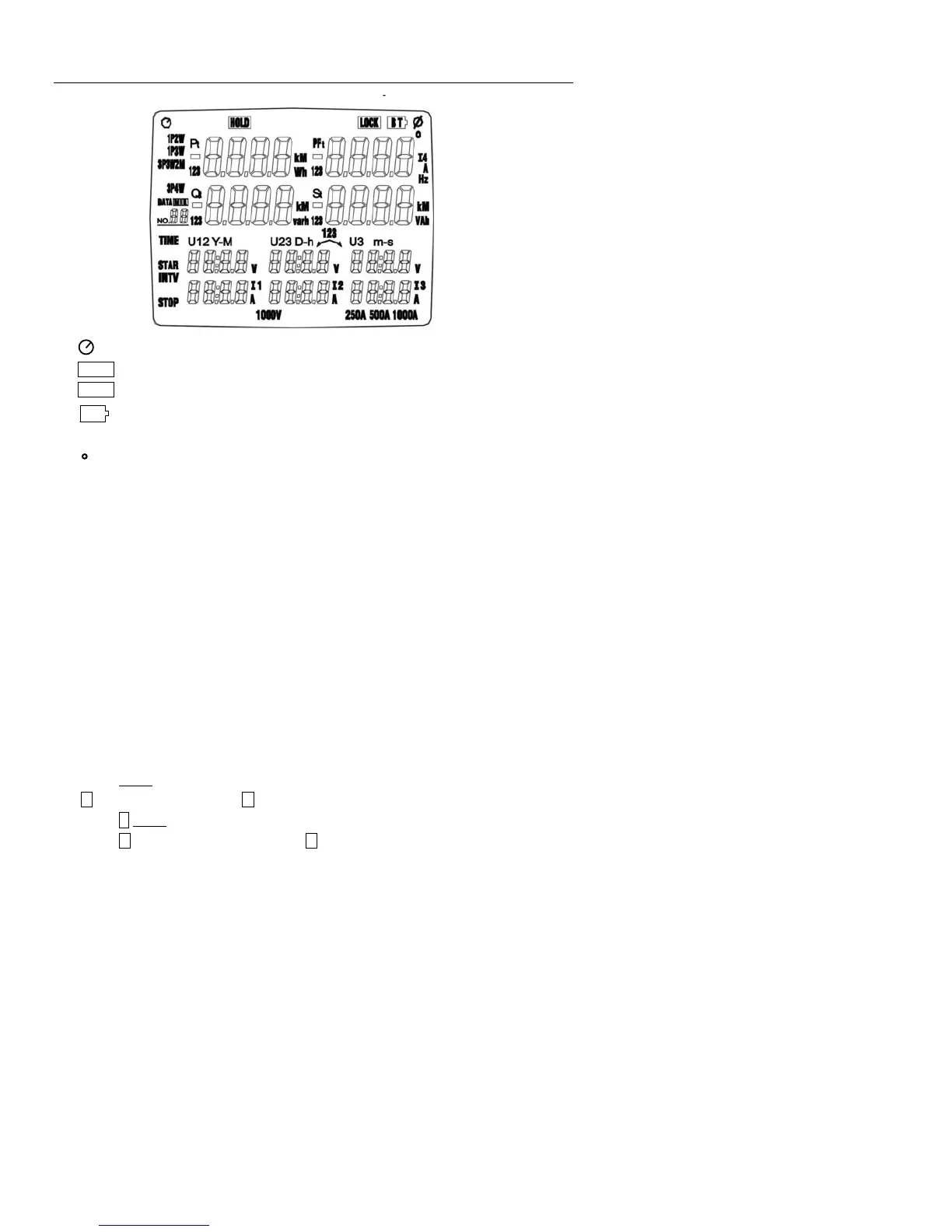

Display Description
: Auto power off indicator
HOLD : Display hold mode
LOCK : Lock-out mode
BT
: Low battery indication
ψ: Phase angle display
: Phase angle unit of measure (degrees)
1P2W: Single-phase two-wire power line indicator
1P3W: Single-phase three-wire power line indicator
3P3W2M: Three-phase three-wire power line indicator
3P4W: Three-phase four-wire power line indicator
P1: Phase 1 active power indicator
P2: Phase 2 active power indicator
P3: Phase 3 active power indicator
Pt: Total active power indicator and total active energy indicator
KW: Active power unit of measure (kilo-watt)
KWh, MWh: Active energy units of measure (kilo-watt hours and Mega-watt hours)
PF1: Phase 1 power factor indicator
PF2: Phase 2 power factor indicator
PF3: Phase 3 power factor indicator
PFt: Total power factor indicator
I4: Current probe No. 4 measurement indicator
Hz: Frequency unit of measure (hertz)
DATA No.××
: Manually datalogged memory address (01~99)
M : Datalog record indicator; M displays momentarily each time a data set is recorded
DATA R No.××: Memory address for recalled reading
DATA M ××: Auto datalogging indicator; M flashes each time a data set is recorded.
01 ~ 10: Memory blocks (20,000 max. data sets can be stored)
FF: Memory full indicator (when 10 memory blocks or 20,000 readings are filled)
