DIMENSIONS

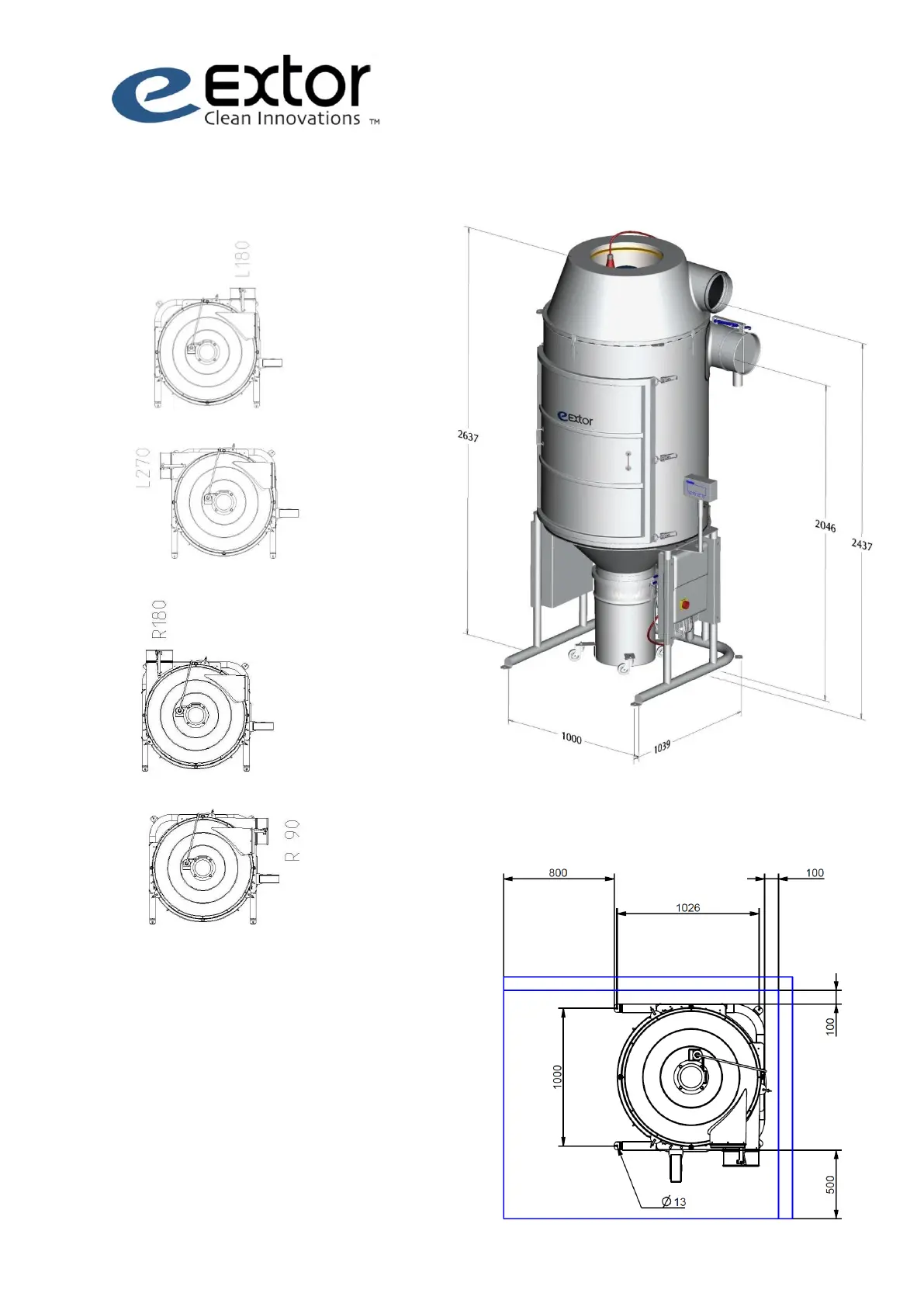

When performing the installation,
remember the minimum space required for
installation, maintenance and operation.
The minimum space to be left around the
equipment should conform to the
rectangular area in the Figure on the le
ft.
