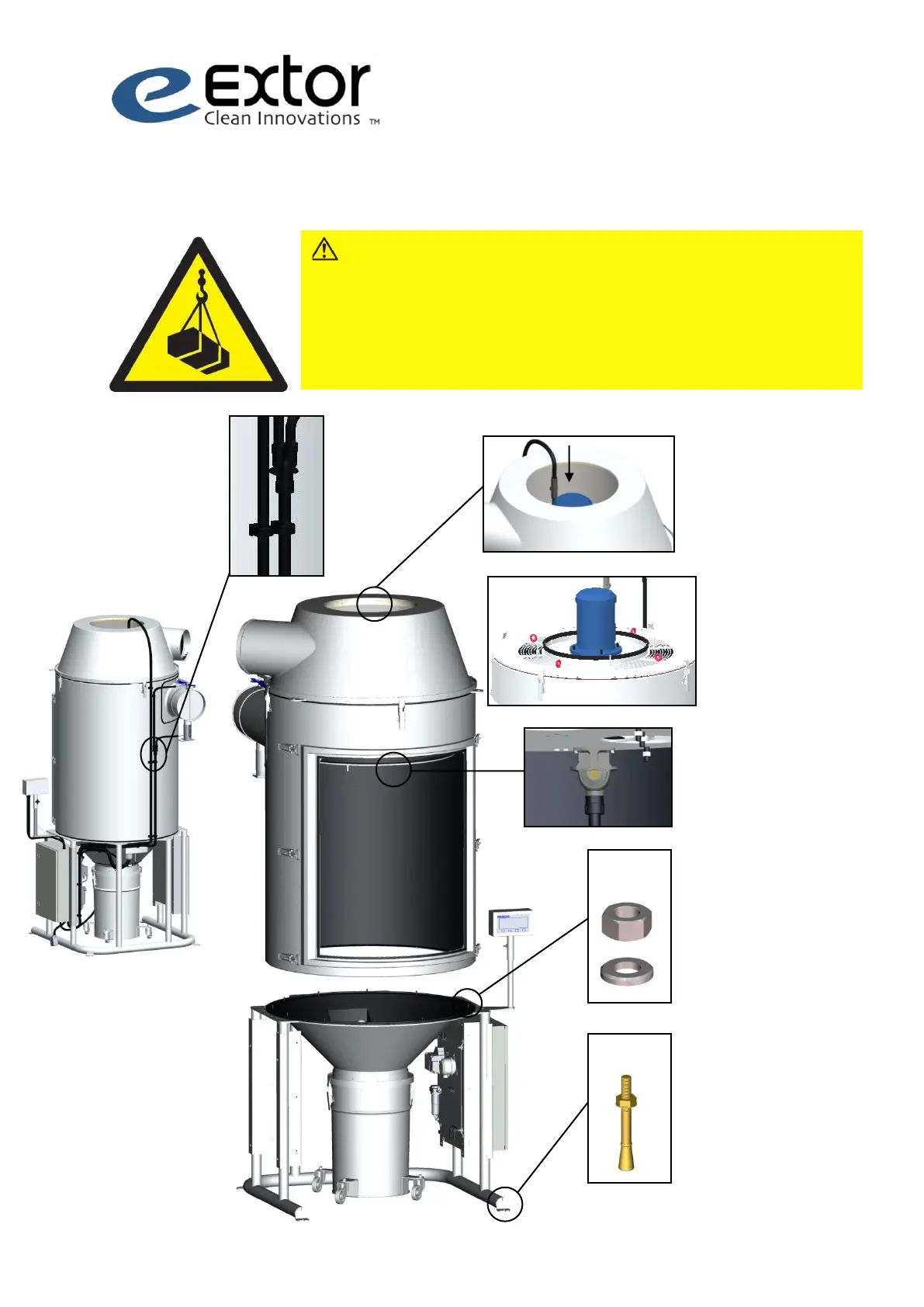

Extor 4100R5 - Assembly

Page 14 / 37
x 4
5. Connect the
pneumatic plug.
3. Usually the suction
unit is fastened to the
concrete floor with
expansion bolts. If
necessary, use
adjustment blocks to
ensure levelness of the
suction unit.
2. Install the upper
section to the
stand. Make sure
that the alignment
is correct.
1. Attach slings to the
four eyes. Ensure
uniform load
distribution.
4. Route cables to
cable clamps.
x 12
WARNING
Do not stand under a suspended load.
Use only approved lifting gear for lifting, assembling and transferring
the equipment. Otherwise there is a risk of severe injuries or death.
ASSEMBLY
6. Connect the
power plug of the
motor.
