24
N.B. The bottom grill of the insert must stand
at least 1 cm above the marble fire top of the
facing.

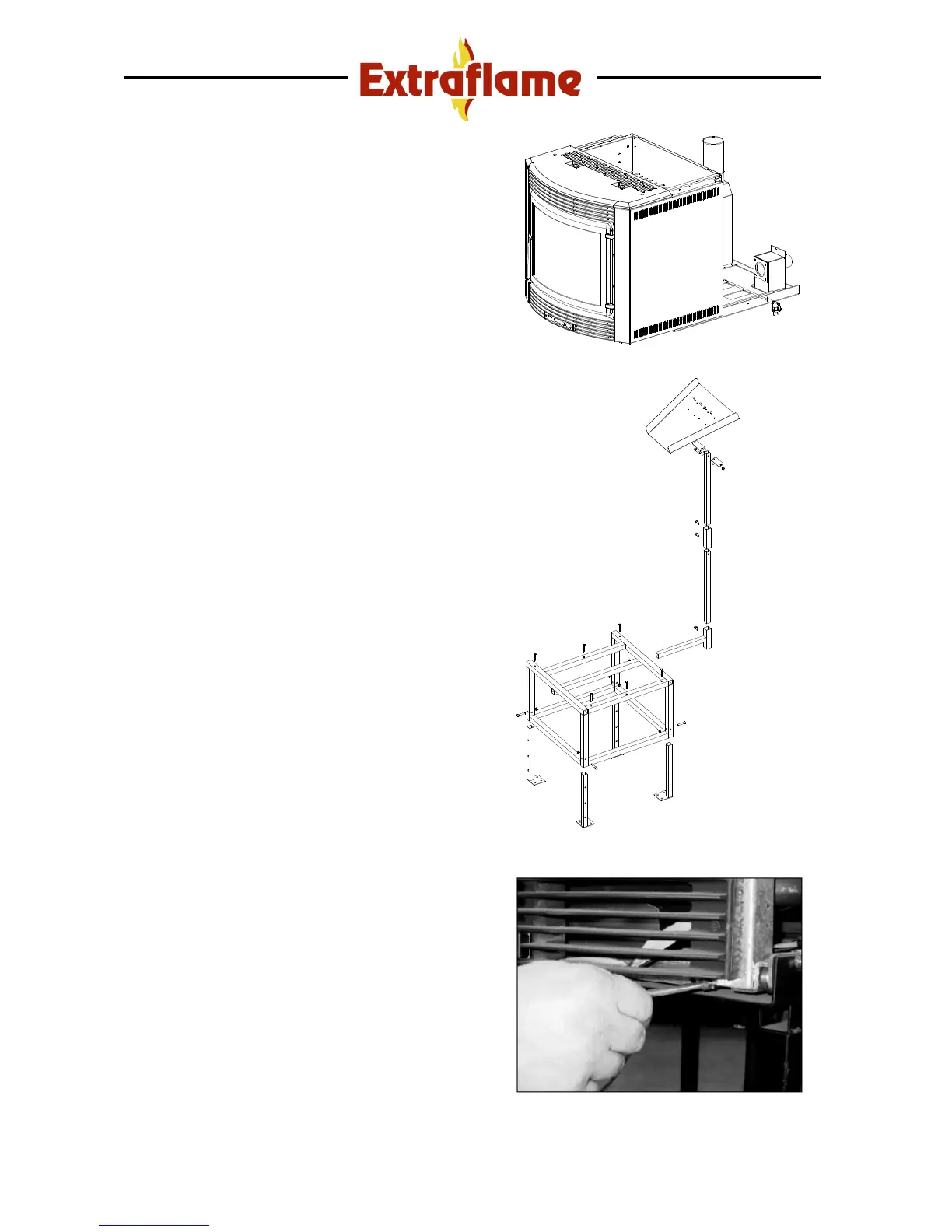

Installation with pedestal (optional)
Description of components:
• Maxi Comfort insert
• Pedestal adjustable in height
• Side feeding hopper
• Adjustable hopper support
Installation with pedestal
Position the base in the desired point and adjust to
the desired height using the feet (the bolts are
located on the four outer edges of the pedestal at
the bottom).
Provide a power outlet on the rear of the pedestal
that will be easy to reach once the installation is
complete.
Fix the pedestal to the floor using strong steel screw
anchors 8 mm diameter.
Fix the sliding base to the frame using the bolts.
Connect the exhaust outlet and air intake as
described in the previous section.
Then tilt the insert so that the wheels fit into the
guide rails, slide it until the exhaust auger coupling
is completely inserted in the exhaust conveyor box.
Then use the socket wrench provided to turn the
screw anticlockwise.
To check that the insert is correctly coupled with the
base, connect the plug to the power outlet: the
display should light up.
Fit the hopper support as shown in Fig. 10.
Insert the support in the coupling provided.
N.B.: When using our pedestal, it is necessary to
create an inspection window in the chimney that
allows you to check the pellet level in the hopper
while filling it.
N.B. The hopper support can be fitted on
either side of the Maxi Comfort insert.
Adjust the height and angle of the hopper according
to the fireplace to be built.
N.B. The bottom grill of the insert must stand
at least 1 cm above the marble fire top of the
facing.
Fig. 4
Fig. 5
Fig. 6
