23

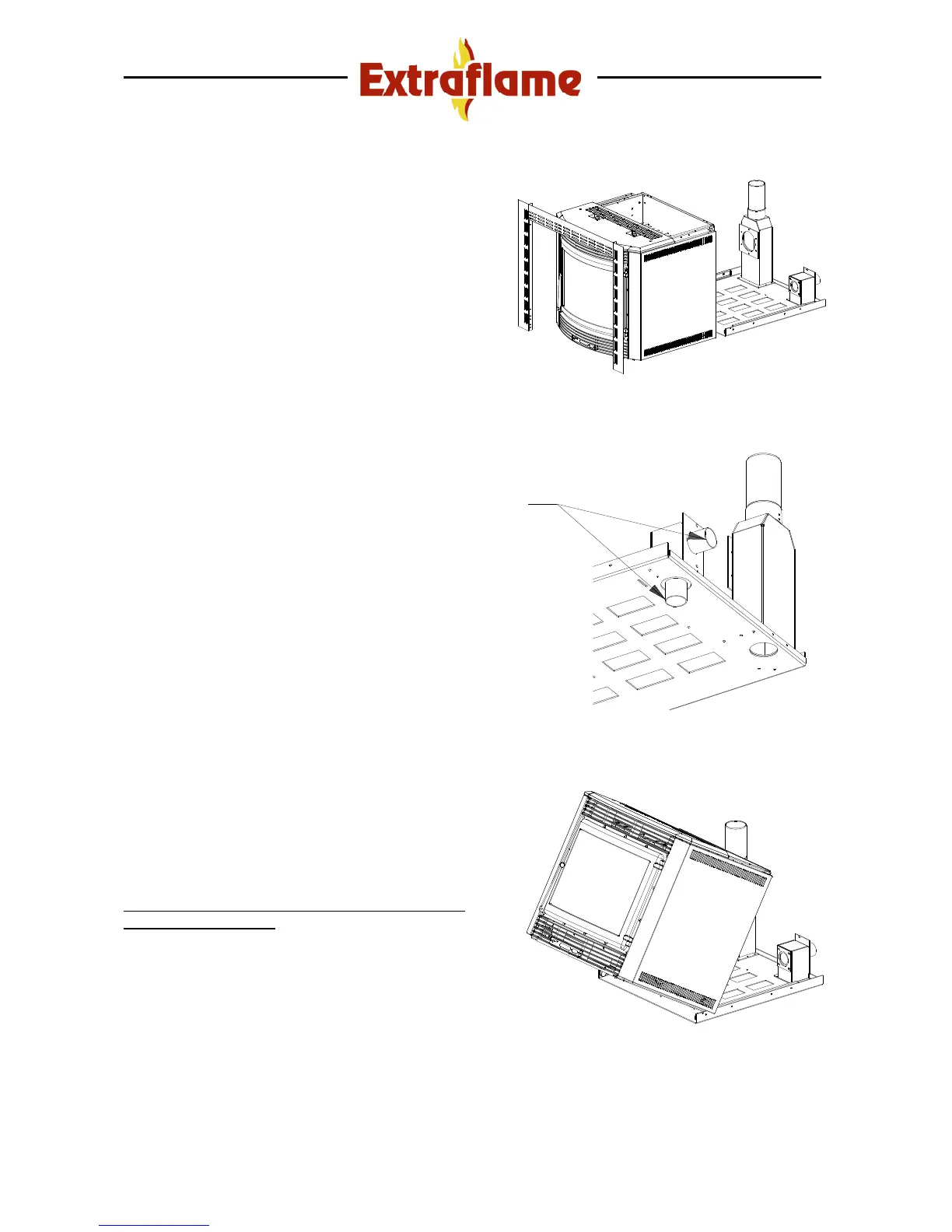

6. MAXI COMFORT INSERT INSTALLATION
The Maxi Comfort insert is supplied with a metal
sliding base that enables it to be installed in an
existing fireplace.
The base allows you to slide out the insert easily for
maintenance and cleaning at the end of the year. If
you do not already have a fireplace, you can build
one using the insert support pedestal (optional kit),
which is designed to secure the insert to the floor.
Description of the components:
Sliding base
Guide rails
Exhaust pipe
Primary air intake pipe
Power outlet
Adapter frame
Fitting with sliding base
Take the sliding base and place it in the existing
fireplace.
Using chalk, mark the base fixing holes on the floor
of the fireplace.
Drill the holes for 8 mm steel screw anchors.
Drill a 60 mm hole in correspondence with the air
intake.
N.B. The air intake must be made outside the
fireplace, because it must not draw in
overheated air.
Provide a power outlet on the rear of the insert, so
that the plug can be reached easily once the
installation is complete.
Fix the base using the attachment screws.
Make the connection to the exhaust outlet and air
intake, following the instructions previously
described.
Then tilt the insert so that the wheels fit into the
guide rails and slide it in until the exhaust auger
coupling is completely inserted in the exhaust
conveyor box.
Use the socket wrench provided to turn the
screw anticlockwise.
To check that the insert is correctly coupled with the
base, connect the plug to the power outlet: the
display should light up.
Fig. 1
Fig. 2
Fig. 3
