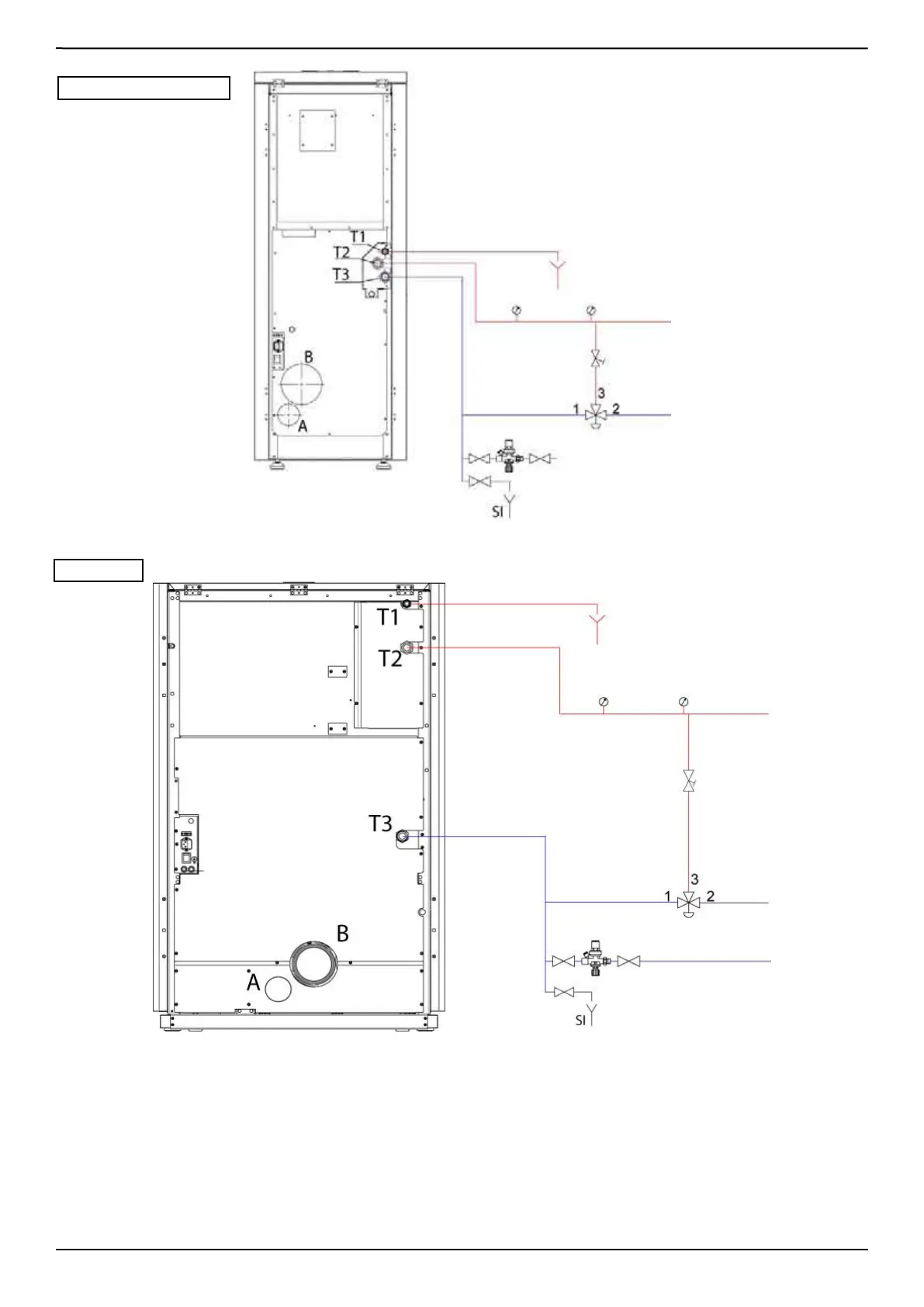

TECHNICAL FEA
TURES
10
LP14_20 - Lucrezia
T1
3 bar 1/2
“ saf
ety drain
T2
boiler 1“ ow/outlet
T3
boiler 1“ return/inlet
M
manomet
er
T
thermometer
G
lling system
SI
safety valve dischar
ge
gure 6
gure 7
Safety valve
discharge
Thermometer
Manometer
Return
Filling sy
stem
Flow
55°C automatic thermostatic mixing valve
balance valve
system exhaust
55°C automatic thermostatic mixing valve
Safety valve discharge
Thermometer
Manometer
Return
Flow
balance
valve
LP30
Filling sy
stem
system exhaust
9
11
Table of Contents
Default Chapter
3
Table of Contents
3
English
5
Warnings
5
Burn Pot Bracket
6
Commissioning Operations
6
Model Only)
6
Mounting the Tiles (Lucrezia Idro)
7
Safety
8
Technical Features
9
Safety Devices
12
Distances of Safety Devices According to the Standard
13
Hydraulic System
13
Installation and Safety Devices
13
Safety Devices for Closed Vessel System
13
Instant Domestic Hot Water Production Accessory Kit
14
8 Automatic Thermostatic Mixer Valve
14
Automatic Thermostatic Mixer Valve (Mandatory)
14
Mandatory
14
9 Instant Domestic Hot Water
14
Installation
15
Installations Allowed
15
Installations Not Allowed
15
Connection to the Smoke Evacuation
15
System
15
Smoke Channel or Fittings
15
Chimney or Individual Flue
16
Distances Recommended for Boiler
16
Compartment
16
Appliance Connection to the Flue and Combustion Products Evacuation
17
Chimney Cap
18
Connection to External Air Inlets
18
Insulation, Finishings, Covering and Safety
19
Recommendations
19
National, Regional, Provincial and Town
19
Council Regulations
19
Pellets and Feeding
19
Product Functionality
20
Control Board
20
Display Icons Key
20
Functioning Cycle
21
Basic Instructions
21
Ignition
21
Work
21
Pump Functioning
21
Switch-Off
21
Additional Thermostat
21
Additional Thermostat Functioning with Stby
21
Active
21
Additional Thermostat Installation
22
Air Discharge Function
22
15 Air Discharge Function
23
User Parameters
23
Temperature Set
24
Set Regulations
24
Enable Chrono
24
Pellet Setting
24
Status
24
User Menu
24
Set Clock
24
Set Chrono
24
Language
25
Heat Exchanger Cleaning
25
Quick Access Diagram
26
Lp30 Display and Product Functionality
27
Lp30 Menu Structure
28
Temperature Regulation
29
Power Regulation
29
User Regulations Menu
29
Automatic/Manual Mode
29
Pellet Setting
30
Status Menu
31
Set User
31
Set Clock
31
Chrono Regulation
32
Set Language Menu
33
Set Heat Exchanger Menu
33
Lp14_20_30 Boiler Cleaning
34
Burn Pot Cleaning
34
Door Gasket and Ash Drawer
34
Connection to the Flue and Cleaning of the same
34
Lucrezia Idro Cleaning
35
Burn Pot Cleaning
35
Deflector Cleaning
35
Cleaning the Ash Drawer
35
Door Gasket and Ash Drawer
35
Technician Yearly Cleaning
36
22 Technician Yearly Cleaning
37
Displays
37
Alarms
37
Warranty Conditions
38
