MOUNTING THE TILES LUCREZIA IDRO
7
ENGLISH
MOUNTING THE TILES LUCREZIA IDRO3.

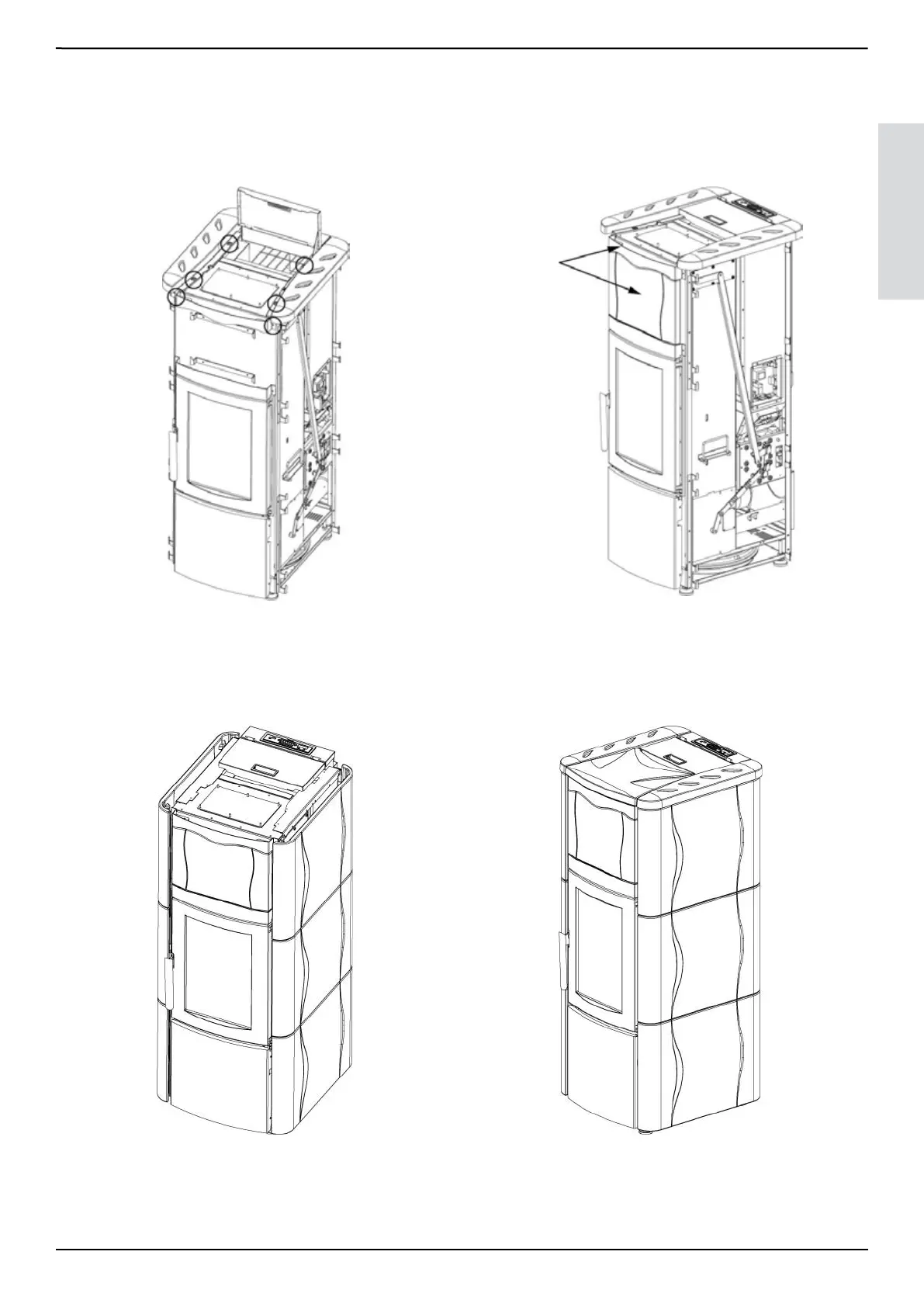

1. Remove the 4 xing screws of the 2 cast iron sides as indicated
in the drawing.
2.Remove the 2 screws that x the upper grate.
3. Position the central tile in the appropriate iron hooks.
4. Fix the upper grate with the 2 previously removed screws.
gure 2 gure 3
5. Position the side tiles in the appropriate iron hooks, starting
from the bottom upwards, in the two sides of the stove.
(NB The side tiles are all the same)
6. Reposition the 2 cast iron sides and x with the 4 previously
removed screws.
7. Position the ceramic covering between the two cast iron sides.
gure 4 gure 5
