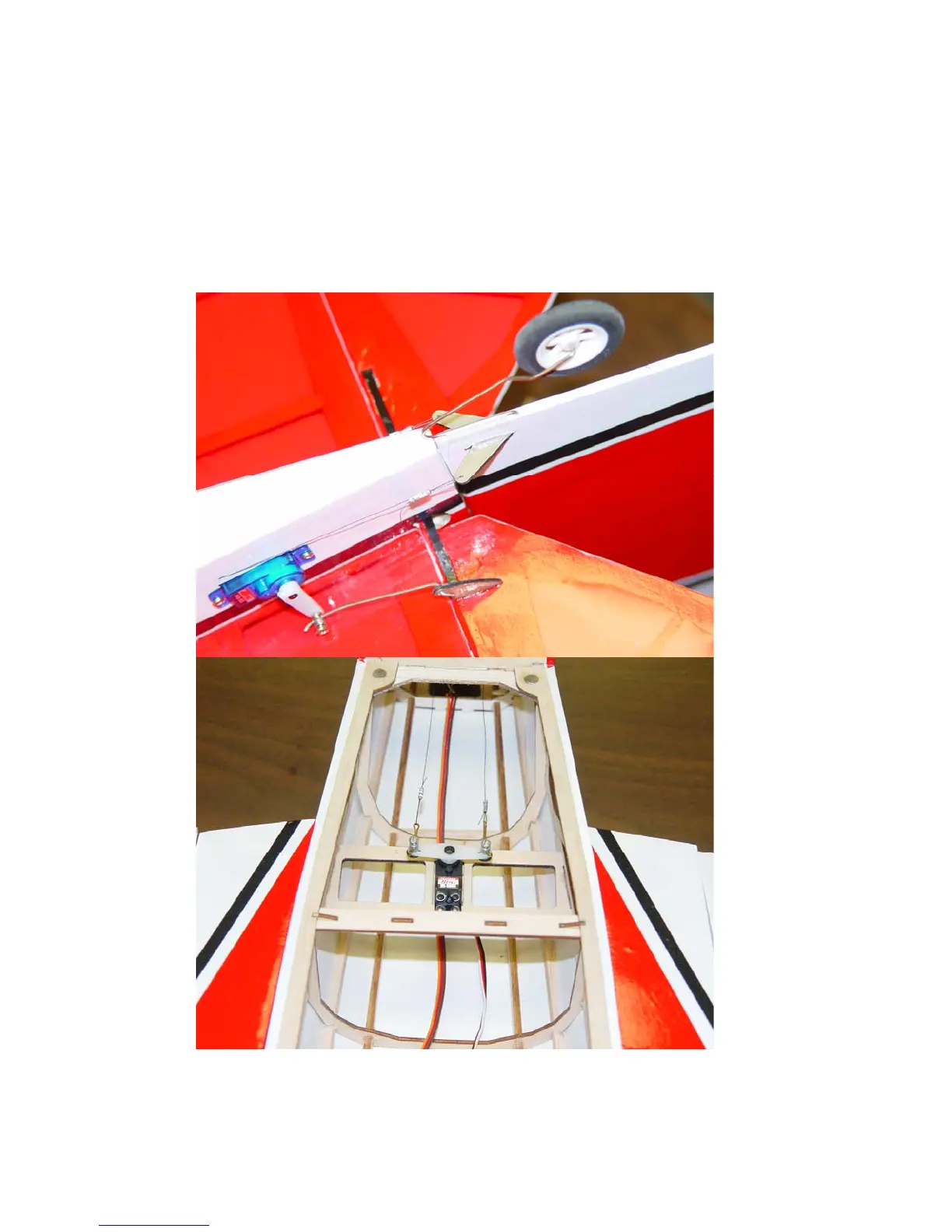

12. Mount the rudder servo as shown inside the fuselage. We highly recommend
using a more powerful servo for the rudder such as the Hitec HS-56, HS-65 or JR
281 to prevent control surface blow back. Use the supplied hardware to assemble
the pull-pull cable system. At the rudder control horn end, the cable will be
threaded through the control horn and secured with a small aluminum tube which
is crimped around the cable. At the servo end, the cable is threaded through the
hole in the connector as shown and then inserted into the ez connector. Center the
servo electronically and make sure the rudder is in the neutral position. Tighten
the screw in the ez connector. Make sure the cables are taut, but not overly tight,
which may cause the servo to bind.
