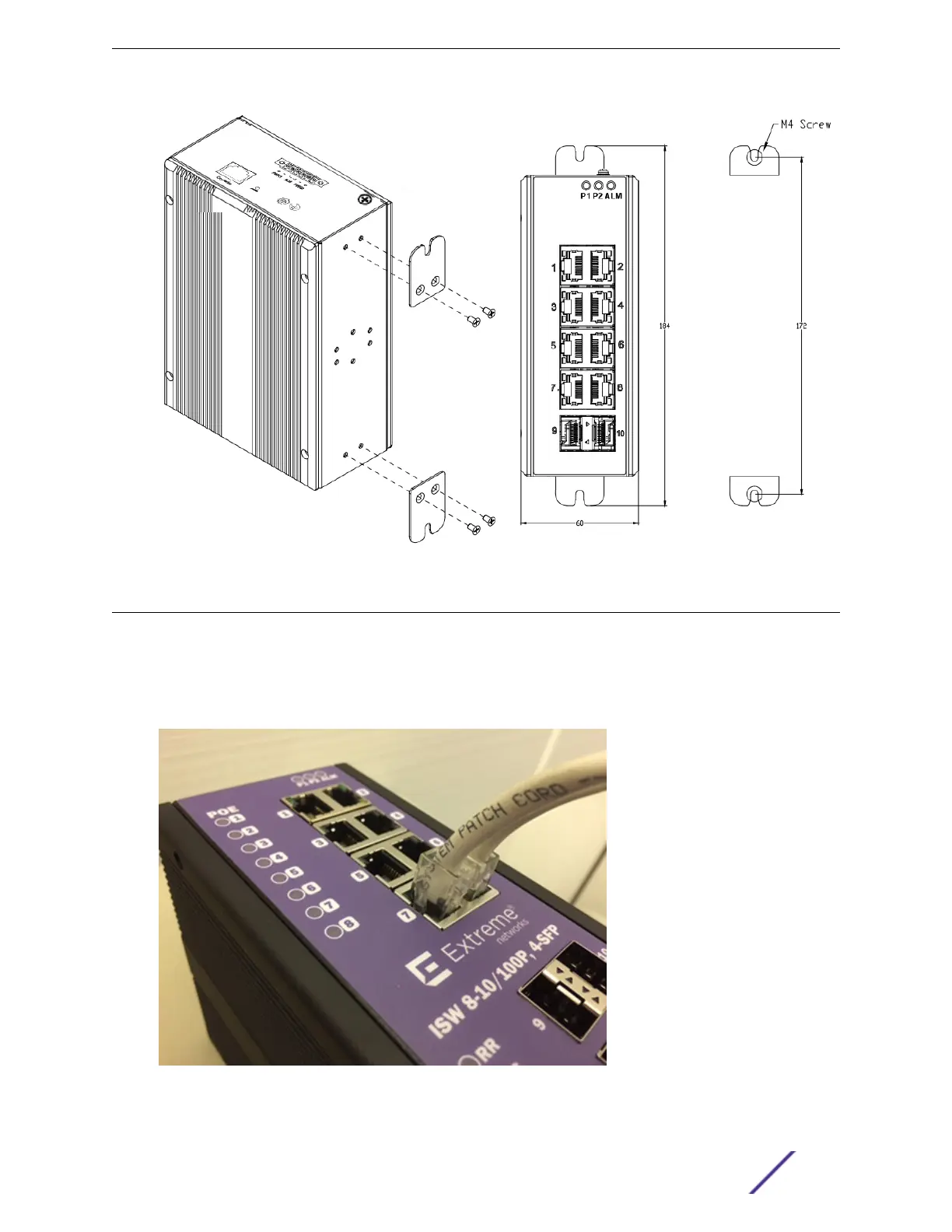

Connecting the Ethernet Interface (RJ45 Ethernet)
ISW provides two types of electrical (RJ45) and optical (mini-GBIC) interfaces.
•
To connect to a PC, use a straight-through or a cross-over Ethernet cable.
•
To connect the ISW copper port to an Ethernet device, use UTP (Unshielded Twisted Pair) or STP
(Shielded Twisted Pair) Ethernet cables.
The pin assignment of RJ45 connector is shown in Figure 6 and Table 4
Installation
ISW Series Managed Industrial Ethernet Switch Quick Installation Guide 17
