Extreme Networks ExtremeSwitching ISW Series User Manual

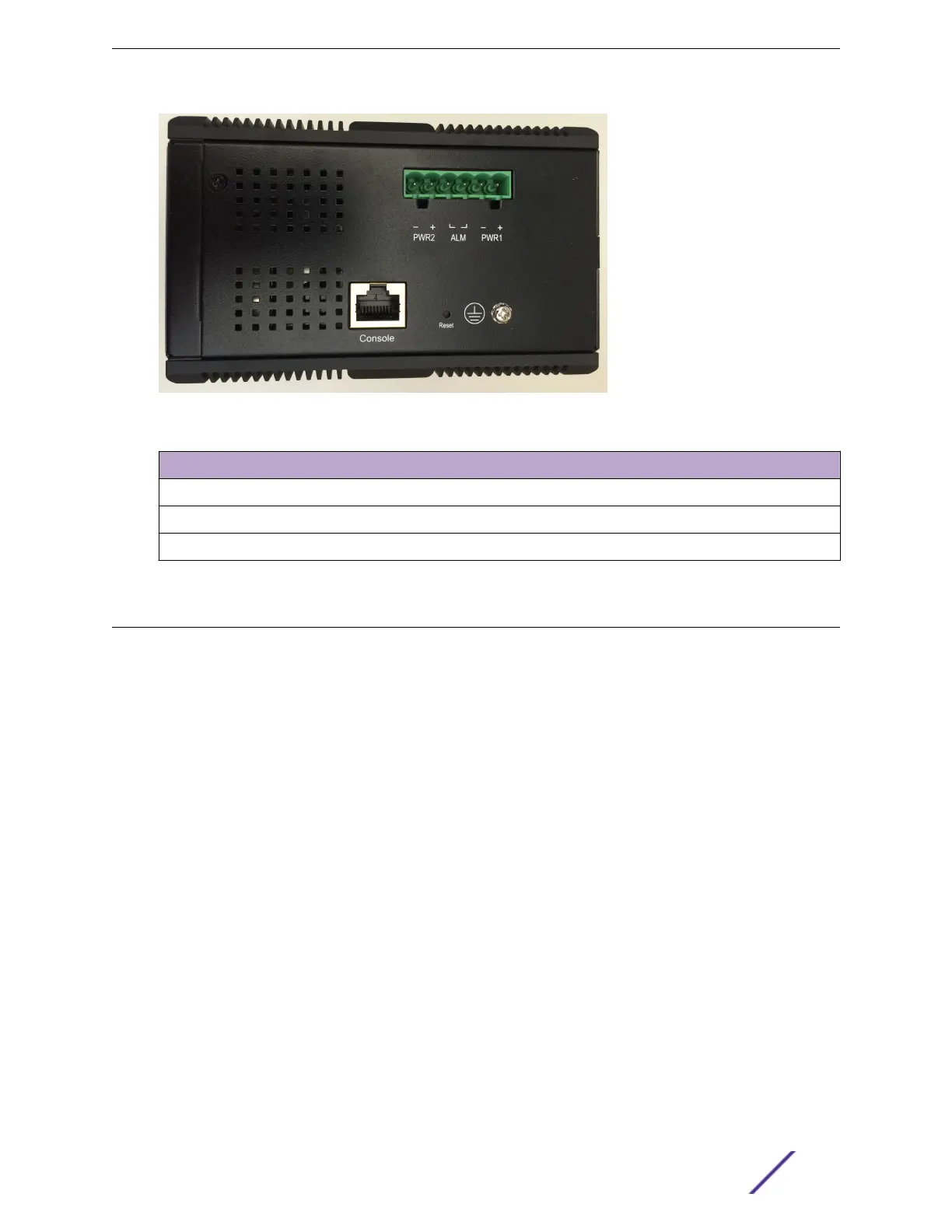

Figure 3: Top Panel
Top Panel
Power Input (Dual) 6P Terminal Block
Console (RS232) RJ45
Reset Push Button
Alarm Relay and Ground Connection
The alarm relay output contacts are in the middle of the DC terminal block connector as shown in Figure
4.
The alarm relay out is “Normal Open,” and it will be closed when detected any predefined failure such as
power failures or Ethernet link failures.
The relay output with current carrying capacity of 0.5A @ 24 VDC.
Industrial Series Switch Overview
ISW Series Managed Industrial Ethernet Switch Quick Installation Guide 11
