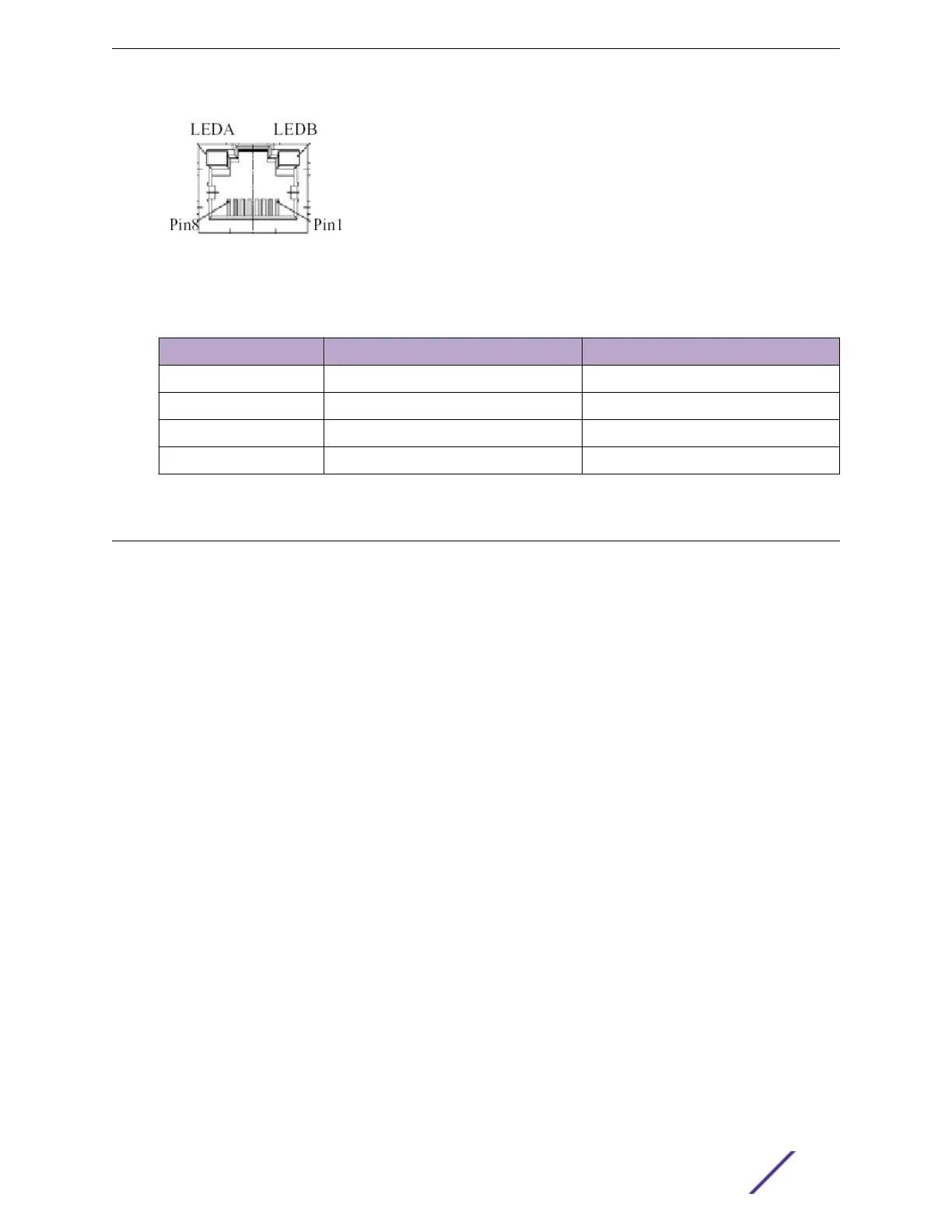

Figure 6: RJ45 Connector Pins
Table 4: RJ45 Connector Pin Assignment
Pin Assignment PoE Assignment
1, 2 T/Rx+, T/Rx- Positive VPort
3, 6 T/Rx+, T/Rx- Negative VPort
4, 5 T/Rx+, T/Rx- X
7, 8 T/Rx+, T/Rx- X
Connecting the Ethernet Interface (Fiber)
For both 100/1000 Mbps fiber speed connections, the SFP slots are available. The SFP slot accepts the
fiber transceivers that typically have an LC connector.
The fiber transceivers have options of multimode, single mode, long-haul, or special-application
transceivers.
Prepare a proper SFP module and install it into the optical port. Then you can connect fiber optics
cabling that uses LC connectors or SC connectors (with the use of an optional SC-to-LC adapter) to the
fiber optics connector.
Refer to LED Status Indicators on page 12 for the normal operational LED status.
Figure 7: Fiber optics cable with LC duplex connector
Installation
ISW Series Managed Industrial Ethernet Switch Quick Installation Guide 18
