• One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
• One rear redundant power supply connector.

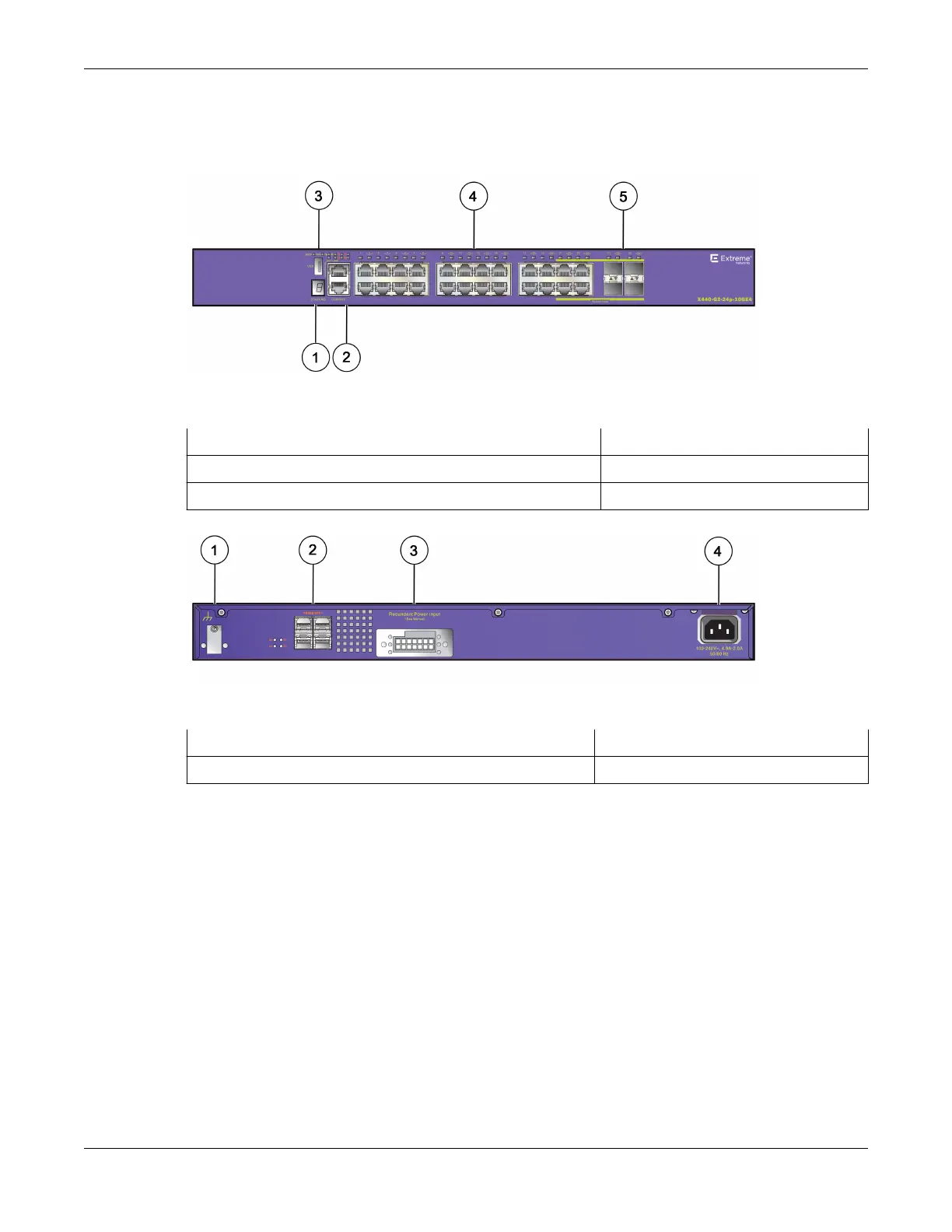

Figure 22: ExtremeSwitching X440-G2-24p-10GE4 Front Panel
1 = Stack number indicator 4 = 10/100/1000BASE-T copper ports
2 = Console port/Ethernet management port 5 = 1GBASE-X SFP combination ports
3 = USB port (active with ExtremeXOS version 22.2 or later)
Figure 23: ExtremeSwitching X440-G2-24p-10GE4 Rear Panel
1 = Grounding lug
3 = Redundant power input
2 = SFP Ports upgradeable to 10GBASE-X 4 = AC power input socket
ExtremeSwitching X440-G2-48t-10GE4 Switch Ports and Slots
The ExtremeSwitching X440-G2-48t-10GE4 switch ports and slots include:
• 48 front panel ports of 10/100/1000BASE-T (RJ45). Both half-duplex and full-duplex
communication are supported on ports 1 through 16 and 25 through 40. The rest of the ports are full-
duplex only.
• Four unpopulated front panel 1GBASE-X SFP combination ports.
• Four unpopulated rear panel 1GBASE-X SFP+ ports that can be used as either 1Gb ports or 10Gb
ports, where the 10Gb
configuration requires an upgrade through additional licensing..
Alternately, you can convert two of the ports to stacking ports using the enable stacking-
support command. Doing so would provide you with the option of two 1Gb ports and two stack
ports or two 10Gb ports and two stack ports. In the latter configuration, an additional license would
be required for the 10Gb non-stacking ports.
ExtremeSwitching Switches
ExtremeSwitching X440-G2-48t-10GE4 Switch Ports
and Slots
ExtremeSwitching Hardware Installation Guide 37
