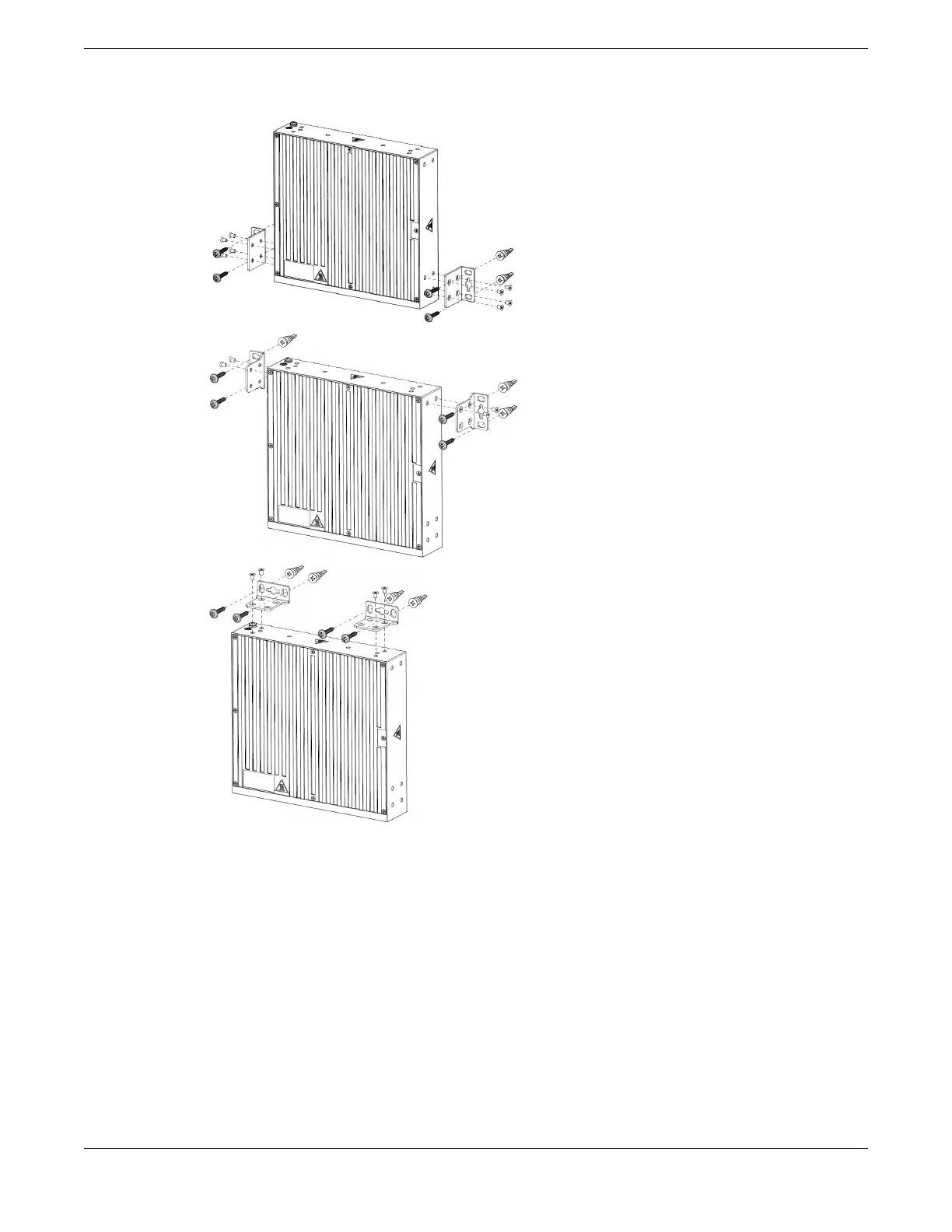

Figure 234: V300-8P-2T-W Wall Mounting
2. Use the optional short bracket as a template and mark the holes to be used. Extreme recommends
using 2 holes per short rack ear.
Installing Expansion Modules
Install a V300 Virtual Port Extender on a Wall
ExtremeSwitching Hardware Installation Guide 297
