Extreme Networks ExtremeSwitching X695 Series - Summit X460-G2-48 p-GE4 Switch Ports and Slots

• Rear dual PSU power slots with front-to-back or back-to-front airflow.
• One rear slot for fan module with front-to-back or back-to-front airflow.
5
3 4
1 2
MGT FAN P1 P 2 S1
CLK ACT LINK
S2
X460-G2-48x
49
51
50 52
1 0Gb E SFP + All P or ts S y nc hr on o us E th e rn et
-10GE4

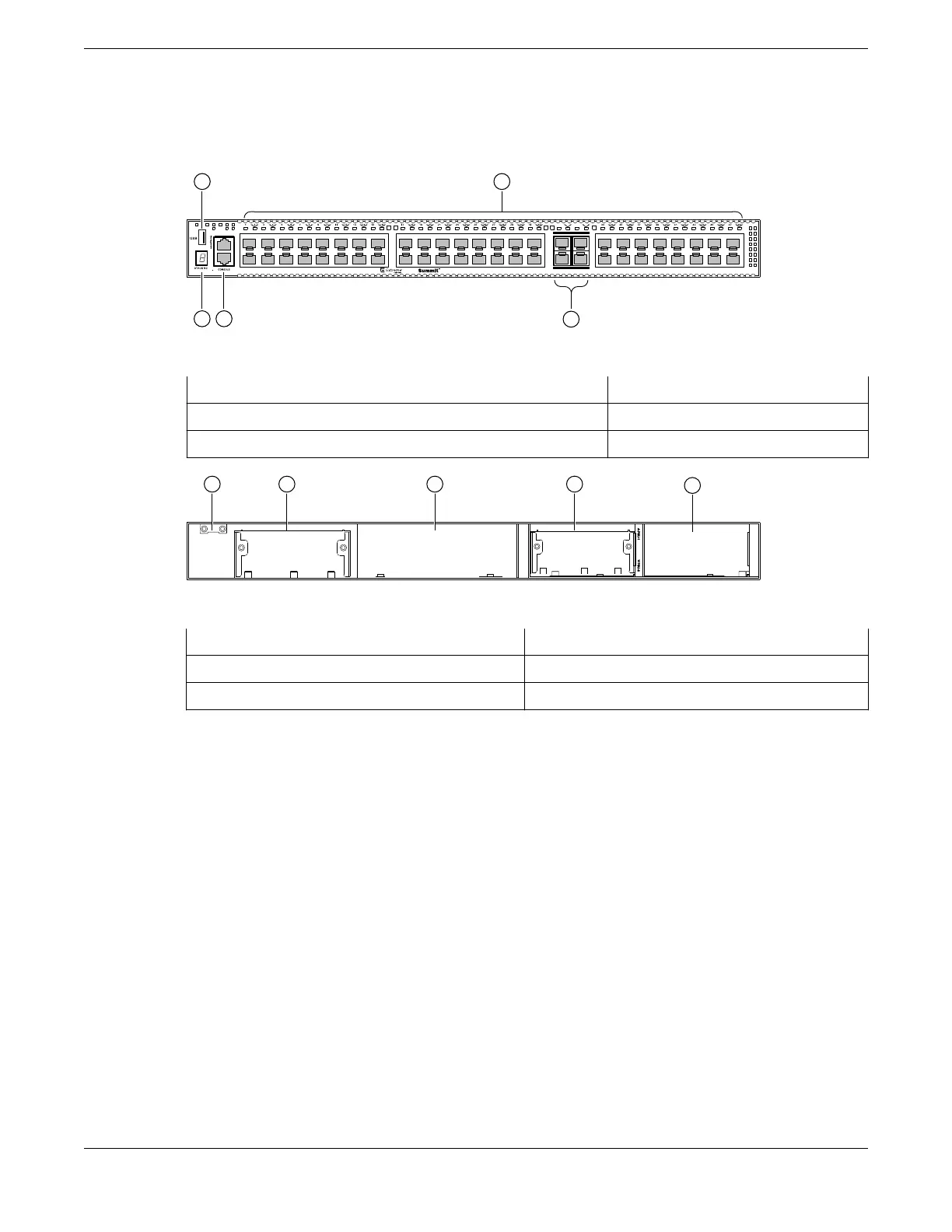

Figure 70: X460-G2-48x-10GE4 Front Panel
1 = Stack number indicator 4 = 100/1000BASE-X ports
2 = Console port/Ethernet management port 5 = SFP+ 10GBASE-X ports
3 = USB port
1 2 3 4
5
Figure 71: X460-G2-48x-10GE4 Rear Panel
1 = TM-CLK (clock) slot cover
4 = Blank power supply cover
2 = VIM slot cover 5 = Power supply slot
3 = Fan module slot
Summit X460-G2-48p-GE4 Switch Ports and Slots
The Summit X460-G2-48p-GE4 switch ports and slots include:
• 48 front panel PoE+ ports of 10/100/1000BASE-T (ports 1-48).
• Four front panel ports of 1GBASE-X SFP (ports 49-52).
• One front panel USB port.
• Ethernet management port 1 x 10/100/1000BASE-T.
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One rear panel VIM slot.
• One rear panel TM-CLK (clock) slot.
• Rear dual PSU power slots with front-to-back or back-to-front
airflow.
• One rear slot for fan module with front-to-back or back-to-front airflow.
Summit X460-G2-48p-GE4 Switch Ports and Slots
