6. Align the red dot on the back of the access point against the bracket red dot.
Note
The accessory has a circular tip that fits into the circular depression on the back of the
access point.

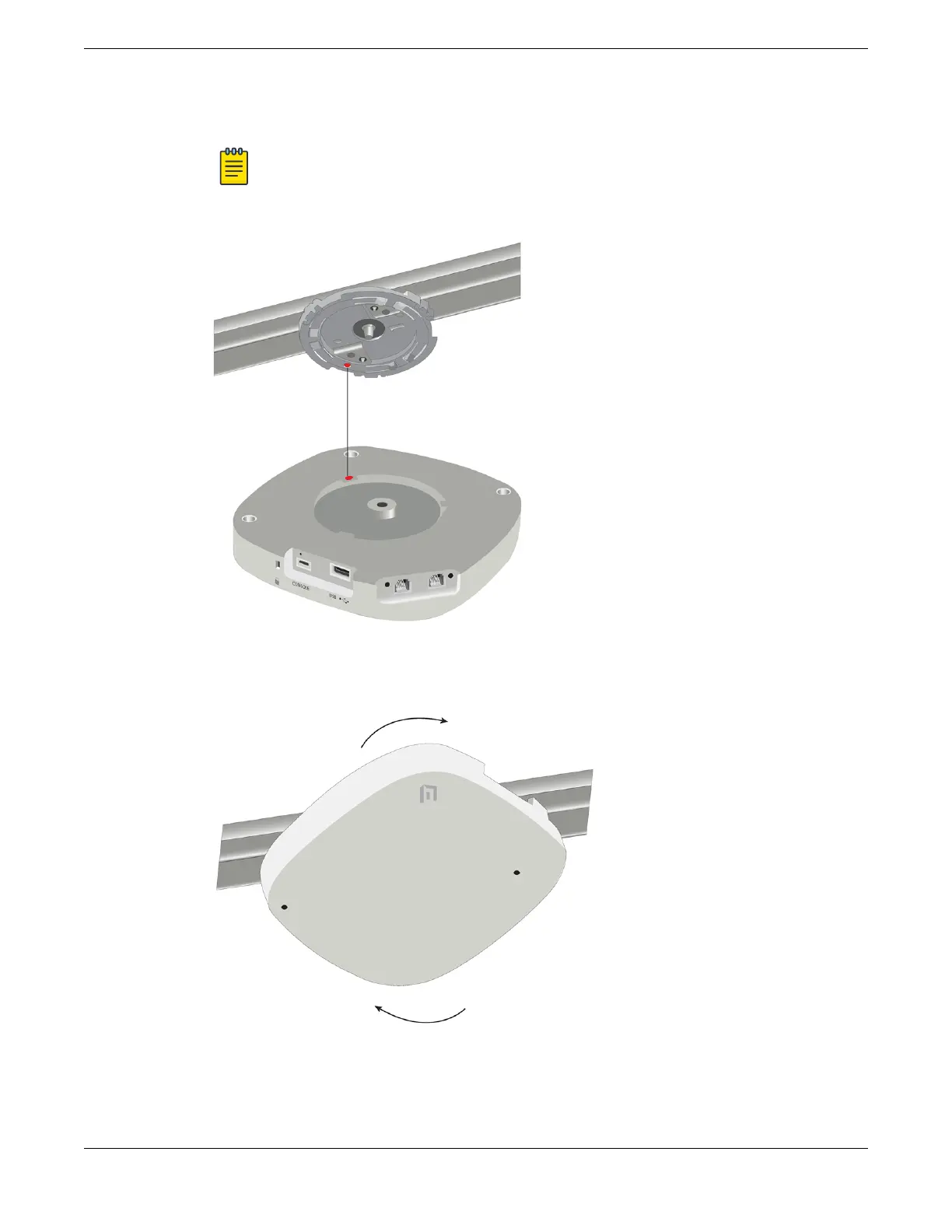

Figure 7: Access point alignment against the red dot on the -TB bracket
7. Press and rotate the access point 1/8th turn clockwise until it clicks into place on the accessory.
Figure 8: AP410C access point ceiling install
8. Attach the Cat6 RJ45 cable to the ETH0 or ETH1 port.
