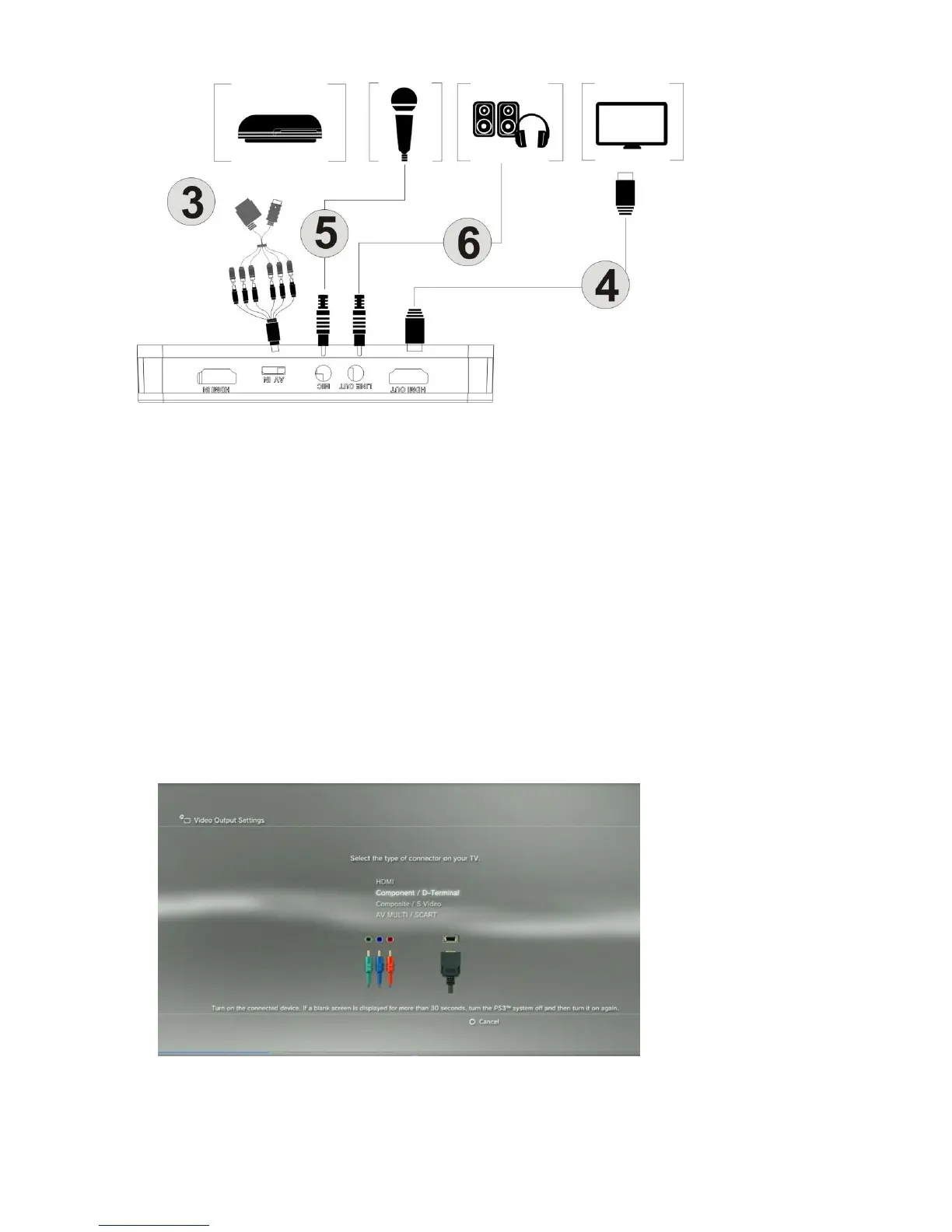

1, Connect power with DC adaptor
2, Use the adapter cable in the package to connect component (red, blue, green), just don’t mix the
red with the audio cable (the audio cable red and white will be separated with component)
3, With HDMI cable connect to monitor
4, Plug in an USB drive.
5, The “LINE OUT” is for connecting to speaker or earphone, it’s not necessary if you don’t need,
cause the HDMI output is also with audio output.
6, Connect a Microphone to the MIC port if you need record speak from microphone, it’s not
necessary if don’t need.
PS3 setting: For the Component input
Go to the settings---Video output settings, choose “Component/D-Terminal”:
At the resolutions setting, make sure the “1080P” option is NOT be ticked, otherwise some game
play (e.g. GT5) cannot be recorded by ezcap284:
