CONTROL UNIT 200MPS
1. WARNINGS
Before attempting any work on the control unit (connections,
maintenance), always turn off power.
Install, upstream of the system, a 10A differential thermal
breaker with tripping threshold of 0.03A
Always separate power cables from control and safety
cables (push-button, receiver, photocells, etc.). To avoid any
electrical disturbance, use separate sheaths or a screened
cable (with the screen earthed).
.
Power supply voltage 230V~ - 50HZ
Max. motor load 800 V
A
Accessories max. current 200MA
Operating ambient temperature
-20°C - +70°C
Protection fuses F1 =10A-250V F3 = 0,5A-250V
Function logics A, EP
Pause time
A
djustable with TR1
from 0 to 60 sec
Inputs on terminal-board
Open
, Close, Stop, Safety
devices in CH, Power supply
Outputs on terminal-board
Motor, flashing lamp,
2. TECHNICAL SPECIFICATIONS
CE DECLARATION OF CONFORMITY
Manufacturer: FAAC S.p.A.
Address: via Benini, 1 - 40069 Zola Predosa BOLOGNA - ITALY
Declares that:
The 200MPS control unit conforms to the essential safety requirements
of the following directives:
73/23/EEC and subsequent amendment 93/68/EEC.
89/336/EEC and subsequent amendments 92/31/EEC and 93/68/EEC
Additional note:
This product underwent tests in a typical uniform confi guration
(all products manufactured by FAAC S.p.A.).
Bologna, 13 December 2007
The Managing Director
A. Bassi

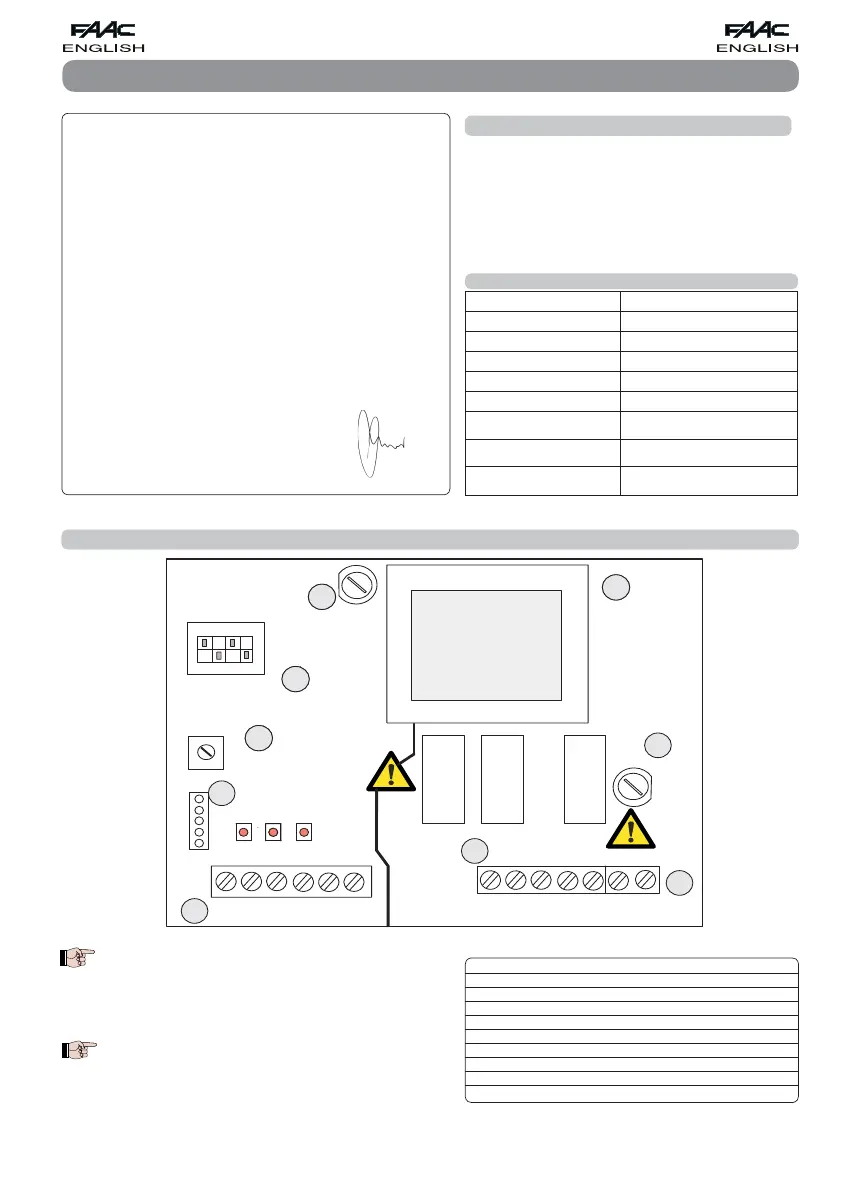

3. LAYOUT AND COMPONENTS
The 200MPS control board makes it possible to
pilot the gearmotors for rolling gates in FAAC series
226, 227, R180 and R280. Control of the travel limit
devices must be specifi ed on the motor. The board
is compatible with all FAAC command and safety
components.
A RP1 type single channel receiver can be con-
nected to the J3 connector, so that the OPEN fa-
cility of the automated system can be commanded
directly with a single channel radio control.
Fig. 1
Description of components
J1
inputs terminal board and power supply to accessories
J2 motor and flashing lamp outputs terminal-board
J3 connector for radio receiver (see Note)
J4 230Vac power supply terminal board
TR1
trimmer for adjusting pause time from 0 to 60 sec
.
DS1 programming microswitches
DL1,2,3 status signalling LEDs
TF1 transformer
F1 10A - 250V (motor protection)
F3 500mA 250 V (protection for accessories)
FAAC
200MPS
OP FSW STOP FAIL-SAFE
-
+
1
2
3
4
56
COM OP CL LAMP N L
7 8 9 10 11 12 13
ON
1 2 3 4
RADIO DECODER
230Vac
TR1 PAUSE
OPEN FSW STOP
