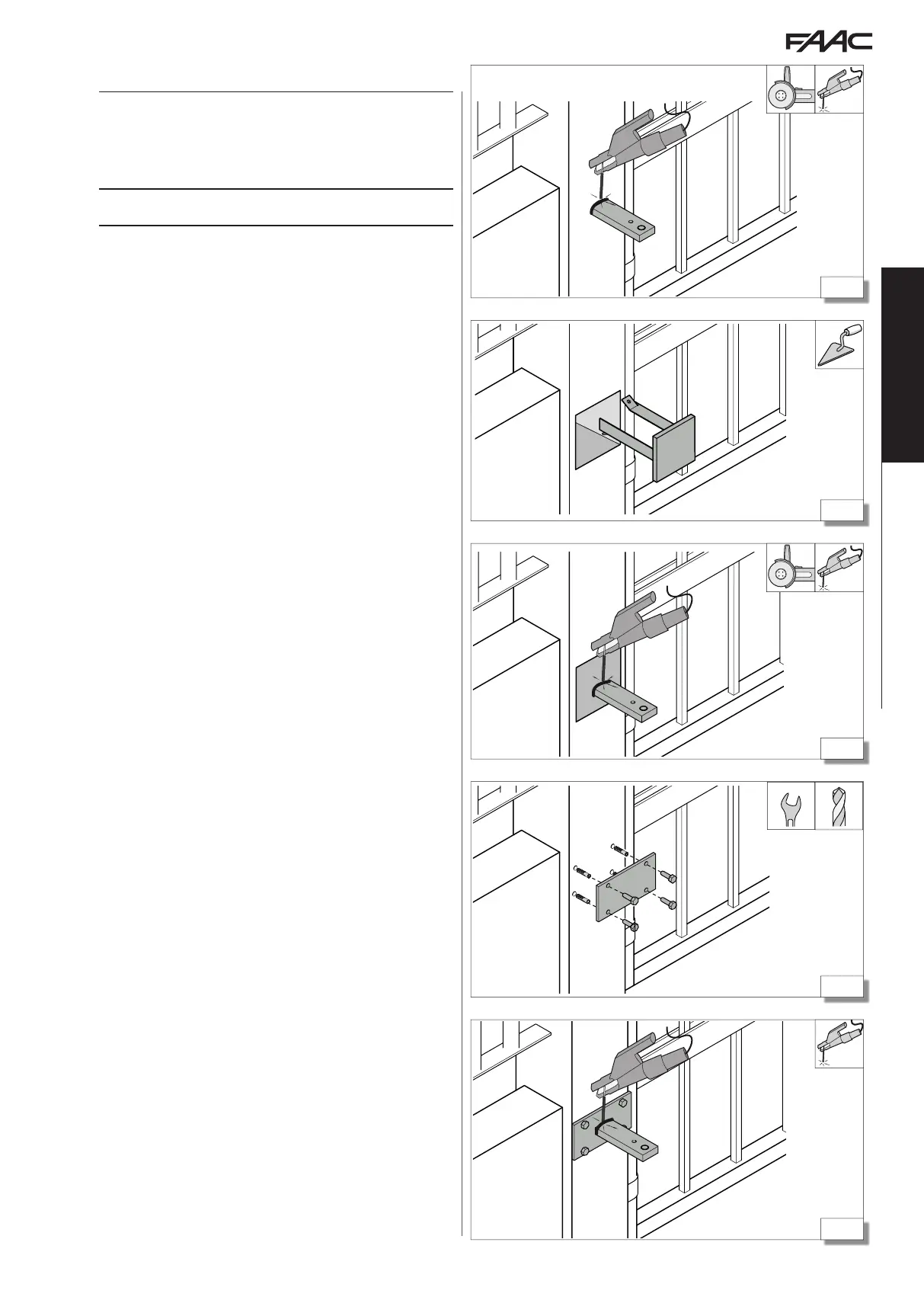

5.2 INSTALLING THE REAR BRACKET
!
The structure of the pillar must be suitable for fixing the actuator. If neces-
sary, create a solid support base to attach it to. It is the responsibility of
the installer to provide suitable fastenings for the applied loads. Welding
must be carried out in a workmanlike manner. Safety may be affected if it
is carried out badly.

Apply the measurements indicated (see tables  Measurements
400/400 L).
STEEL PILLAR
Weld the rear bracket arm horizontally to the pillar (11).
MASONRY PILLAR WITH PLATE TO EMBED
1. Embed the plate within the pillar (12).
2. Weld the rear bracket arm horizontally (13).
MASONRY PILLAR WITH SCREW-ON PLATE
1. Drill holes in the pillar and install the rear bracket plate (14). Use
dowels with suitable screws and fastening torque.
2. Weld the rear bracket arm horizontally onto the plate (15).
