FAAC 412 - Troubleshooting

22
2
17
16
15
14
12
11
8
18
10
3
6
7
13
4
5
9
1

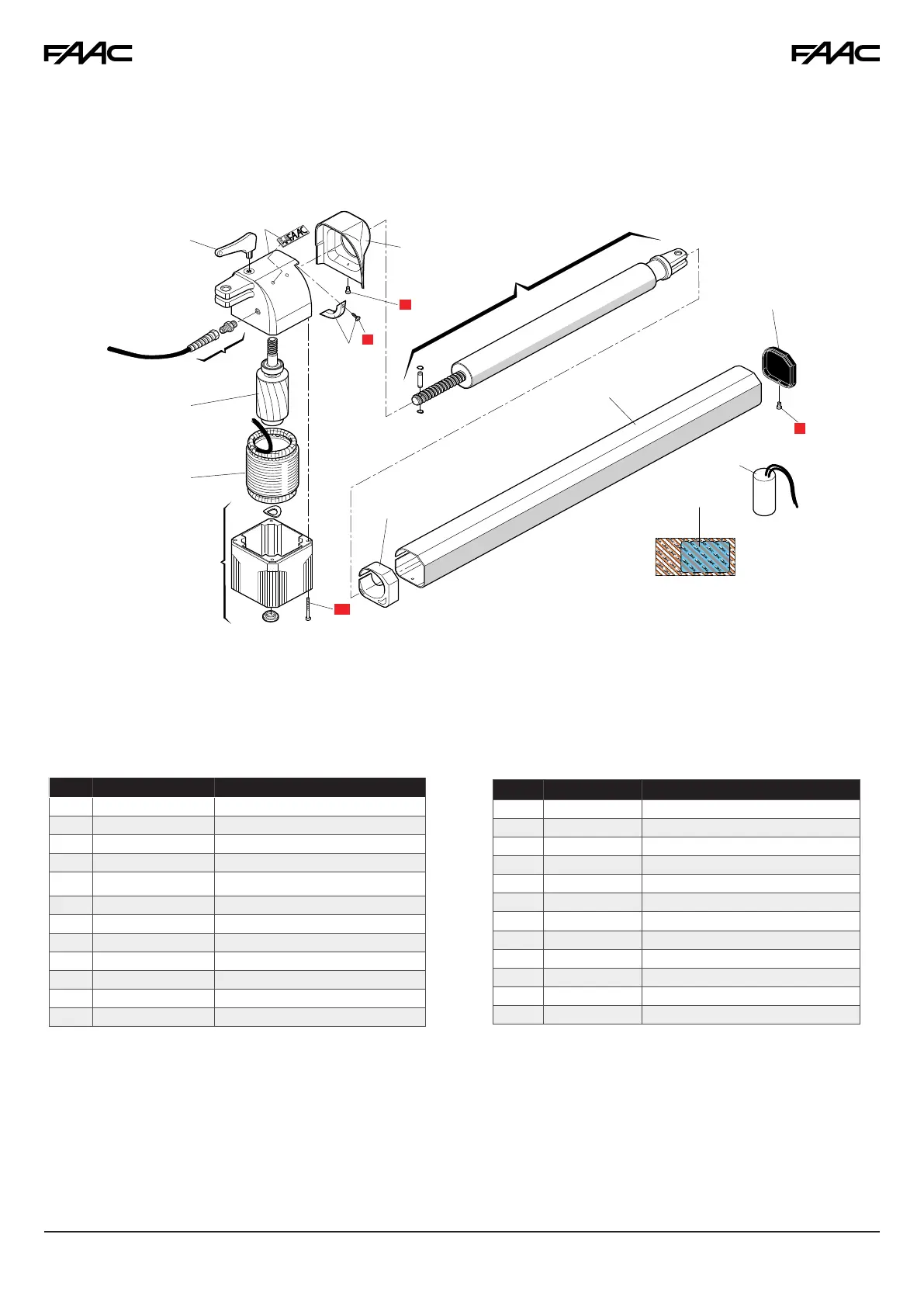

Part Part Number Description
01 799360 Motor Housing, SX Top Section
01 799359 Motor Housing, DX Top Section
02 713009 Manual Release Key, 412
03 7171345 Flange, Protective Cover,SX
03 7171335 Flange, Protective Cover,DX
04 n/a Self Tapping Screw (3.5 x 13mm)
05 n/a Self-Tapping Screw (5.5 x 15mm)
06 799358 Cylinder Collar
07 736060 Cylinder Assembly
08 727148 End Cap, Protective, SX
08 727147 End Cap, Protective, DX
09 n/a Self-Tapping Screw (3.5 x 9.5mm)
Part Part Number Description
10 2705 Capacitor for 115V (25uf)
10 2707 Capacitor for 220V (8uf)
11 7272795 Protective Cover
12 722298 Protective Cover Support
13 n/a Self Tapping Screw (5 x 18mm)
14 716074 Motor Housing, Bottom Section
15 746030 Stator (Motor) for 220V
15 746755 Stator (Motor) for 115V
16 746028 Rotor (Motor)
17 710919 Strain Relief
18 390009 Skin Pack (1 pack = 2 operators)
n/a 6020082 Plug for Manual Release
6. SPARE PARTS
