6
ENGLISH
6 ASSEMBLY

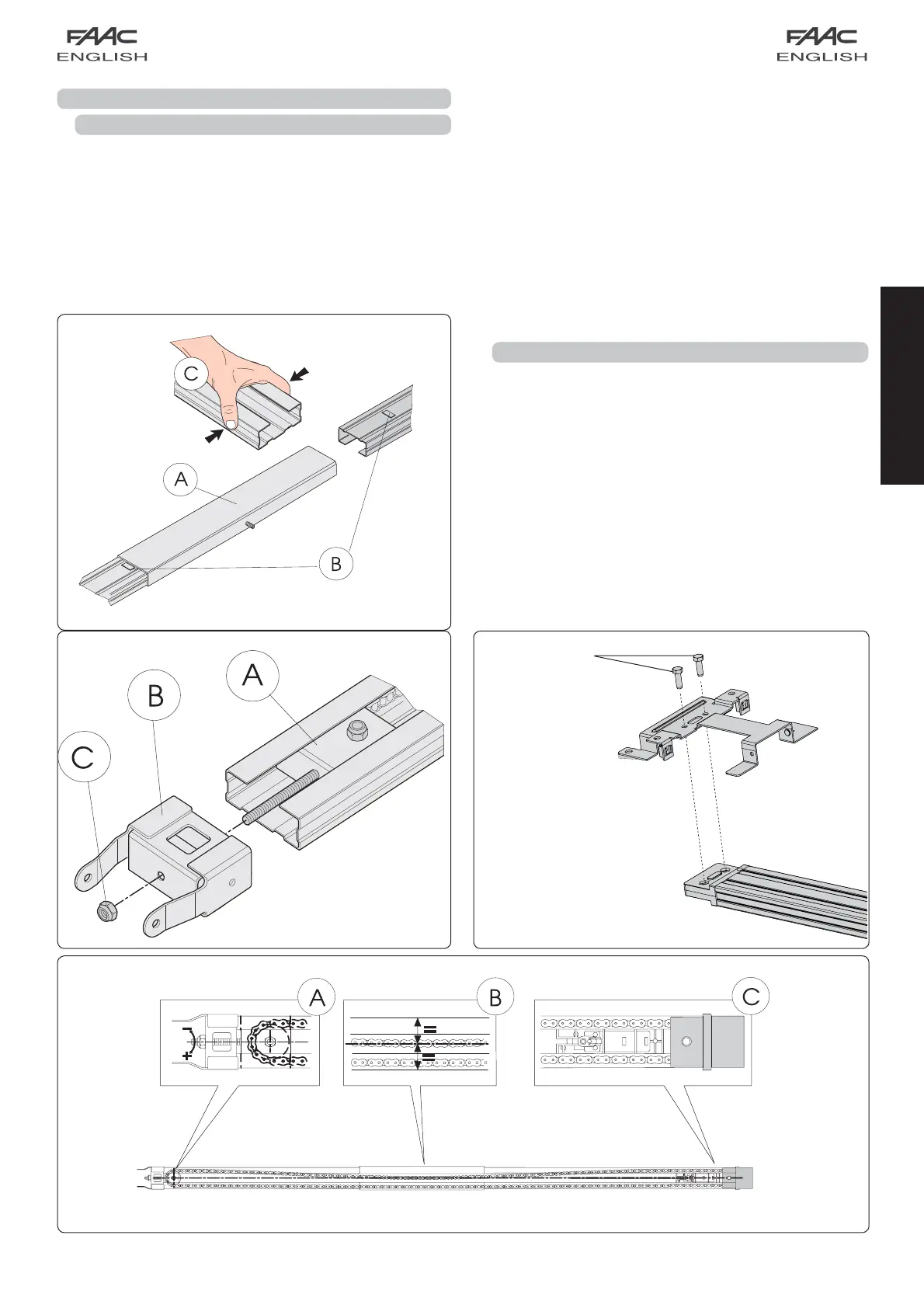

6.1 Sliding guide
If you use a sliding guide in two pieces, you must assemble it,
as explained below. If you have a pre-assembled guide, go
on to paragraph 6.2.
1) Assemble the two pieces of the sliding guide, fitting them
in the central joint (Fig. 6 ref. A) until they come to a stop
against the metal reference reliefs (Fig. 6 ref. B). To facilitate
engaging the sliding guide, we advise you to insert it in the
central joint, compressing it as shown in Fig. 6 ref. C. Do not
use tools which could deform the guide or joint.
2) Slide the transmission unit (Fig.7 ref. A) along the whole sliding
guide, until it is near the front terminal, the one opposite the
drive coupling.
3) Assemble the front fitting (Fig. 7 ref. B) to the transmission unit
(Fig. 7 ref. A).
4) Apply slight tension to the chain, tightening the nut (Fig. 7
ref. C.).
5) Place the sliding guide on the side (Fig. 8).
6) Push the carriage toward the drive clutch unit (Fig.8
ref. C).
7) Adjust the tensioner (fig. 8 ref. A) so that the central zone of
the loop, formed by the top branch of the chain, coincides
with about the mid-point of the sliding guide (Fig. 8 ref. B)
Attention: too much tension can cause damage to the
transmission and drive clutch units.
6.2 Rear fitting
Before securing the sliding guide to the ceiling, assemble the
rear fitting in the seat of the drive clutch unit and fasten the
screws as shown in Fig. 9 ref. .
Fig. 6
Fig. 8
Fig. 7 Fig. 9
