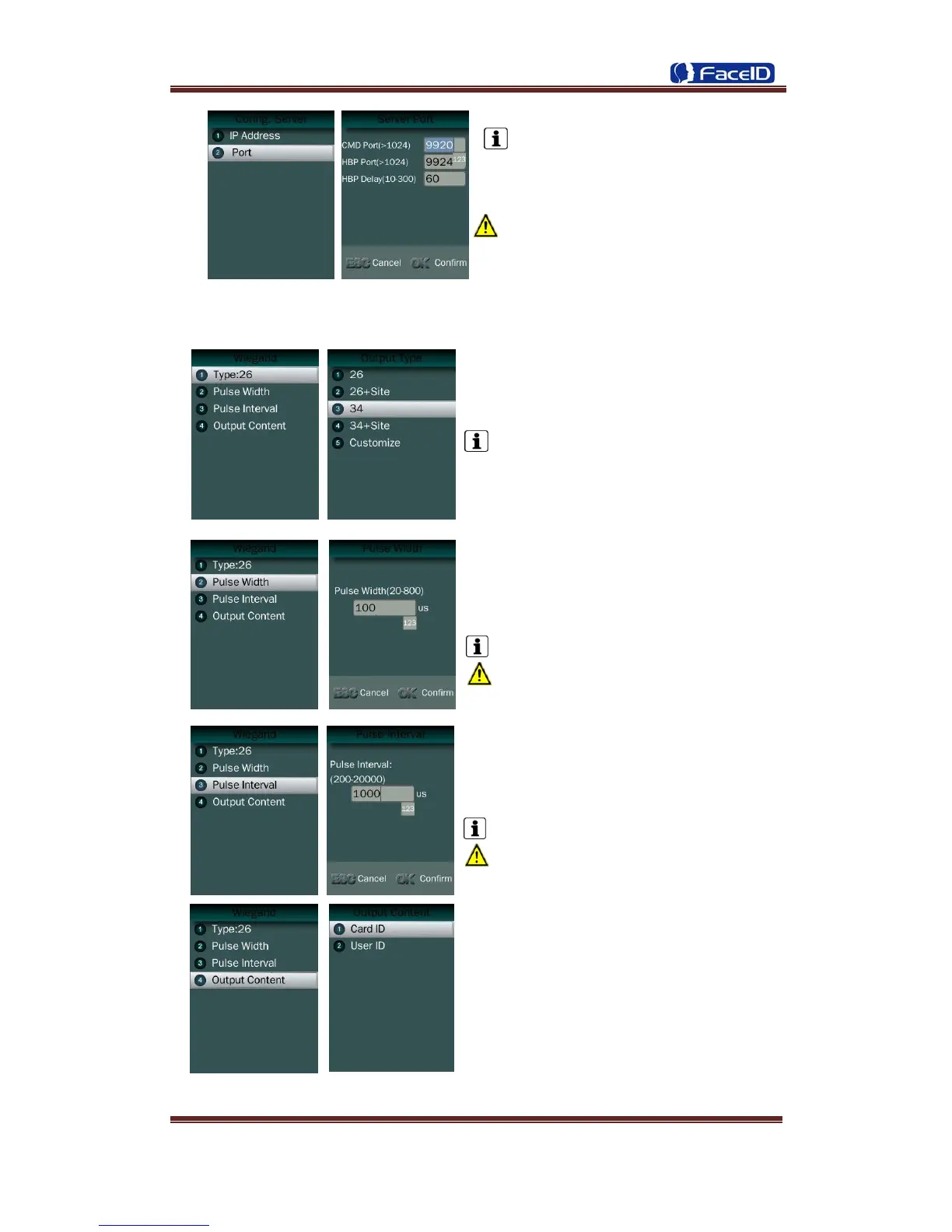

The default CMD/HBP port is
9920/9924.
The default HBP Delay is 60.
The port parameters have to more than
1024. The HBP delay range is 10~300.
 Communication -Wiegand Output
 Wiegand Output-Type: System supports
standard Wiegand protocol output on the follow list.
The default type is Wiegand output 26.





 Wiegand Output-Pulse Width
Set proper pulse width for wiegand output to
match the external wiegand input terminal.
The default Pulse Width is 100 us.
The pulse width range is 20~8000 us.
 Wiegand Output-Pulse Interval
Set proper pulse interval for wiegand output to
match the external wiegand input terminal.
The default Pulse Interval is 1000 us.
The interval range is 200~20000us.
 Wiegand Output-Content
The user can set Weigand output content with
Card ID or User ID.
 Attendance
